Z1-18KE02 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) ENGINE AND FUEL SYSTEMS Parts Diagram

Zero-Turn Mower, Drive Unit Only

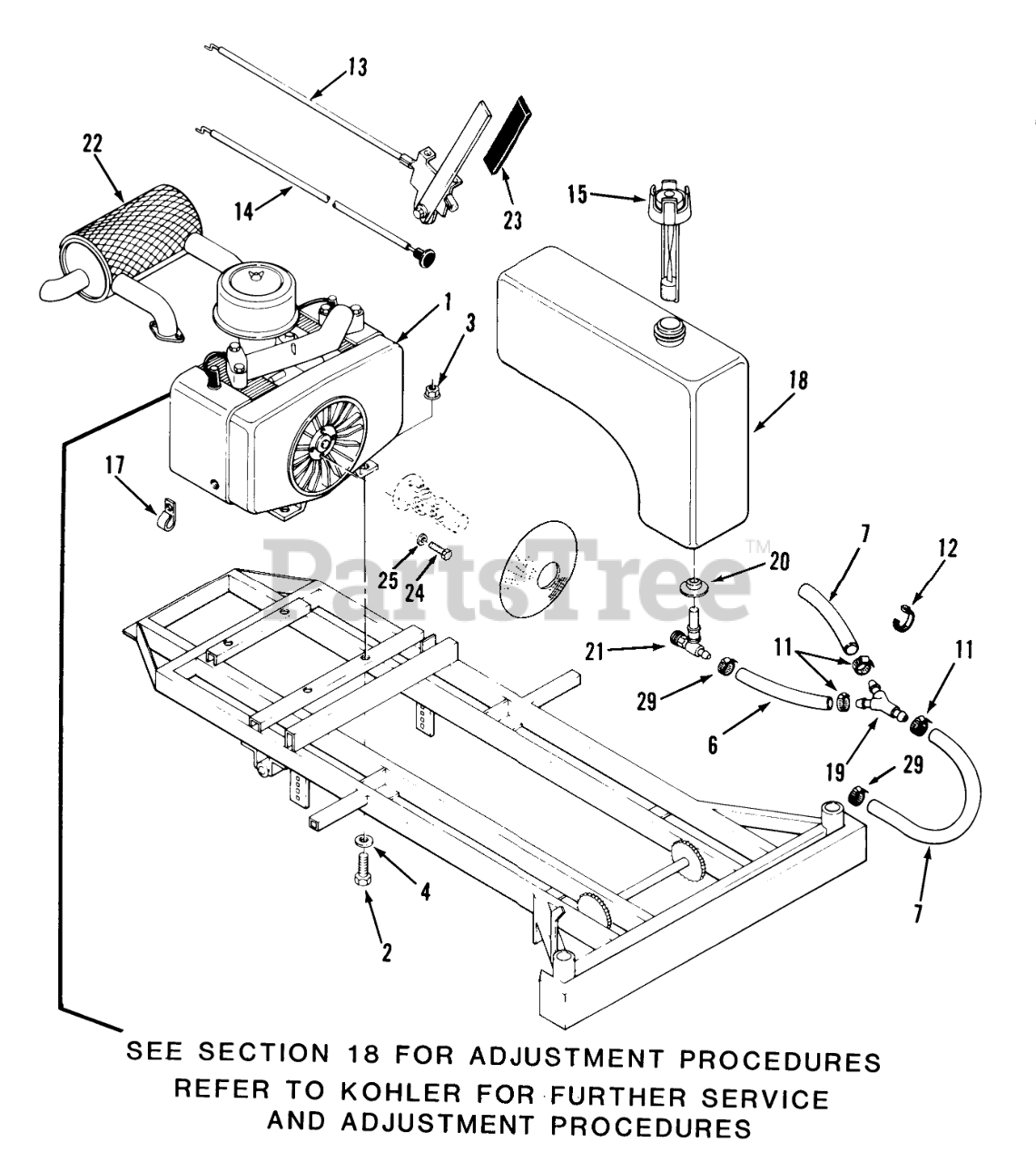

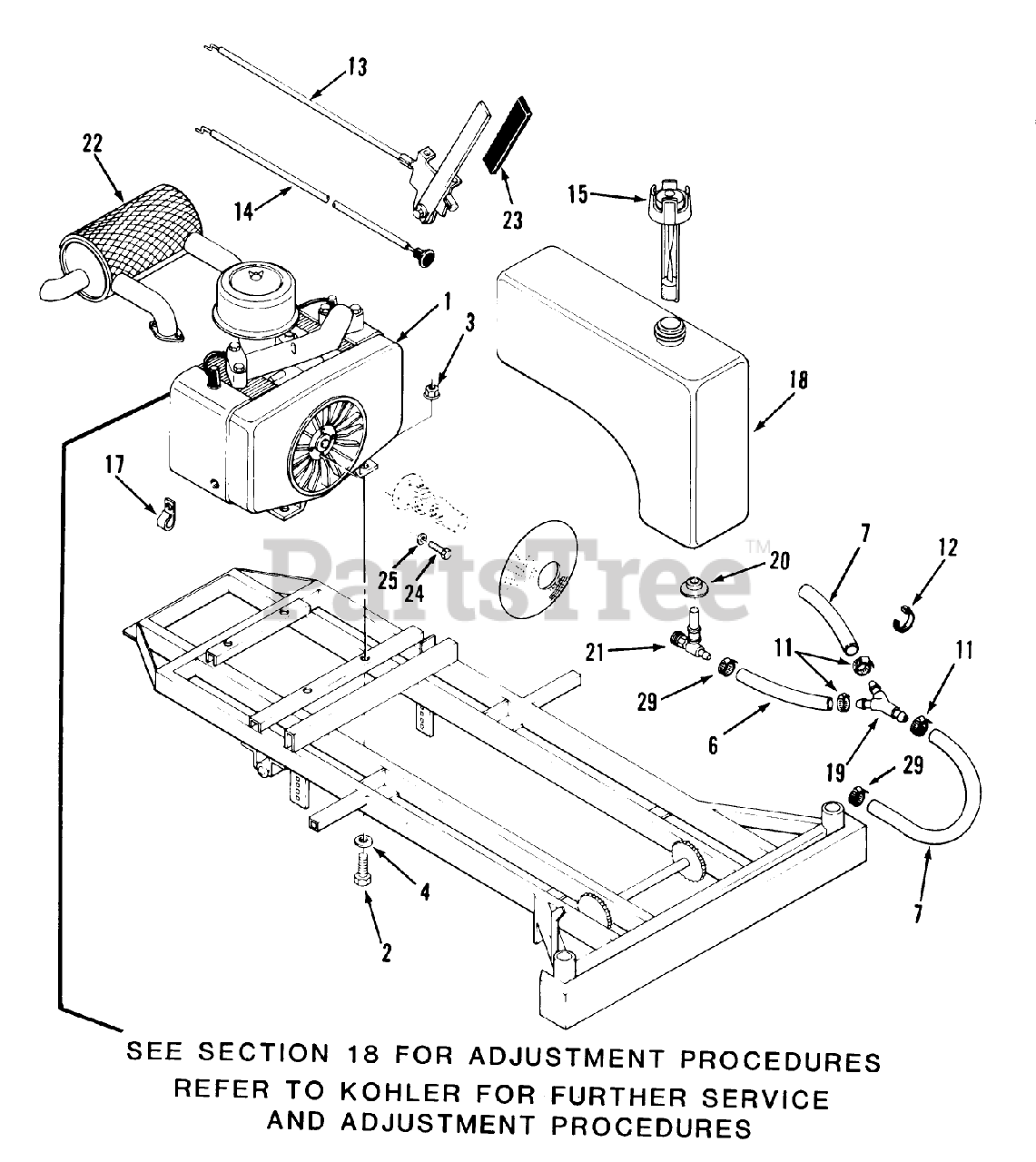

ENGINE AND FUEL SYSTEMS Parts Diagram

  • Title

1

Toro 112000

Engine-18 HP Kohler (M18S Spec. No. 24529)

$

$

Currently unavailable

1

Toro 12393

6802 EATON ROTARY T

$3.23

$

Usually ships in 3-6 days

0

2

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

3

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

4

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

6

Toro 111914

Hose5"
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

7

Toro 111915

Fuel Line (32")
(Superseded to 110521)

$

$

Not available

11

Toro 101349

CLAMP
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

12

Toro 100571

PLASTIC TIE

$

$

Not available

13

Toro 112938

Throttle Cable (27")
(Superseded to 113695)

$

$

Not available

14

Toro 111890

Choke Cable (27")

$

$

Not available

15

Toro 111896

Fuel Gauge Cap w/o screw vent
(Superseded to 113648)

$

$

Not available

15

Toro 111897

Fuel Gauge Cap w/screw vent
(Superseded to 113648)

$

$

Not available

17

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

18

Toro 111895

Fuel Tank
(Superseded to 78-3270)

$

$

Not available

19

Toro 111879

FITTING-FUEL 45-Y

$

$

Not available

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

21

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

22

Toro 111898

Muffler

$

$

Not available

23

Toro 111922

GRIP BRAKE20258-K

$

$

Not available

24

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

25

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

29

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available
