Z1-18KE01 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1986) TRANSMISSION DRIVE LINKAGE Parts Diagram

Zero-Turn Mower, Drive Unit Only

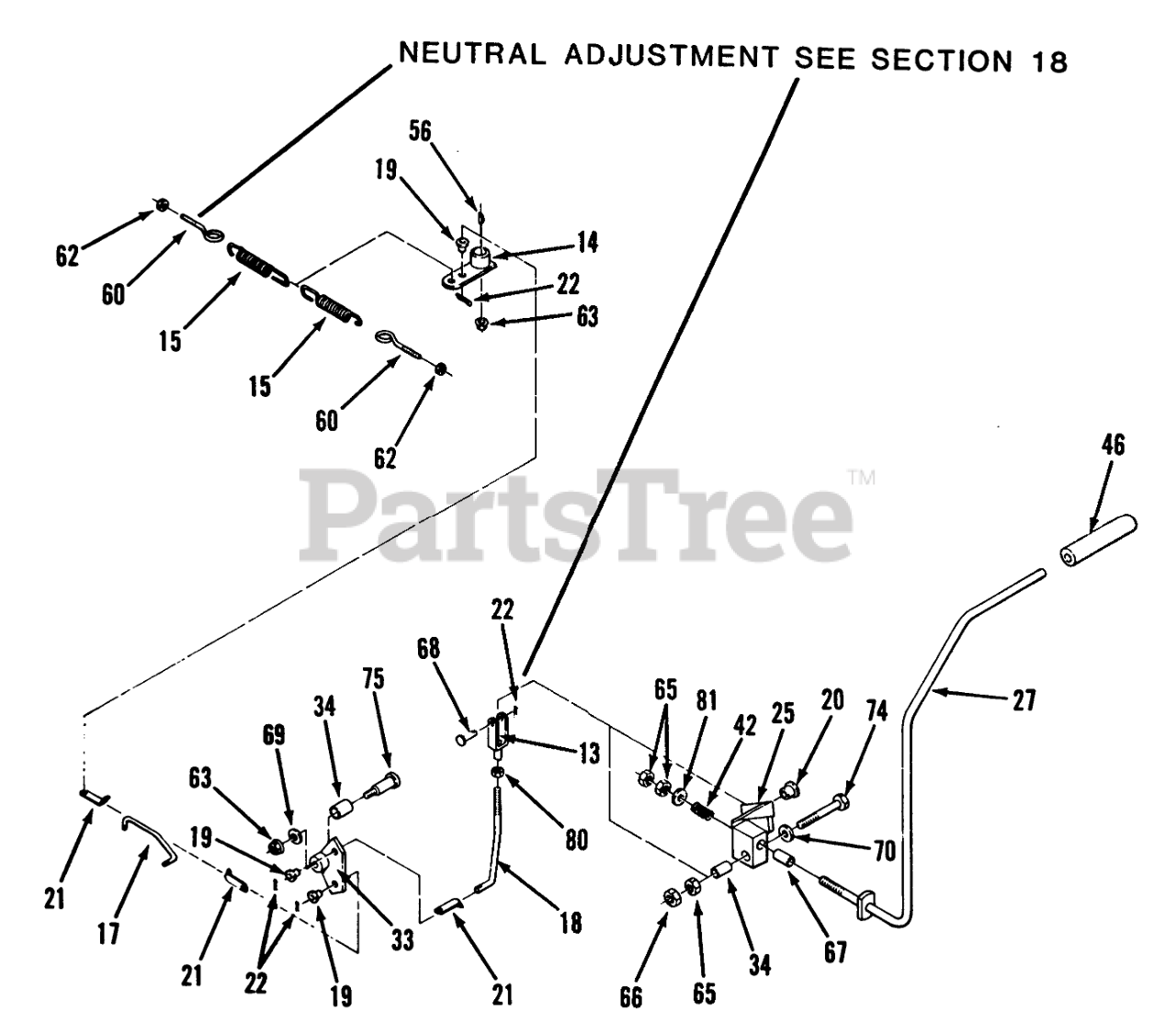

TRANSMISSION DRIVE LINKAGE Parts Diagram

  • Title
13

Toro 20214

Threaded Yoke

$

$

Currently unavailable

14

Toro 20216

Hydro Control Arm

$

$

Currently unavailable

15

Toro 20217

Spring

$

$

Currently unavailable

17

Toro 20218

Lower Drive Linkage RH

$

$

Currently unavailable

Toro 20219

Lower Drive Linkage LH
(Superseded to 83-4170)

$

$

Not available

18

Toro 20220

LINKAGE-UPPER DRIVE

$

$

Not available

19

Toro 20221

Nylon Bushing .296
(Superseded to 113510)

$

$

Not available

20

Toro 20222

Nylon Bushing 5/16
(Superseded to 113509)

$10.99

$

In Stock, only 1 left!

0

21

Toro 20223

BACKING CLIP

$

$

Not available

22

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

25

Toro 20229

STEERING LEVER LH

$

$

Not available

Toro 20230

STEERING LEVER RH

$

$

Not available

27

Toro 20231

Steering Lever LH
(Superseded to 113653)

$

$

Not available

Toro 20232

Steering Lever RH
(Superseded to 113652)

$

$

Not available

33

Toro 20237

PIVOT BLOCK

$

$

Not available

34

Toro 20238

BUSHING

$

$

Not available

42

Toro 20252

Spring
(Superseded to 113632)

$

$

Not available

46

Toro 112394

GRIP-HANDLE

$

$

Not available

56

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

60

Toro B100

Eye Bolt
(Superseded to 113688)

$

$

Not available

62

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

63

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

65

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

66

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 20+

0

67

Toro 20276

Bronze Bushing
(Superseded to 113631)

$

$

Not available

68

Toro P101

PIN CLEVIS 5/16X1
(Superseded to 283-61)

$1.99

$

In Stock, only 2 left!

0

69

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

70

Toro W110

WASHER 7/16 SAE

$

$

Not available

74

Toro 908065

HEX HD CAP SCREW

$

$

Not available

75

Toro B116

Shoulder Bolt 1/2-13 x 1 3/4
(Superseded to 112952)

$

$

Not available

80

Toro 915001

Nut-Lock
(Superseded to 3219-2)

$0.99

$

Usually ships in 3-6 days

0

81

Toro 920041

Washer
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0
