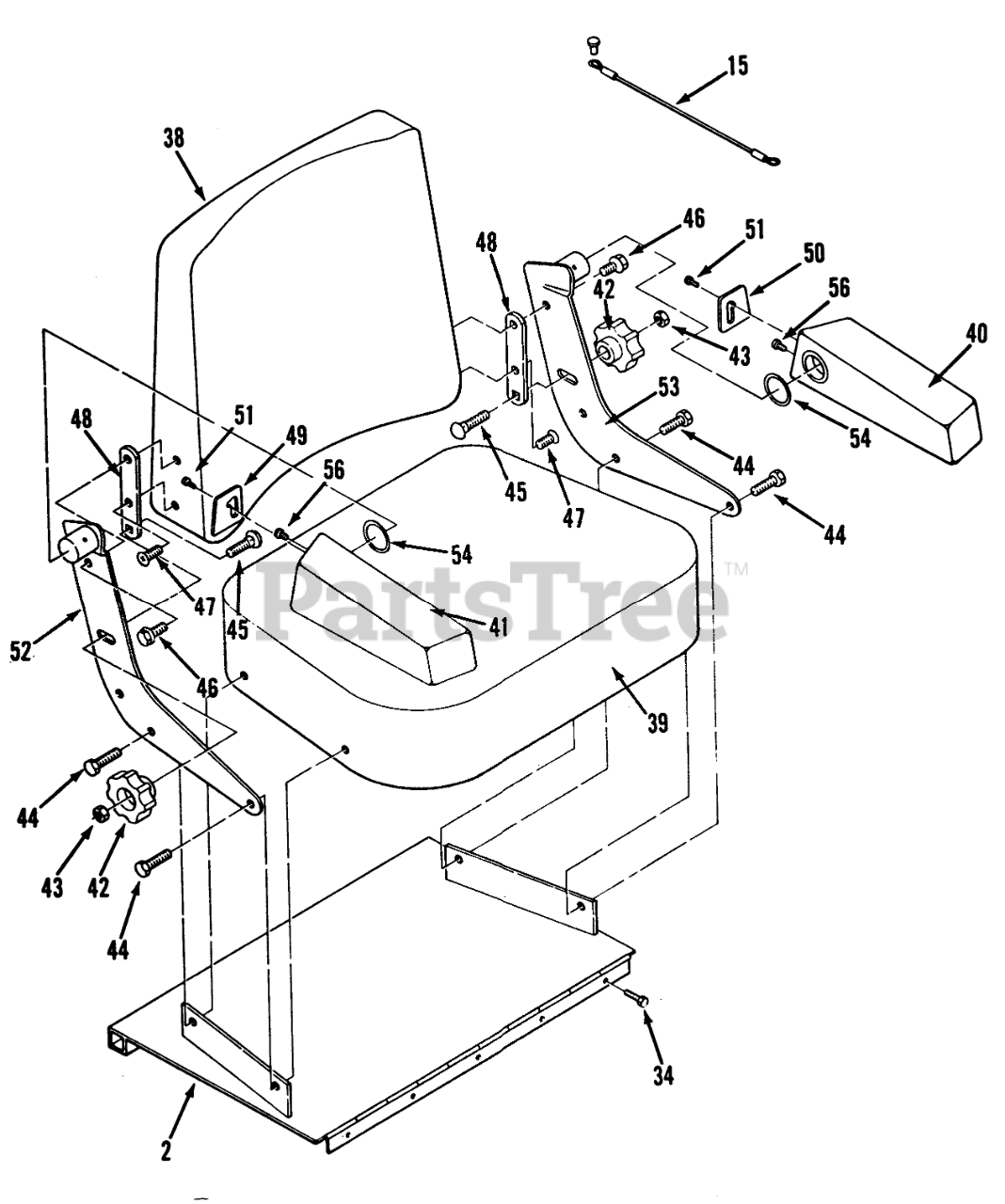

Z1-18KE01 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1986) SEAT Parts Diagram

Zero-Turn Mower, Drive Unit Only

SEAT Parts Diagram

  • Title

Toro 40100

Seat Assy (includes all items except 2, 15 & 34).

$

$

Not available

2

Toro 40201

Seat Mounting Bracket

$

$

Not available

15

Toro 40218

Seat Cable
(Superseded to 115850)

$

$

Not available

34

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

38

Toro 40101

Seat Back

$

$

Not available

39

Toro 40102

Seat Bottom

$

$

Not available

40

Toro 40103

ARM REST LH

$

$

Not available

41

Toro 40104

ARM REST RH

$

$

Not available

42

Toro 40105

Knob-Lumbar Control

$

$

Not available

43

Toro 40106

LOCK NUT

$

$

Not available

44

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

45

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

46

Toro 960201

BOLT

$

$

Not available

47

Toro 908848

Screw-Phillips Hd
(Superseded to 908849)

$

$

Not available

48

Toro 40223

Lumbar Friction Plate

$

$

Not available

49

Toro 40224

ARM REST PLATE RH

$

$

Not available

50

Toro 40225

ARM REST PLATE LH

$

$

Not available

51

Toro S102

SCREW PAN HD 10-16X5

$

$

Not available

52

Toro 40226

BACK SUPT LH

$

$

Not available

53

Toro 40227

Back Support LH

$

$

Not available

54

Toro W114

WASHER

$

$

Not available

56

Toro 911037

SHCS 1/4-20 X 1/2

$

$

Not available
