Z1-18KE01 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1986) PTO DRIVE Parts Diagram

Zero-Turn Mower, Drive Unit Only

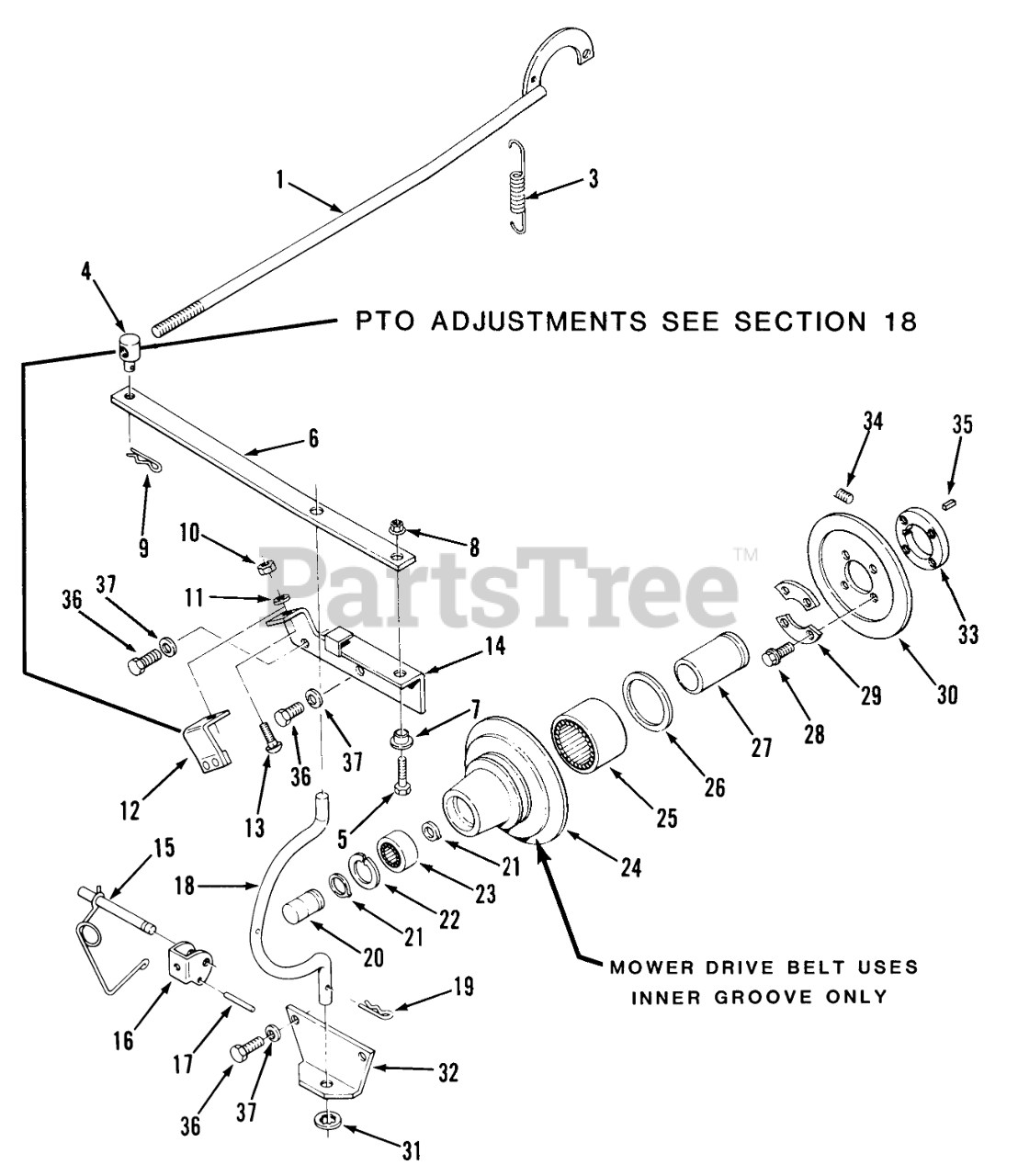

PTO DRIVE Parts Diagram

  • Title
1

Toro 111885

PTO ROD 30209K

$

$

Not available

3

Toro 20217

Spring

$

$

Currently unavailable

4

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

5

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

6

Toro 111884

PTO ENG BRKT 30210K

$

$

Not available

7

Toro 104859

SPACER-LIFT LINK

$51.99

$

Usually ships in 3-6 days

0

8

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

9

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

10

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

11

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

12

Toro 110665

ASM-Bracket
(Superseded to 94-6652)

$45.99

$

In Stock, only 1 left!

0

13

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

14

Toro 111875

Engine Bracket
(Superseded to 112939)

$

$

Not available

15

Toro 111314

LOCKING PIN ASM

$27.99

$

In Stock, only 1 left!

0

16

Toro 110664

CLEVIS B

$55.99

$

In Stock, only 3 left!

0

17

$1.99

$

In Stock, Qty 8

0

18

Toro 111318

ROD-HOUSING

$

$

Not available

19

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

20

Toro 102872

SHAFT-PTO

$31.99

$

In Stock, only 1 left!

0

21

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

22

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 7

0

23

Toro 109842

BEARING-BALL

$31.99

$

In Stock, only 1 left!

0

24

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

25

Toro 106769

BRG-NEEDLE OPEN END

$60.99

$

Usually ships in 3-6 days

0

26

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

27

Toro 6658

RACE-BEARING

$

$

Not available

28

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

29

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

30

Toro 111238

Clutch Plate & Facing
(Superseded to 94-6650)

$182.99

$

Usually ships in 3-6 days

0

31

Toro 106695

RING-REINFORCED CIRC

$2.49

$

In Stock, only 4 left!

0

32

Toro 111876

Rod Support Housing

$

$

Not available

33

Toro 7466

PULLEY

$184.99

$

Usually ships in 3-6 days

0

34

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

35

$2.49

$

In Stock, only 2 left!

0

36

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

37

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0
