Z1-12 - Husqvarna Z Grass Catcher (2003-10) Spindle Drive Assembly (Part 2) Parts Diagram

Z Grass Catcher

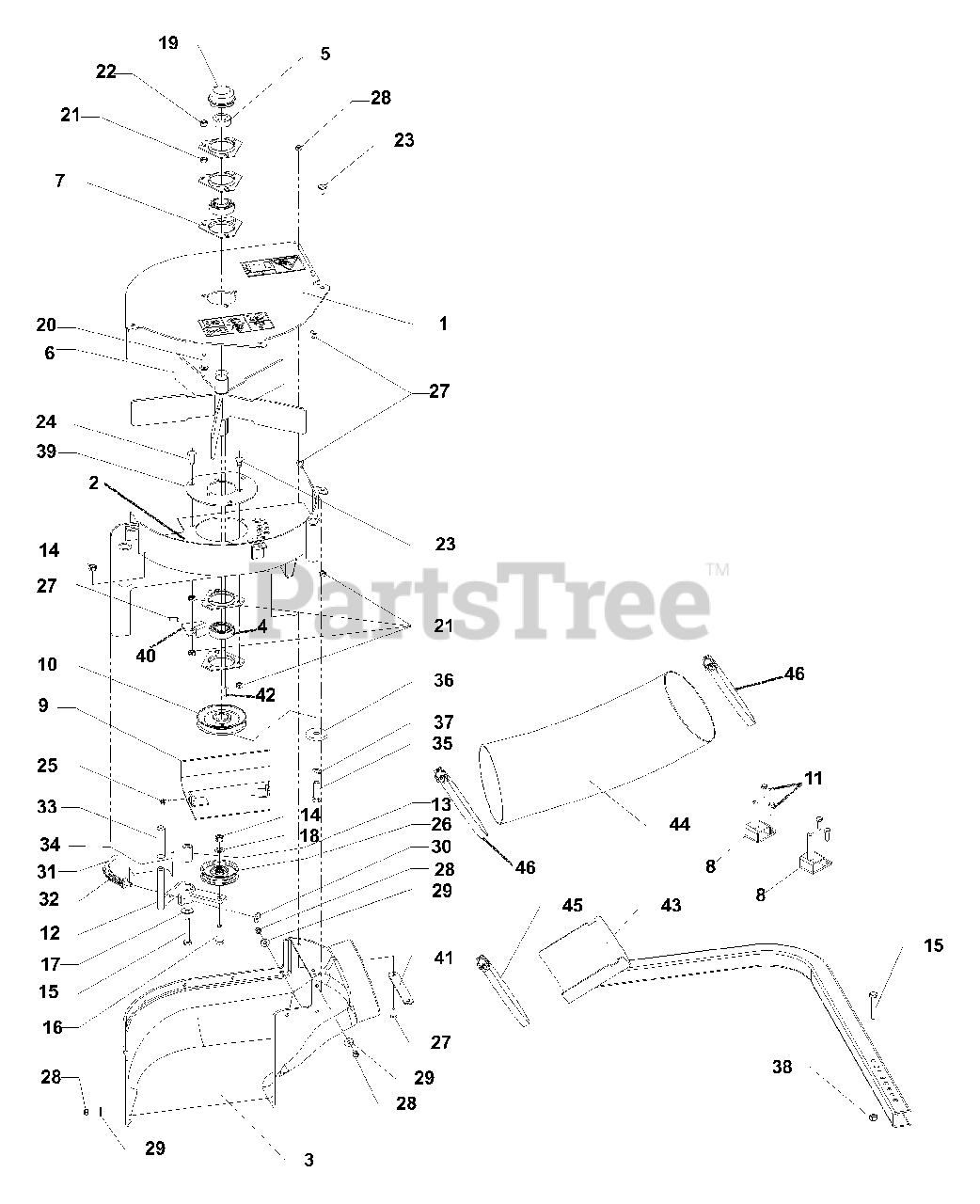

Spindle Drive Assembly (Part 2) Parts Diagram

  • Title

1

Husqvarna 539106752

FAN COVER W/DECALS
(Superseded to 539111331)

$

$

Not available

2

Husqvarna 539108941

UPPER HOUSING

$485.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539109900

LOWER HOUSING

$182.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106786

BEARING W/O COLLAR

$54.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106786

LOCKING COLLAR

$54.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106707

FAN WLDMT.
(Superseded to 539111332)

$

$

Not available

7

Husqvarna 539102691

FLANGETTE

$

$

Not available

8

Husqvarna 539108944

BLOWER PIN WELDMENT

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108301

SHEAVE FLOOR

$61.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539106713

SHEAVE, 4"

$62.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976941

HCS 3/8-16 X 1 1/4

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 539106715

IDLER ARM

$42.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990546

NUT 3/8 CTR. LOCK

$

$

Not available

15

Husqvarna 539990629

HCS 3/8 X 2.25
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990655

HCS 3/8 X 1.50

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990122

WASHER 3/8 SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539100472

RHSNB 5/16 X 1.25

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990184

NUT 5/16 CTR. LOCK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990799

RHSNB 5/16 X .625 SHORT NECK
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990208

RHSNB 5/16 X 1.00

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990362

SCREW 1/4 X .625 SELF TAP

$4.99

$

In Stock, Qty 12

0

26

Husqvarna 539106721

IDLER

$31.99

$

In Stock, only 2 left!

0

27

Husqvarna 539990074

RHSNB 1/4 X .75 SHORT NECK
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976978

NUT 1/4 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

30

Husqvarna 539990188

WASHER 5/16 FLAT SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

31

Husqvarna 539106801

SPRING ROD

$121.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539106720

SPRING

$27.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101050

VINYL GRIP

$3.99

$

In Stock, only 4 left!

0

34

Husqvarna 539990037

COTTER PIN 3/32 X .750

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539100141

HCS 7/16F X 1.5

$

$

Not available

36

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

37

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

38

Husqvarna 539976979

NUT 3/8 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539106809

BEARING PLATE

$15.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539106811

BELT GUIDE

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539106812

BACKING

$6.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539102067

KEY 1/4 X .75 SQ.

$6.49

$

In Stock, only 4 left!

0

43

Husqvarna 539106751

SUPPORT

$80.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539106748

HOSE

$461.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539097076

HOSE CLAMP

$8.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539109901

OVER CENTER BAND

$78.99

$

In Stock, only 1 left!

0
