Z1-12 - Husqvarna Z Grass Catcher (2003-10) Drive Kit Assembly Parts Diagram

Z Grass Catcher

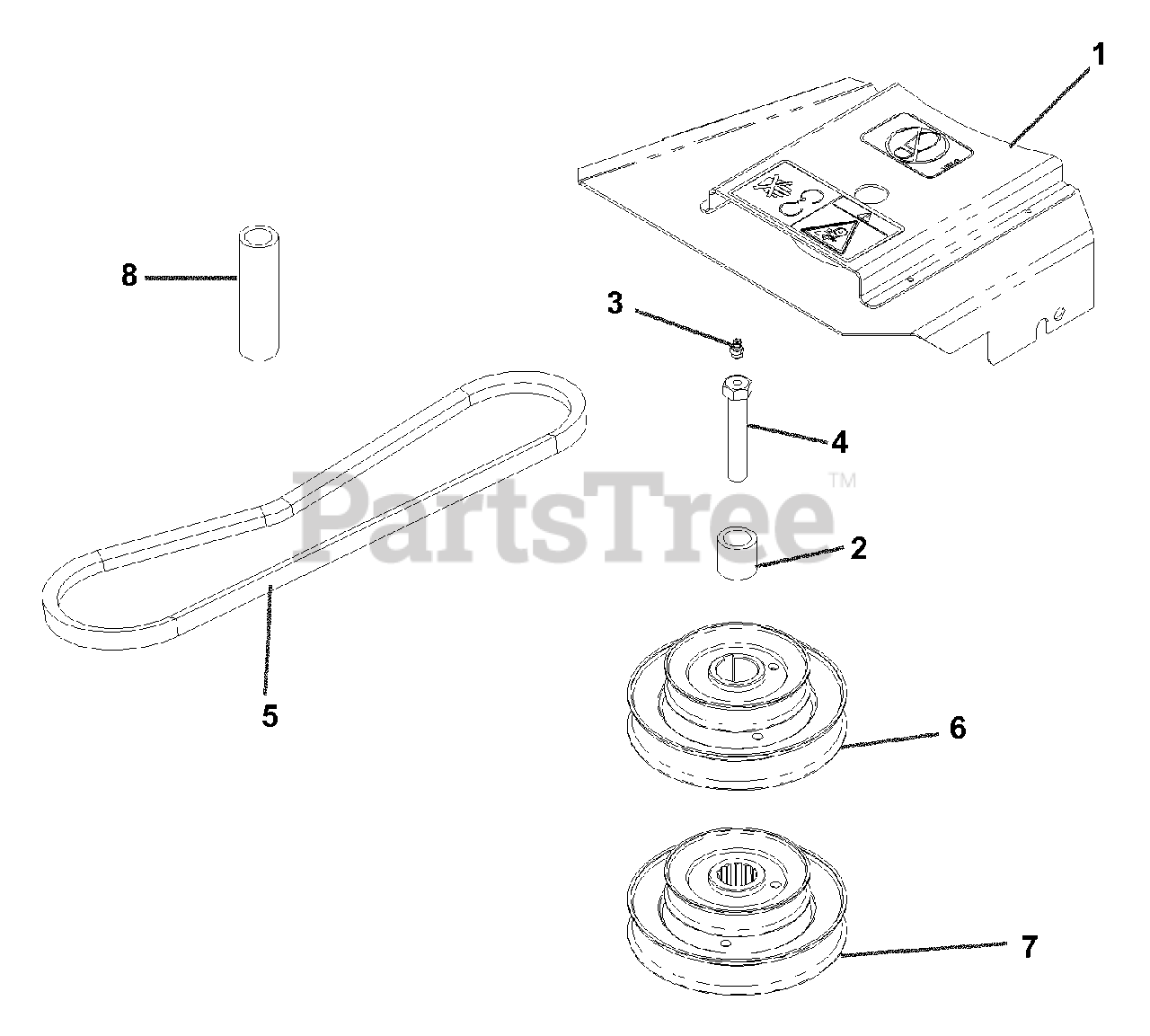

Drive Kit Assembly Parts Diagram

  • Title

1

Husqvarna 539108950

42 SHIELD

$56.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539108953

48 SHIELD
(Superseded to 539111254)

$94.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539108958

52 SHIELD

$60.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539108959

61 SHIELD

$84.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539106739

SPACER

Note: USED ON KEYED SHAFT ASSEMBLIES ONLY.

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 539108951

HCS 7/16 X 2.5, SPEC.
(Superseded to 539112138)

$40.99

$

In Stock, only 1 left!

0

5

Husqvarna 539106723

BELT-42

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106724

BELT-48

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106725

BELT-52

$30.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106726

BELT-61

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106744

STACKED SHEAVE 42-48

$

$

Not available

6

Husqvarna 539106745

STACKED SHEAVE 52

$70.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106746

STACKED SHEAVE 61

$

$

Not available

7

Husqvarna 539108946

DOUBLE HEX STACKED SHEAVE 42-48

$85.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539108947

DOUBLE HEX STACKED SHEAVE 52

$85.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539108948

DOUBLE HEX STACKED SHEAVE 61

$

$

Not available

8

Husqvarna 539106787

STOP -

Note: USED ON 42" & 48" ONLY

$7.99

$

Usually ships in 3-10 days

0
