Z-Wing 48 (53AI5BBY750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Lift Assembly Version 2 Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

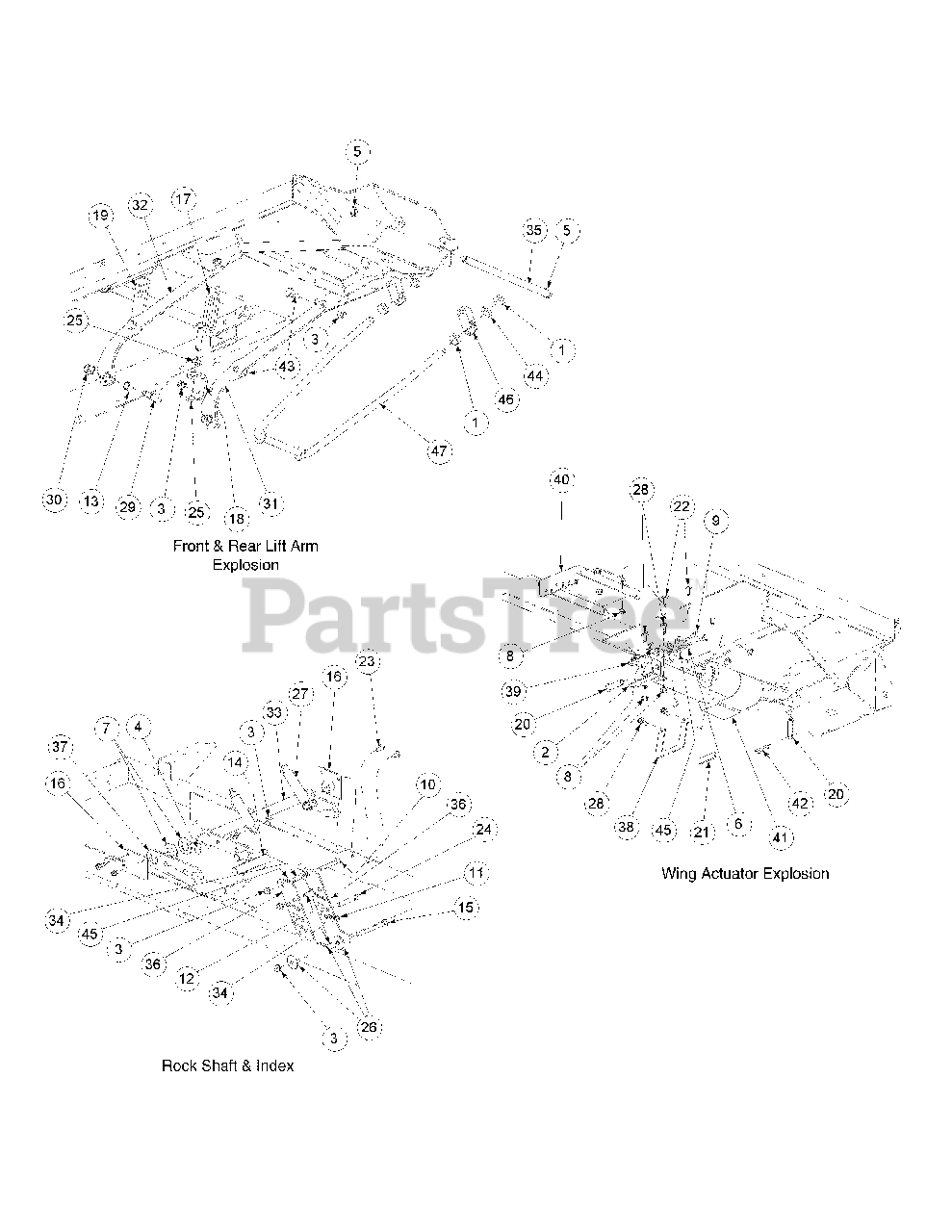

Lift Assembly Version 2 Parts Diagram

  • Title

1

Cub Cadet 00011807

Hex Nut, 5/8-11

$

$

Not available

2

Cub Cadet 02000877

Cable Bracket

$

$

Not available

3

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00030276

Carriage Bolt 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00060018

Cotter Pin, 3/16 x 1-1

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00071691

Spacer, Control Rod

$11.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-0250

Washer

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 00013733

Shoulder Bolt, 3/8 x 3/8

$

$

Not available

10

Cub Cadet 01001928

Carriage Bolt 3/8-16 x 2.50

$

$

Not available

11

Cub Cadet 01003537

Cotter Pin, .148 x 3.00

$

$

Not available

12

Cub Cadet 01004118

Shoulder Screw, .50 OD x 0.27
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

13

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

14

Cub Cadet 01007561

Lift Handle Grip

$

$

Not available

15

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

16

Cub Cadet 01008477P

Lift Hub Assembly

$

$

Not available

17

Cub Cadet 02000833P

Upper Link Lift Assembly, Left Hand

$51.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01008183P

Lower Lift Bracket, Left Hand

$

$

Not available

19

Cub Cadet 01008186P

Link Lift PLate, Right Hand

$

$

Not available

20

Cub Cadet 01008203

Clevis Pin, .500 Dia. x 1.75 Lg.

$

$

Not available

21

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.99

$

In Stock, only 3 left!

0

23

Cub Cadet 01008620

Self Tapping Screw, 5/16-18 x 3/4
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01008652P

Clevis Pin, .438 Dia. x 2.625 Lg.

$

$

Not available

25

Cub Cadet 01008658

Jam Nut, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

26

Cub Cadet 01009253

Washer, 5/16-18
(Superseded to 936-0227)

$

$

Not available

27

Cub Cadet 01009635

Extension Spring, .98 OD x 5.00

$19.99

$

In Stock, only 1 left!

0

28

Cub Cadet 01008764

Hex Head Cap Screw, 5/16-18 x 0.75

$

$

Not available

29

Cub Cadet 01009760

Shoulder Screw, 0.625 x 0.75

$15.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01010119

Nut, 1/2-13, Flangelock

$7.49

$

In Stock, only 2 left!

0

31

Cub Cadet 02001978

Rear Lift Arm, LH

$

$

Not available

32

Cub Cadet 02001919

Rear Lift Arm, RH

$80.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 02000336

Lift Shaft Assembly

$

$

Not available

34

Cub Cadet 02000337

Spacer, .375 x .5 x 1.176 Lg.

$

$

Not available

35

Cub Cadet 02000350

Front Lift Rod

$

$

Not available

36

Cub Cadet 02000352

Lift Index Plate

$

$

Not available

37

Cub Cadet 02000472

Lift Handle Assembly

$

$

Not available

38

Cub Cadet 02000849

Actuator Bracket

$

$

Not available

39

Cub Cadet 02000849

Actuator Mounting Bracket

$

$

Not available

40

Cub Cadet 02001982

Cable Mounting Bracket Assembly

$

$

Not available

41

Cub Cadet 02000660

Actuator

$

$

Not available

42

Cub Cadet 02000673

Hair Pin
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

43

Cub Cadet 02000393

Shoulder Screw, 3/8-16, .56 x .27
(Superseded to 738-05008)

$8.49

$

In Stock, only 1 left!

0

44

Cub Cadet 02000671

Lock Washer
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0

45

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

46

Cub Cadet 02001907

Front Lift Rod Tube

$

$

Not available

47

Cub Cadet 02001913

Front Lift Rod

$

$

Not available
