Z-Wing 48 (53AI5BBY750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Fabricated Deck Spindle Assembly Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

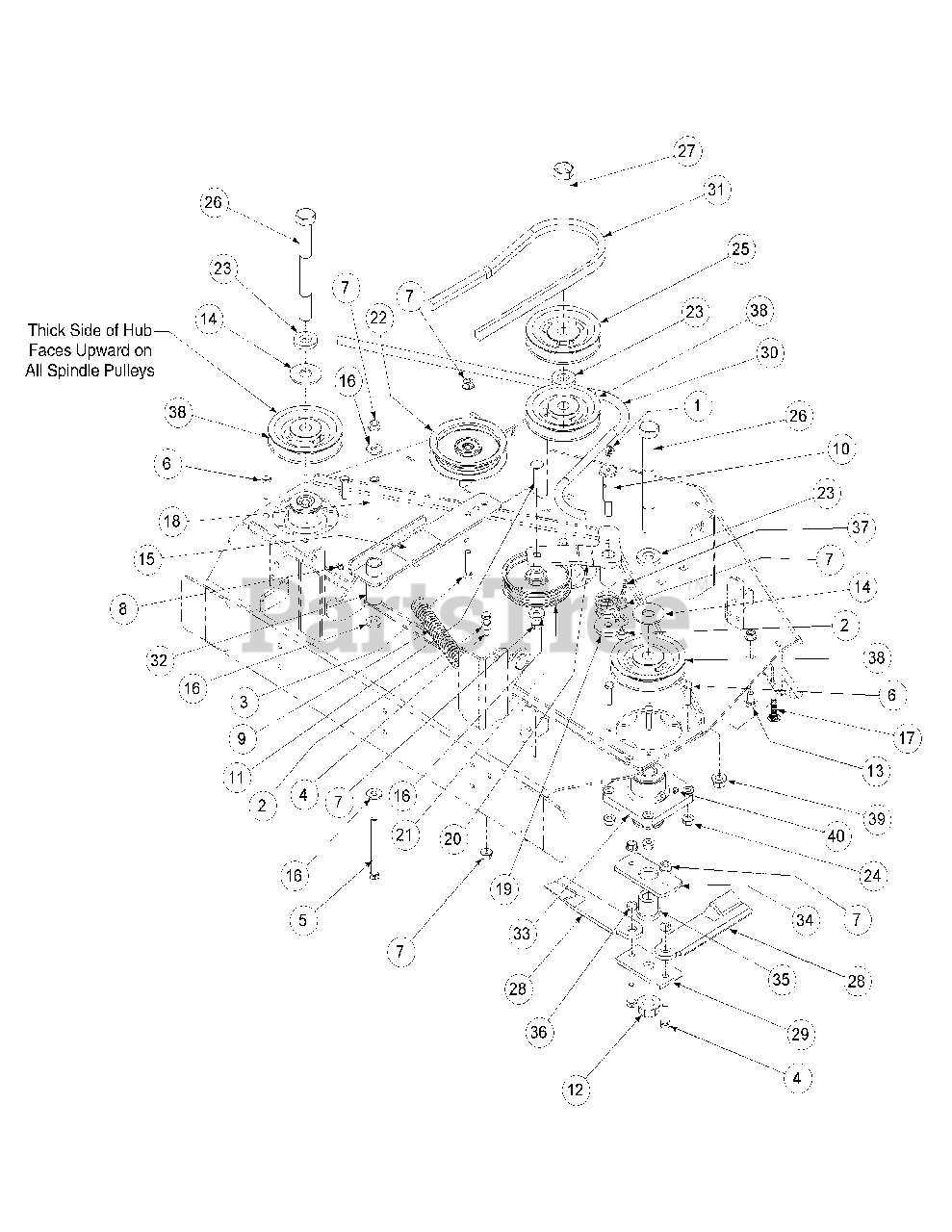

Fabricated Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 737-3004

Grease Fitting, 1/4-28 90 Deg.

$11.99

$

In Stock, Qty 6

0

2

Cub Cadet 912-3017

Hex Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

6

Cub Cadet 00013116

Hex Cap Screw, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 01000199

Spring Extension, 1.0 OD x 5.125

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

12

Cub Cadet 712-3078

Hex Flange Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-3014

Flat Washer, .781 ID, 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 01006382

Decal, Idler Location

$

$

Not available

16

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

18

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, Qty 11

0

19

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

20

Cub Cadet 01005737

Idler Arm Assembly, Deck Spindle

$108.99

$

In Stock, only 2 left!

0

20

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

21

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

22

Cub Cadet 02004447

Idler Pulley, 4.06 OD w/Deep Flange

$57.99

$

In Stock, Qty 20+

0

23

Cub Cadet 01004187

Flat Washer, .760 ID x 1.50 OD x .25

$

$

Not available

24

Cub Cadet 712-3004A

Hex Nut, 5/16-18, Lock Flange

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$14.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01008542

Hex Cap Screw, 3/4-16, 7.50

$28.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01010127-0637

Blade, Short Fold

$35.99

$

In Stock, Qty 7

0

29

Cub Cadet 01010132

Blade Center Connector

$

$

Not available

30

Cub Cadet 02000154

V-Belt, A-Section
(Superseded to 02000154P)

$89.99

$

In Stock, only 1 left!

0

31

Cub Cadet 02000277

V-Belt, B-Section
(Superseded to 02000277P)

$69.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 02000818

Idler Arm Weldment

$

$

Not available

32

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

33

Cub Cadet 918-04939

Spindle Assembly

$

$

Not available

34

Cub Cadet 02000796

Blade Upper Mount Plate

$

$

Not available

35

Cub Cadet 02000798

Blade Spacer

$

$

Not available

36

Cub Cadet 02000799

Spacer, .385 ID x .625 OD x .25

$8.49

$

In Stock, only 3 left!

0

37

Cub Cadet 732-3067

Idler Torsion Spring

$23.99

$

In Stock, only 1 left!

0

38

Cub Cadet 02000859

V-Pulley, 4.60 OD (use with ref 23)

$

$

Not available

38

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

In Stock, only 1 left!

0

39

Cub Cadet 02000948

Nut, 7/16-20, FlangeLock
(Superseded to 712-04337)

$3.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 02000945

Grease Fitting

$

$

Not available
