Z-Wing 48 (53AI5BBY750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Control Assembly Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

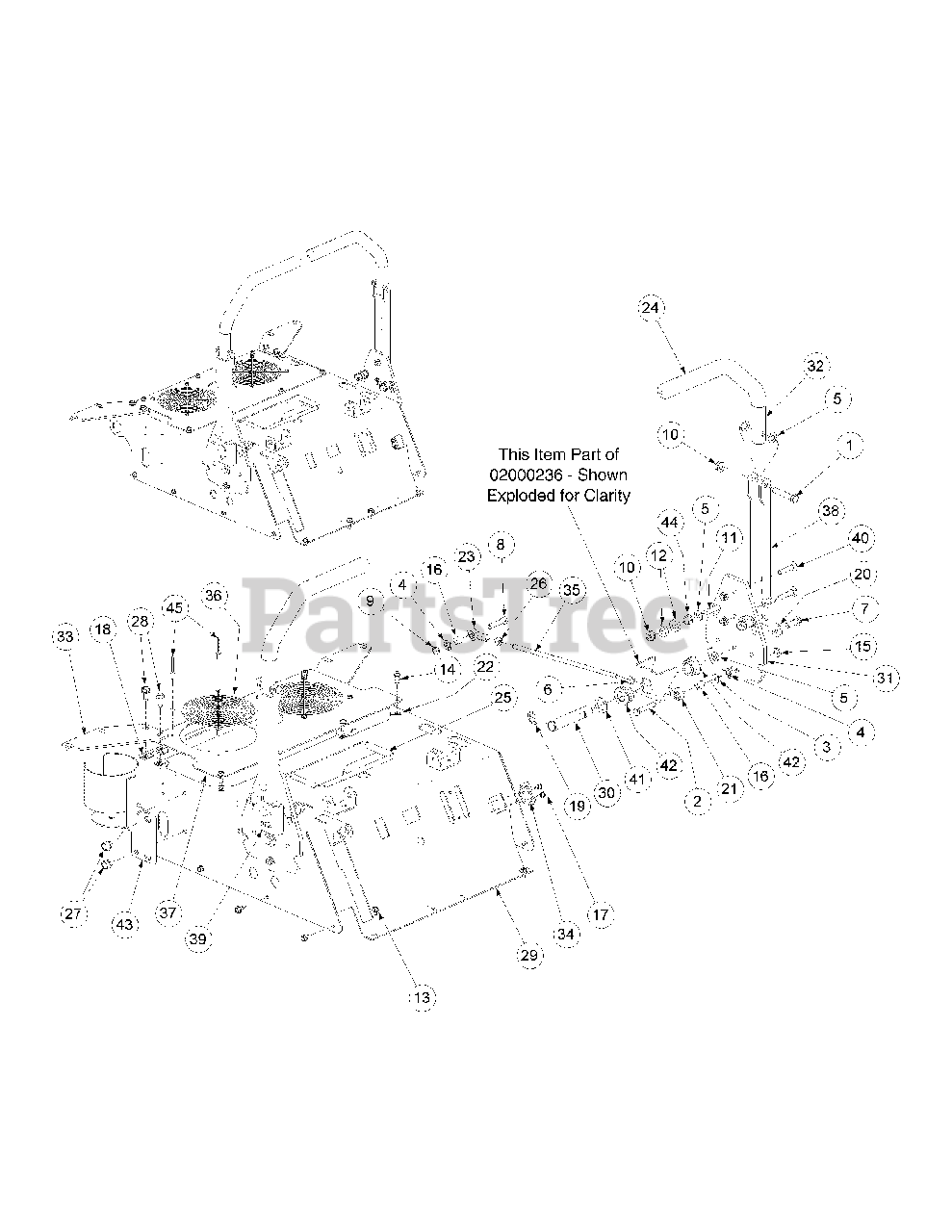

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

4

Cub Cadet 02000300

Push Retainer, 5/16

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00012158

Washer

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 912-3057

Hex Nut, 5/16-24

$6.99

$

In Stock, only 3 left!

0

7

Cub Cadet 00012171

Hex Cap Screw, 3/8-16 x 1.00

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

9

Cub Cadet 00022547

Nut, 5/16-18, Center Lock

$

$

Not available

10

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0560

Carriage Screw 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

12

Cub Cadet 00071691

Spacer, Control Rod

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0642

Screw, TT, 1/4-20, 0.75, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01000799

Spacer, .265 x .500 x .562

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 01001864

Screw, TT, 10-24, .5
(Superseded to 1767754)

$

$

Not available

18

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 01003994

E Clip, 3/4 Dia.

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01007238

Flat Washer, .385 ID x 1.00 OD x .145

$

$

Not available

21

Cub Cadet 01008410P

Rod End, 5/16, Right Hand
(Superseded to 723-04039)

$57.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008551P

Rod End, 5/16, Left Hand

$50.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01008552P

Lap Bar Grip

$24.99

$

In Stock, only 1 left!

0

25

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 01008576P

Hex Nut, 5/16-24, Left Hand

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01004304

Self Tapping Screw, 5/16-18 x 1/2
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

28

Cub Cadet 01008764

Hex Washer Screw 5/16-18 x .750

$

$

Not available

29

Cub Cadet 02000237

Control Housing Assembly

Note: NLA

$

$

Not available

30

Cub Cadet 02000238

Steering Input Shaft

$

$

Not available

31

Cub Cadet 02000240

Steering Pivot Plate

$

$

Not available

32

Cub Cadet 02000327

Pivot Handle Control Tube

$

$

Not available

33

Cub Cadet 02000330

Tank Front Mounting Plate

$

$

Not available

34

Cub Cadet 02000124

Brake Switch Mounting Bracket

$

$

Not available

35

Cub Cadet 02000359

Steering Link Rod

$

$

Not available

36

Cub Cadet 02000372

Fan Cover

$

$

Not available

37

Cub Cadet 02000647

Hydro Service PLate

$

$

Not available

38

Cub Cadet 02000662

Lapbar Pivot Bracket, LH

$

$

Not available

39

Cub Cadet 02000664

Lapbar Pivot Bracket, RH

$

$

Not available

40

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

41

Cub Cadet 02001336

Flat Washer, 1.125 ID x .75 OD x .005

$

$

Not available

42

Cub Cadet 941-0598

Hex Flange Bearing, .752 ID

$12.99

$

In Stock, Qty 20+

0

43

Cub Cadet 02000340

Cup Holder Assembly
(Superseded to 02001311)

$68.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 01001864

Screw, TT, 10-24, .5
(Superseded to 1767754)

$

$

Not available
