Z-Force SZ60 (53ANDFJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower (2014) Front Axle Parts Diagram

60" Z-Force S Zero-Turn Mower

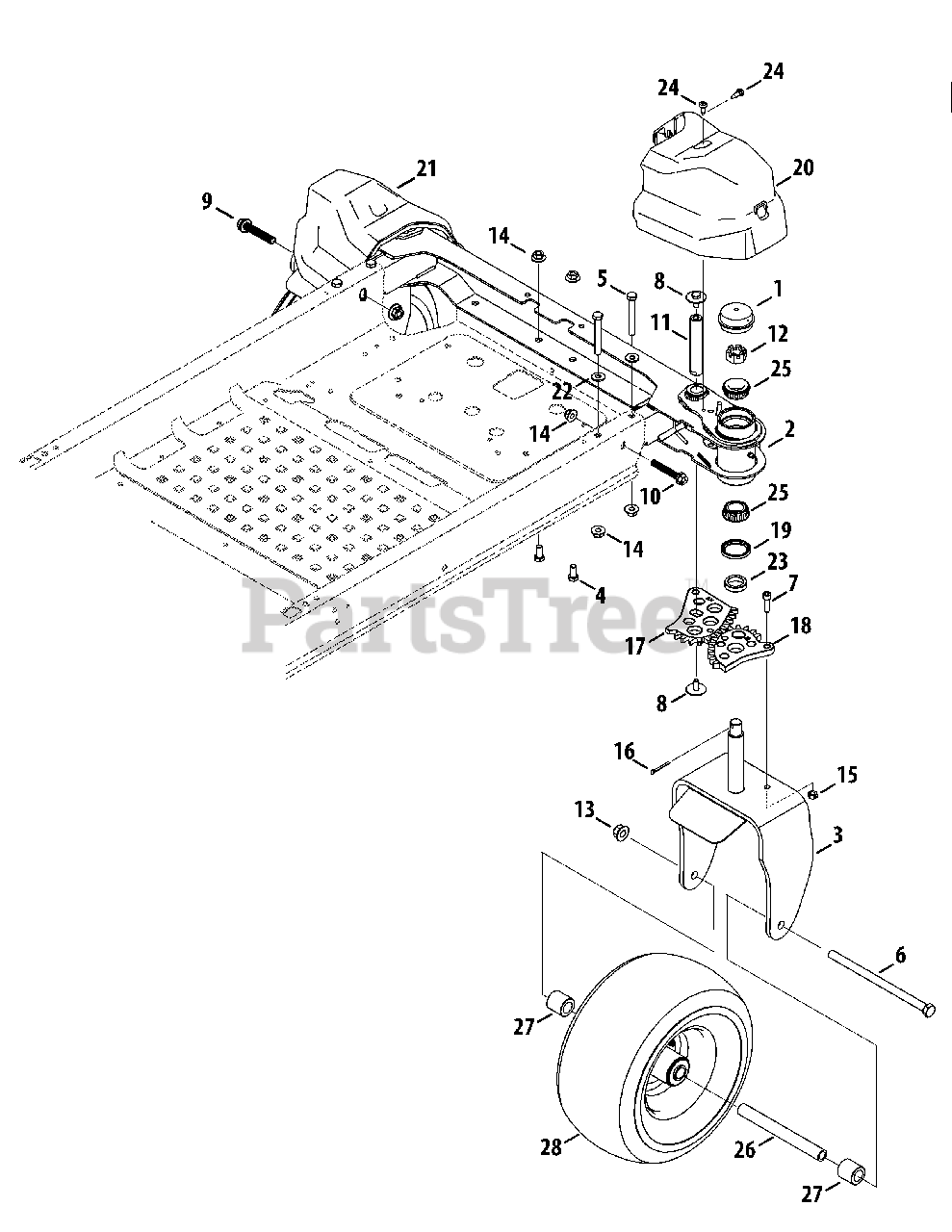

Front Axle Parts Diagram

  • Title

1

Cub Cadet 01006347

Cap
(Superseded to 703-10384)

$15.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-05066

Front Axle
(Superseded to 903-05275A)

$566.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

Note: (not shown)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 603-05075-0637

Caster Wheel Bracket
(Superseded to 603-05075A-0637)

$118.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

5

Cub Cadet 710-04656

Screw, 3/8-16 x 2.75
(Superseded to 710-04656A)

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04999

Hex Cap Screw, 1/2-13 x 8.50

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-05398

Socket Head Screw, 5/16-18 x 1.00

$3.49

$

In Stock, only 1 left!

0

8

Cub Cadet 710-06041

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-06045

Hex Flange Screw, 3/8-16 x 2.25

$5.49

$

In Stock, only 3 left!

0

10

Cub Cadet 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-06081A

Pivot Gear Steering Shaft

$22.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

16

Cub Cadet 714-0162

Cotter Pin, 5.32 x 1.25

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 717-04952

12-Tooth Variable Gear

$53.99

$

In Stock, only 1 left!

0

18

Cub Cadet 717-05133

13-Tooth Variable Spur Gear

$51.99

$

In Stock, only 2 left!

0

19

Cub Cadet 721-04656

Seal, 35 x 47 x 5

$6.49

$

In Stock, Qty 6

0

20

Cub Cadet 731-09291A

Axle Cover, RH

$20.99

$

In Stock, only 3 left!

0

21

Cub Cadet 731-09320A

Axle Cover, LH

$20.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 750-06085

Seal, 1.378 x .984 x .329

$5.49

$

In Stock, Qty 6

0

24

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

25

Cub Cadet 741-05055

Bearing, 47mm x 25mm x 15mm

$19.99

$

In Stock, only 3 left!

0

26

Cub Cadet 750-05351

Spacer, .51 ID x .75 OD x 7.10
(Superseded to 750-05351A)

$20.99

$

In Stock, only 2 left!

0

27

Cub Cadet 750-05352

Hub, .76 x 1.23 x 1.25

$7.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 634-04623A-0931

Wheel Assembly, 13 x 6.5 x 6
(Superseded to 634Z04623A-0499)

$188.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 941-04137A

Ball Bearing

Note: (not shown)

$30.99

$

In Stock, Qty 6

0

28

Cub Cadet 937-0280

Grease Fitting
(Superseded to 737-0280)

Note: (not shown)

$7.99

$

In Stock, Qty 8

0

28

Cub Cadet 934-0255

Valve, Tubeless Air

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0
