Z-Force SZ60 (53ANDFJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower (2014) Deck Lift Parts Diagram

60" Z-Force S Zero-Turn Mower

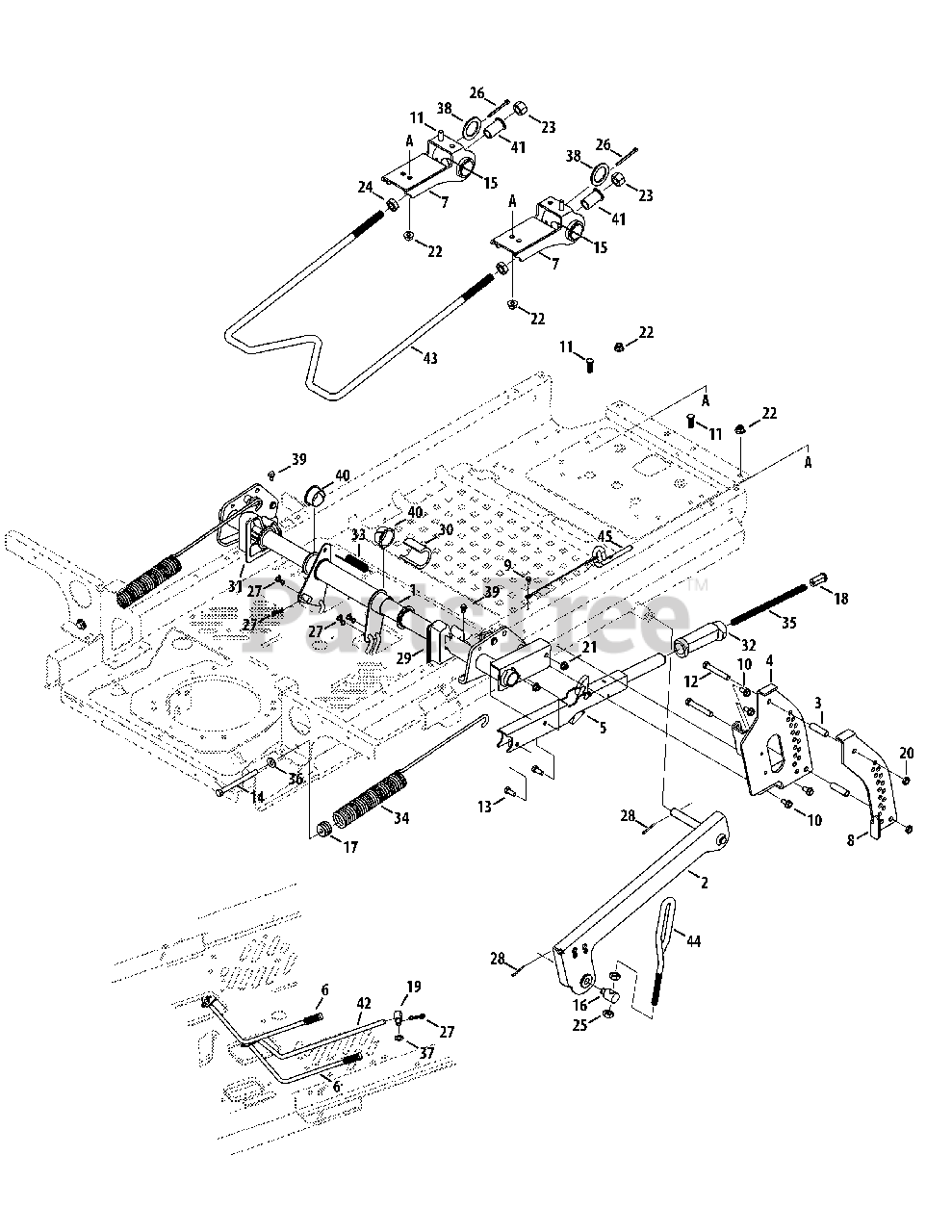

Deck Lift Parts Diagram

  • Title
1

Cub Cadet 603-04973

Deck Lift Shift Assembly
(Superseded to 603-04973A)

Variations

Cub Cadet 603-04973-0637

SHAFT ASM-DECK LIF - POWDER BLACK (0637)

$162.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05086-0637

Lift Arm, RH
(Superseded to 603-05086A-0637)

$55.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-05087-0637

Lift Arm, LH
(Superseded to 603-05087A-0637)

$55.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 750-06031

Spacer, .386 x .63 x 1.75

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-05092-0637

Index Bracket Assembly
(Superseded to 759-05073)

$132.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 903-05143

Latch Handle Assembly
(Superseded to 903-05143A)

$89.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 647-05027

Brake Rod Assembly

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09306-0637

Deck Hanger Bracket

$42.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09309A-0637

Outer Index Bracket

$39.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 910-0224

Screw, #10-16, .50

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0859

Hex Head Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

13

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3279

Hex Screw, 3/8-16 x 4.25

$8.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-06216A

Pivot Pin, 1.25

$31.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-06284

Ferrule, .496 x .528

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 711-0635

Spring Insert

$44.99

$

In Stock, only 1 left!

0

18

Cub Cadet 711-0642A

Handle Button

$7.99

$

In Stock, Qty 12

0

19

Cub Cadet 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

20

Cub Cadet 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

23

Cub Cadet 712-05045A

Nylock Nut, 5/8-11

$3.99

$

In Stock, only 2 left!

0

24

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-05046

Nut,Hex Nylok 1/2-13

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 714-0211

Cotter Pin, 3/16 x 2.0

$4.49

$

In Stock, Qty 14

0

27

Cub Cadet 714-05005

Bow-Tie Cotter Pin

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 914-0470

Cotter Pin 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 731-09683

Deck Lift Bracket

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-09687

Spacer, 1.375 Shaft

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-09707

Deck Lift Bracket, LH

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-3158

Grip, Deck Lift Handle

$17.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-04587

Extension Spring, .63 Dia. x 4.95 LG

$7.49

$

In Stock, Qty 12

0

34

Cub Cadet 732-05096

Extension Spring, 1.485 OD x 17.58

$34.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 732-3097

Spring, Compression, .4 x 8.52

$14.99

$

In Stock, only 4 left!

0

36

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 10

0

37

Cub Cadet 936-0314

Washer, .375 x .700 x .030
(Superseded to 736-0314)

$

$

Not available

38

Cub Cadet 736-05070

Flat Washer, 1.875 x 1.38 x .097

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

40

Cub Cadet 741-05059

Flange Bearing, 1.38 x 1.75 x .50

$5.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 741-05075A

Flange Bearing, .875 x .702 x 1.10

$5.49

$

In Stock, only 2 left!

0

42

Cub Cadet 747-05592A

Brake Rod
(Superseded to 747-05592B)

$22.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 747-05725A

Deck Hanger Rod, 5/8

$56.99

$

In Stock, only 1 left!

0

44

Cub Cadet 747-06259A

Lift Adjust Link

$19.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 747-06355

Lock Rod, .375

$32.99

$

Usually ships in 3-6 days

0
