Z-Force SZ60 (17AIDGHD010) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kawasaki (2015) Front Axle Parts Diagram

60" Z-Force S Zero-Turn Mower, Kawasaki

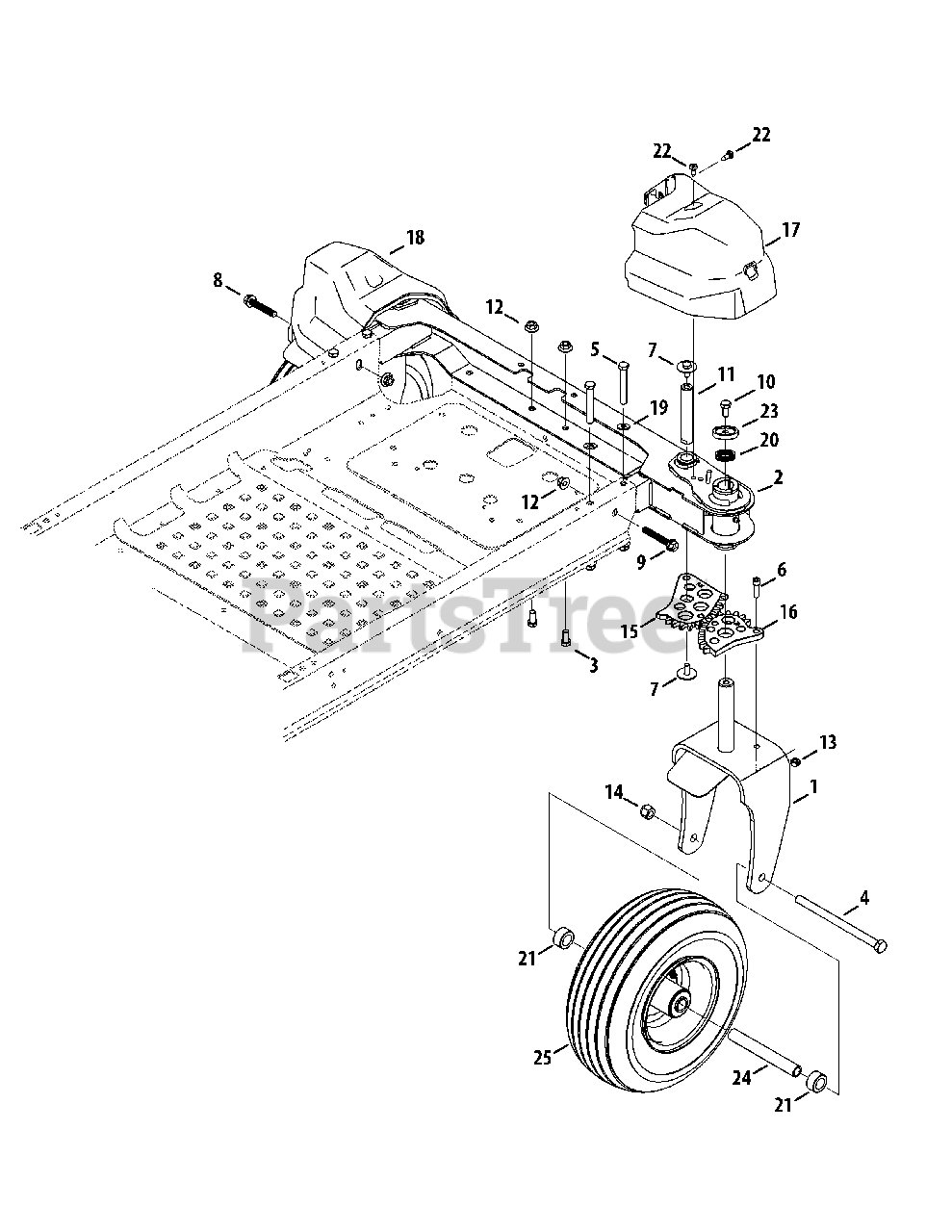

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-05020-0637

Caster Wheel Bracket
(Superseded to 603-05020A-0637)

$140.99

$

In Stock, only 3 left!

0

2

Cub Cadet 903-05106

Front Axle
(Superseded to 903-05294A)

$546.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

Note: (not shown)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

4

Cub Cadet 710-04652

Bolt, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-04656A

Screw, 3/8-16 x 2.75

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-05398

Socket Head Screw, 5/16-18 x 1.00

$3.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-06041

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-06045

Hex Flange Screw, 3/8-16 x 2.25

$5.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 711-06081A

Pivot Gear Steering Shaft

$22.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

13

Cub Cadet 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

14

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

15

Cub Cadet 717-04952

12-Tooth Variable Gear

$53.99

$

In Stock, only 1 left!

0

16

Cub Cadet 717-05133

13-Tooth Variable Spur Gear

$51.99

$

In Stock, only 2 left!

0

17

Cub Cadet 731-09291A

Axle Cover, RH

$20.99

$

In Stock, only 3 left!

0

18

Cub Cadet 731-09320A

Axle Cover, LH

$20.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 10

0

20

Cub Cadet 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$4.99

$

In Stock, Qty 17

0

21

Cub Cadet 750-05572

Spacer, .76 x 1.23 x .63

$6.99

$

In Stock, only 1 left!

0

22

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

23

Cub Cadet 738-05093

Shoulder Spacer, 1.75 x .180

$6.49

$

In Stock, only 1 left!

0

24

Cub Cadet 750-04775A

Spacer, .51 ID x .75 OD x 5.825

$28.99

$

In Stock, Qty 20+

0

25

Cub Cadet 634-04629

Wheel Assembly, 13 x 5 x 6

Variations

Cub Cadet 634-04629-0499

Caster Wheel Assembly - CUB BEIGE (0499)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-0637

WHEEL ASM-CASTER - POWDER BLACK (0637)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-0662

WHEEL ASM-CASTER - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-4028

Caster Wheel Assembly - SEARS YELLOW (4028)

$177.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 734-04520

Tire, 13 x 5.0-6 Grooved 4-ply

Note: (Not shown)

$93.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 941-04137

Bearing, Ball .750 ID x 1.750 OD
(Superseded to 941-04137A)

Note: (Not shown)

$30.99

$

In Stock, Qty 6

0

25

Cub Cadet 937-0280

Grease Fitting, 1/4-28
(Superseded to 737-0280)

Note: (Not shown)

$7.99

$

In Stock, Qty 8

0
