Z-Force SZ48 KH FAB (17BSDGHB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Fab Deck, Kohler (2016) Operator Controls Parts Diagram

48" Z-Force S Zero-Turn Mower, Fab Deck, Kohler

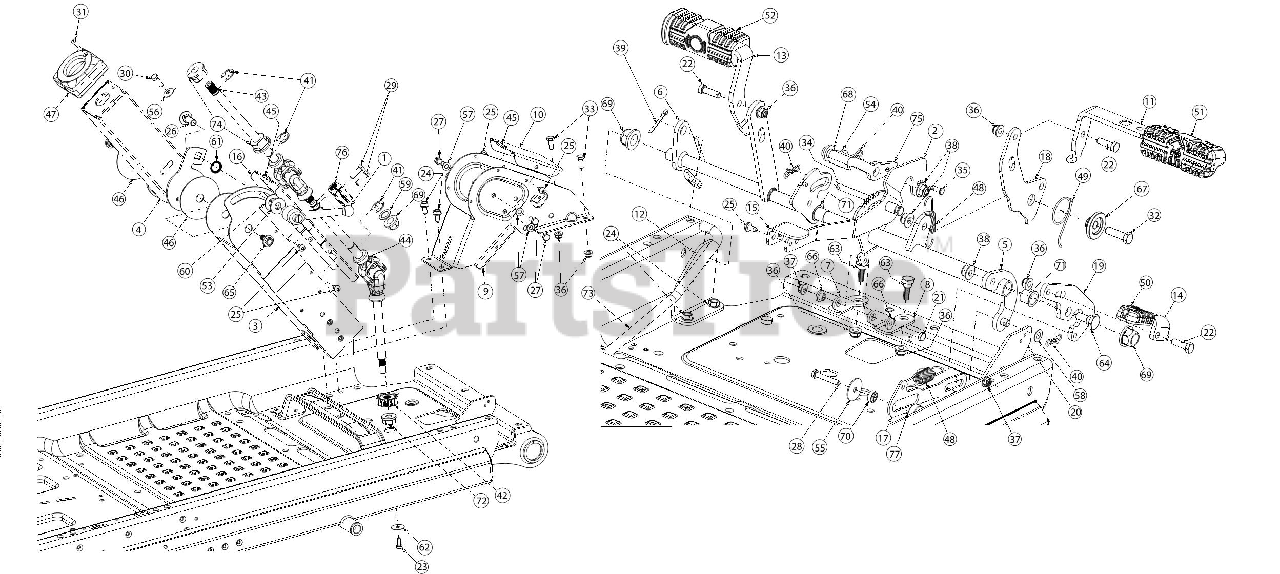

Operator Controls Parts Diagram

  • Title

1

Cub Cadet 02005058

LEVER - ADJ STEERING

$72.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05040-4021

CRUISE/BRAKE ARM

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-05076-4021

LOWER COLUMN ASSEMBLY
(Superseded to 603-05076A-4021)

$120.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-05128A-4021

UPPER PIVOT COLUMN ASSEMBLY

$149.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 947-04270A

DRIVE PEDAL SHAFT ASSEMBLY
(Superseded to 947-04270C)

$82.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 947-05042A

BRAKE SHAFT ASSEMBLY

$98.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08604-4021

PEDAL SHAFT BRACKET (LH)
(Superseded to 703-08604A-0637)

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08606-4021

PEDAL SHAFT BRACKET (RH)
(Superseded to 703-08606A-0637)

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08621A-4021

LOWER STEERING COLUMN
(Superseded to 703-08621B-4021)

$77.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08622-4021

LOWER COLUMN COVER

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08646B-4021

FORWARD DRIVE PEDAL

$24.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08656-4021

BEARING SUPPORT BRACKET

$26.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-08675A-4021

BRAKE PEDAL

$40.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-08694B-4021

REVERSE DRIVE PEDAL

$19.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-09147-4021

TILT STEERING PEDAL

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-09279-4021

STEERING COLUMN COVER

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 903-09837A

NEUTRAL RETURN LINK

$12.99

$

Usually ships in 3-6 days

0

18

703-10338-4021

FORWARD PEDAL BRACKET

$

$

Not available

19

Cub Cadet 703-10350

REVERSE PEDAL PIVOT PLATE

$24.99

$

Usually ships in 3-6 days

0

20

703-10408-4021

PEDAL BRACKET (RH)

$

$

Not available

21

Cub Cadet 710-0106

HEX SCREW 1/4-20 X 1.25

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 710-0376

SCREW 5/16-18 X 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

23

Cub Cadet 710-0433

SCREW 1/4-20 X .62 SPEC GR5

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 710-04484

SCREW 5/16-18 X .750

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-05070A

SCREW 1/4-20 X .5

$6.99

$

In Stock, Qty 7

0

26

Cub Cadet 710-05375

CARRIAGE BOLT 1/2-13 X 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0538

SCREW 5/16-18 X .62 GR5

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet 710-0606

SCREW 1/4-20 X 1.50 GR.5

$5.49

$

In Stock, Qty 9

0

29

Cub Cadet 710-0643

SCREW 5/16-18 X 1.00 GR5

$6.99

$

In Stock, Qty 5

0

30

Cub Cadet 710-1245B

SCREW 5/16-24 X .875 GR5

$8.49

$

In Stock, only 2 left!

0

31

Cub Cadet 710-1331

SCREW #10-16 X 1.25

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 710-3005

SCREW 3/8-16 X 1.25 GR5

$3.99

$

In Stock, Qty 10

0

33

Cub Cadet 710-3008

SCREW 5/16-18 X .75 GR5

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 711-05068A

CLEVIS PIN 5/16 X 4.135

$7.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 711-05670

CLEVIS PIN .224 X .625

$5.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

41

Cub Cadet 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

42

Cub Cadet 717-04960

STEERING GEAR 14T

$13.99

$

In Stock, only 1 left!

0

43

Cub Cadet 717-05247

UPPER STEERING SHAFT
(Superseded to 917-05424)

$176.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 717-05248

LOWER STEERING SHAFT
(Superseded to 917-05424)

$176.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 731-0511

TRIM STRIP

$3.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 731-09831

COLUMN PLATE

$6.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 731-11491

STEERING COLUMN COVER
(Superseded to 731-11491A)

$14.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04748

EXTENSION SPRING

$4.49

$

In Stock, only 1 left!

0

49

Cub Cadet 732-04949

TORSION SPRING

$5.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 735-04117

REVERSE PEDAL PAD

$6.49

$

In Stock, only 3 left!

0

51

Cub Cadet 735-04118A

FORWARD PEDAL PAD

$14.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 735-04136

BRAKE PEDAL PAD

$15.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 936-0192

FLAT WASHER .535 X .930 X .090

$4.49

$

In Stock, Qty 18

0

55

Cub Cadet 936-0211

FLAT WASHER
(Superseded to 736-0211)

$6.99

$

In Stock, Qty 7

0

56

Cub Cadet 736-0242

BELL WASHER .337 X.867 X .057

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

58

Cub Cadet 936-0314

WASHER THRUST .375X.70X.030
(Superseded to 736-0314)

$

$

Not available

59

Cub Cadet 936-0337

FLAT WASHER

$4.49

$

In Stock, Qty 9

0

60

Cub Cadet 736-04602

FLAT WASHER NYLON 5/8

$3.99

$

In Stock, Qty 8

0

61

Cub Cadet 936-0760

LOCK WASHER

$4.49

$

In Stock, Qty 13

0

62

Cub Cadet 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

63

Cub Cadet 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 938-0380

SHOULDER SCREW
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

65

Cub Cadet 738-04130A

SHOULDER SCREW .625X.165X3/8-16

$9.49

$

In Stock, Qty 10

0

66

Cub Cadet 738-04483

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 738-04552B

SHOULDER SPACER 1.50X.38X.38

$7.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 738-0929

SHOULDER SCREW .496X1.44 3/8-16

$7.99

$

In Stock, only 2 left!

0

69

Cub Cadet 941-0225

FLANGE BEARING

$7.49

$

In Stock, Qty 20+

0

70

Cub Cadet 741-04425

BALL BEARING .25 X .625 SPCL

$14.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 741-0495

NYLINER BEARING

$4.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 741-05052

FLANGE BEARING

$6.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 747-05654A

FRONT BRAKE ROD

$42.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 948-0209

FLANGE BEARING

$22.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 748-04203

CRUISE LATCH

$14.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 748-05045

STEERING SHAFT COUPLING

$35.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 750-06497

SPACER .267X1.00X.36

$2.99

$

Usually ships in 3-6 days

0
