Z-Force SZ48 (53ATDFJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2014) Steering Linkage Parts Diagram

48" Z-Force S Zero-Turn Mower

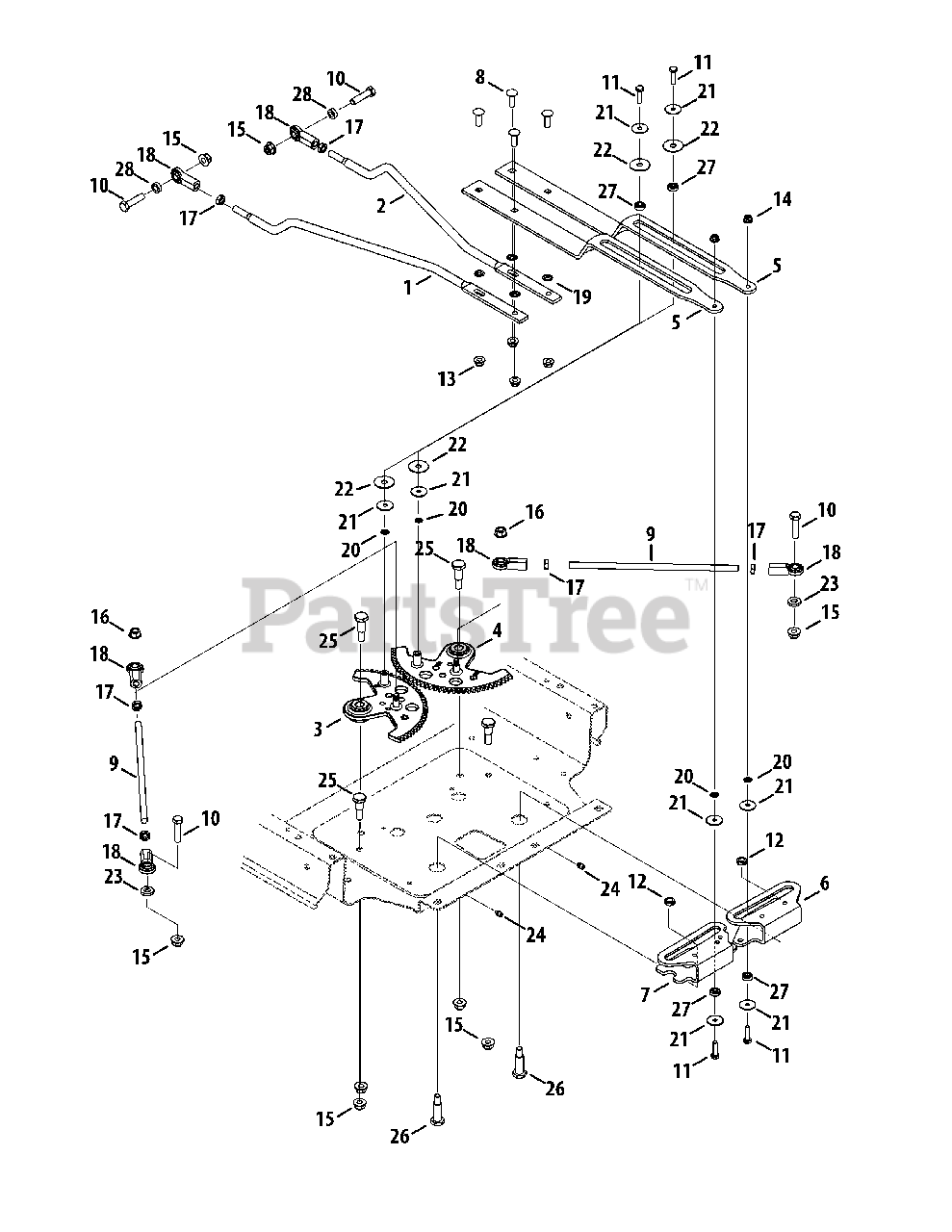

Steering Linkage Parts Diagram

  • Title

1

Cub Cadet 747-05591A

Hydro Link, RH

$33.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 747-05606A

Hydro Link, LH

$36.99

$

In Stock, only 1 left!

0

3

Cub Cadet 917-05010

Steering Gear Assembly, RH

$105.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 917-05011

Steering Gear Assembly, LH

$105.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08600

Control Link

Note: (No Longer Available) (Order Kit 753-08763)

$

$

Not available

5

Cub Cadet 753-08763

ZF-S STEERING KIT (REPL 703-08600)

$309.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-08882

Speed Cam Plate, LH
(Superseded to 703-08882A)

$23.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08883

Speed Cam Plate, RH
(Superseded to 703-08883A)

$23.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 747-06130

Drag Link, .375 Dia.

$23.99

$

In Stock, only 3 left!

0

10

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet 710-3220

Hex Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 12

0

12

Cub Cadet 712-0266A

Nut, Jamlock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04339

Nut, 5/16-18, Centerlock

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 723-04080

Female Ball-Joint

$41.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 726-0201

Speed Nut, .3125 ID

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet 726-0233

Push Nut, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 936-0211

Flat Washer, .285 x 1.25 x .060
(Superseded to 736-0211)

$6.99

$

In Stock, Qty 7

0

22

Cub Cadet 736-04639

Washer, .355 x 1.25 x .048

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 937-3000

Grease Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 738-05046

SHOULDER SCREW .625 x .875 x 3/18

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 738-1014

Shoulder Screw, .500 x 1.25 x 3/8-16

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet 741-04425

Ball Bearing, .25 x .625

$14.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 950-0535

Spacer, .380 ID x .625 OD x .21

$4.49

$

In Stock, Qty 20+

0
