Z-Force SZ48 (53ATDFJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2014) Kohler ZT730-3011 Head & Valve & Breather Parts Diagram

48" Z-Force S Zero-Turn Mower

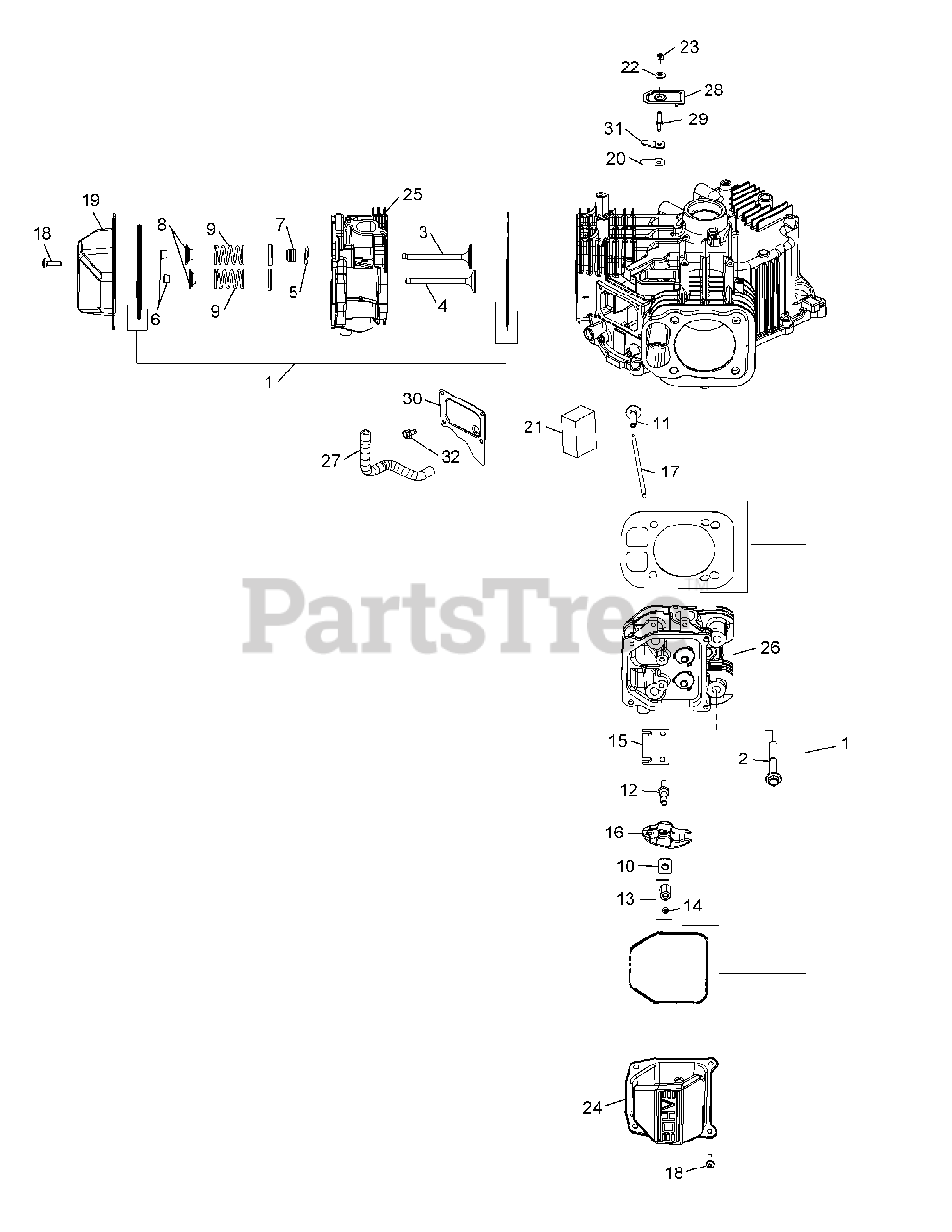

Kohler ZT730-3011 Head & Valve & Breather Parts Diagram

  • Title
1

Cub Cadet KH-24-841-04-S

Cylinder Head Gasket Kit

Note: (Inc. Head Mounting Hardware)

$45.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-62-086-08-S

Flange Screw, M10 x 1.5 x 90

$5.99

$

In Stock, Qty 5

0

3

$8.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-32-016-01-S

Exhaust Valve

$15.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-275067

Spacer (.010")

$

$

Not available

6

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-25-032-14-S

Valve Band Seal

$11.99

$

In Stock, Qty 8

0

8

Cub Cadet KH-25-173-28-S

Valve Spring Cap

$8.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-32-089-05-S

Valve Spring
(Superseded to KH-25-089-17-S)

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KH-25-599-01-S

Rocker Arm Pivot

$2.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 3 left!

0

12

$4.99

$

In Stock, only 3 left!

0

13

Cub Cadet KH-32-100-05-S

Hex Nut Assembly (Inc. #14)

$3.99

$

In Stock, Qty 7

0

$4.49

$

In Stock, only 2 left!

0

15

$2.99

$

In Stock, Qty 5

0

16

$6.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 9

0

18

Cub Cadet KH-25-086-374-S

Pan Head Screw
(Superseded to KH-25-086-660-S)

$2.49

$

In Stock, Qty 5

0

19

$14.99

$

In Stock, Qty 5

0

20

Cub Cadet KH-12-402-02

Breather Reed

$

$

Not available

21

Cub Cadet KH-32-050-06-S

Breather Filter

$2.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-32-468-01-S

Sealing Washer

$2.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-M-547050-S

Lock Nut, M5 x 8

$2.49

$

In Stock, only 2 left!

0

24

$8.49

$

In Stock, only 1 left!

0

25

Cub Cadet KH-16-318-01-S

Cylinder Head Assembly Kit, #1

Note: (Inc. Exhaust Mounting Hardware)

$

$

Not available

26

Cub Cadet KH-16-318-02-S

Cylinder Head Assembly Kit, #2
(Superseded to KH-16-755-21-S)

Note: (Inc. Exhaust Mounting Hardware)

$193.99

$

Usually ships in 3-6 days

0

27

Cub Cadet KH-25-326-62-S

Breather Hose

$12.99

$

In Stock, only 2 left!

0

28

Cub Cadet KH-32-096-16-S

Breather Cover

$2.99

$

Usually ships in 2-5 days

0

$2.49

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-16-096-02-S

Breather Media Cover

$2.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-66-018-04-S

Reed Retainer

$4.99

$

In Stock, Qty 6

0

32

Cub Cadet KH-25-086-400-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0
