Z-Force SZ48 (53ATDFJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2014) Kohler ZT730-3011 Engine Controls Parts Diagram

48" Z-Force S Zero-Turn Mower

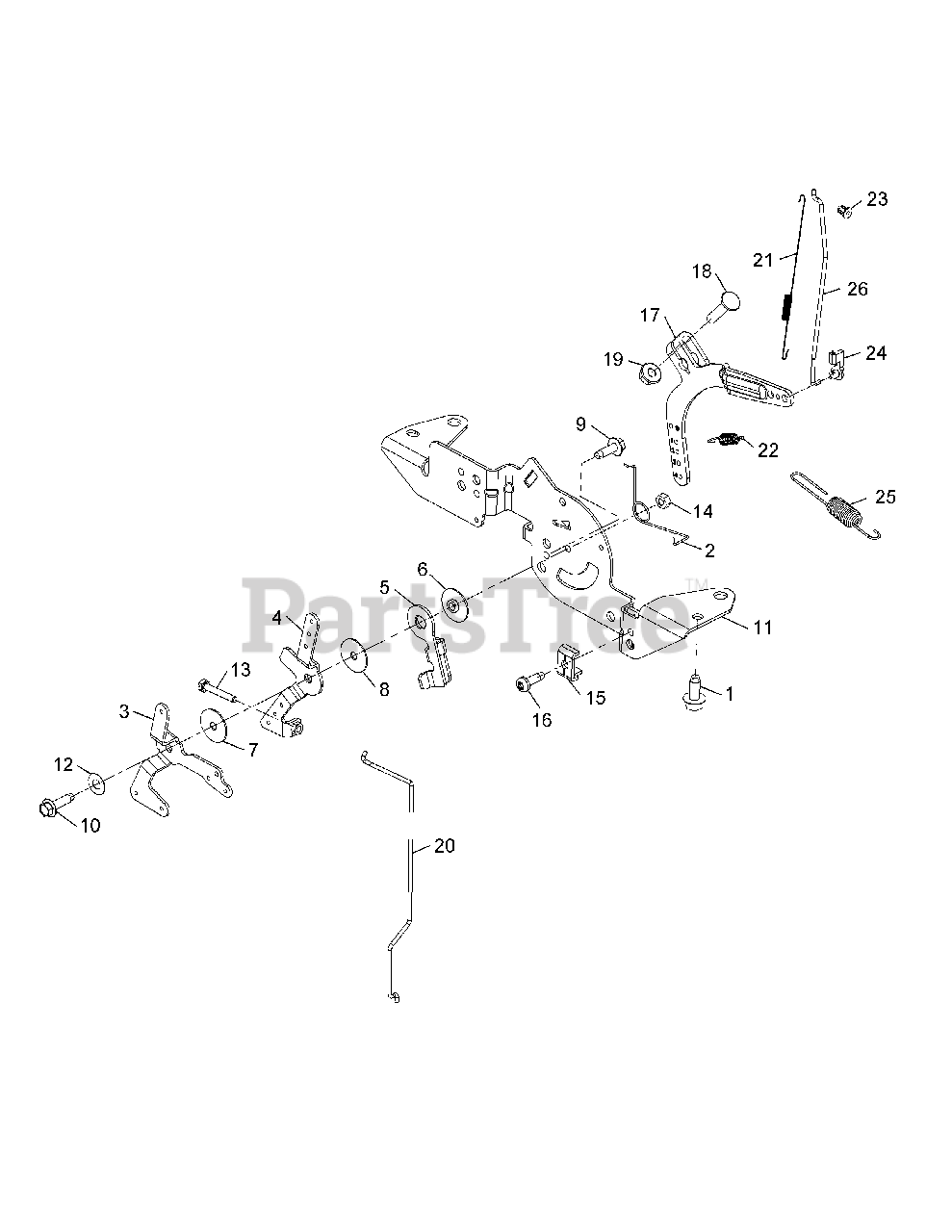

Kohler ZT730-3011 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-25-086-397-S

Thread Forming Screw

$3.99

$

In Stock, Qty 14

0

2

Cub Cadet KH-24-089-03

Choke Return Spring

$

$

Not available

3

$

$

Not available

4

Cub Cadet KH-24-090-13

Throttle Control Lever

$

$

Not available

5

Cub Cadet KH-24-090-47-S

Throttle Actuator Lever

$2.99

$

In Stock, Qty 11

0

6

Cub Cadet KH-24-112-27-S

Control Assembly Spacer

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-468-01

Flat Washer, 5.5mm

$

$

Not available

8

Cub Cadet KH-24-468-20-S

Flat Washer, 5mm

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-25-086-398-S

Thread Forming Screw

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-086-473-S

Thread Forming Screw

$2.49

$

In Stock, Qty 5

0

11

Cub Cadet KH-32-126-04-S

Control Bracket
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-41-468-03

Spring Washer, 1/4

$

$

Not available

13

Cub Cadet KH-M-403025

Screw, M4 x 0.7 x 25

$

$

Not available

14

Cub Cadet KH-M-547050-S

Lock Nut, M5 x .8

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-25-086-405-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-090-69-S

Governor Lever

$8.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-24-211-03-S

Bolt, M6 x 1.0 x 25

$2.49

$

In Stock, Qty 15

0

19

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 9

0

20

Cub Cadet KH-24-079-22-S

Choke Linkage

$6.99

$

In Stock, Qty 7

0

21

Cub Cadet KH-32-089-07-S

Linkage Spring
(Superseded to KH-32-089-11-S)

$2.49

$

In Stock, Qty 18

0

22

Cub Cadet KH-24-089-55-S

Governor Spring

$2.49

$

In Stock, Qty 6

0

23

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-158-11

BUSHING-RETAINING

$

$

Not available

25

Cub Cadet KH-24-089-18

Governor Spring

$

$

Not available

26

Cub Cadet KH-32-079-01-S

Throttle Linkage
(Superseded to KH-24-079-04-S)

$3.49

$

In Stock, Qty 6

0
