Z-Force SZ48 (53ATDFJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2014) Fuel Tank Parts Diagram

48" Z-Force S Zero-Turn Mower

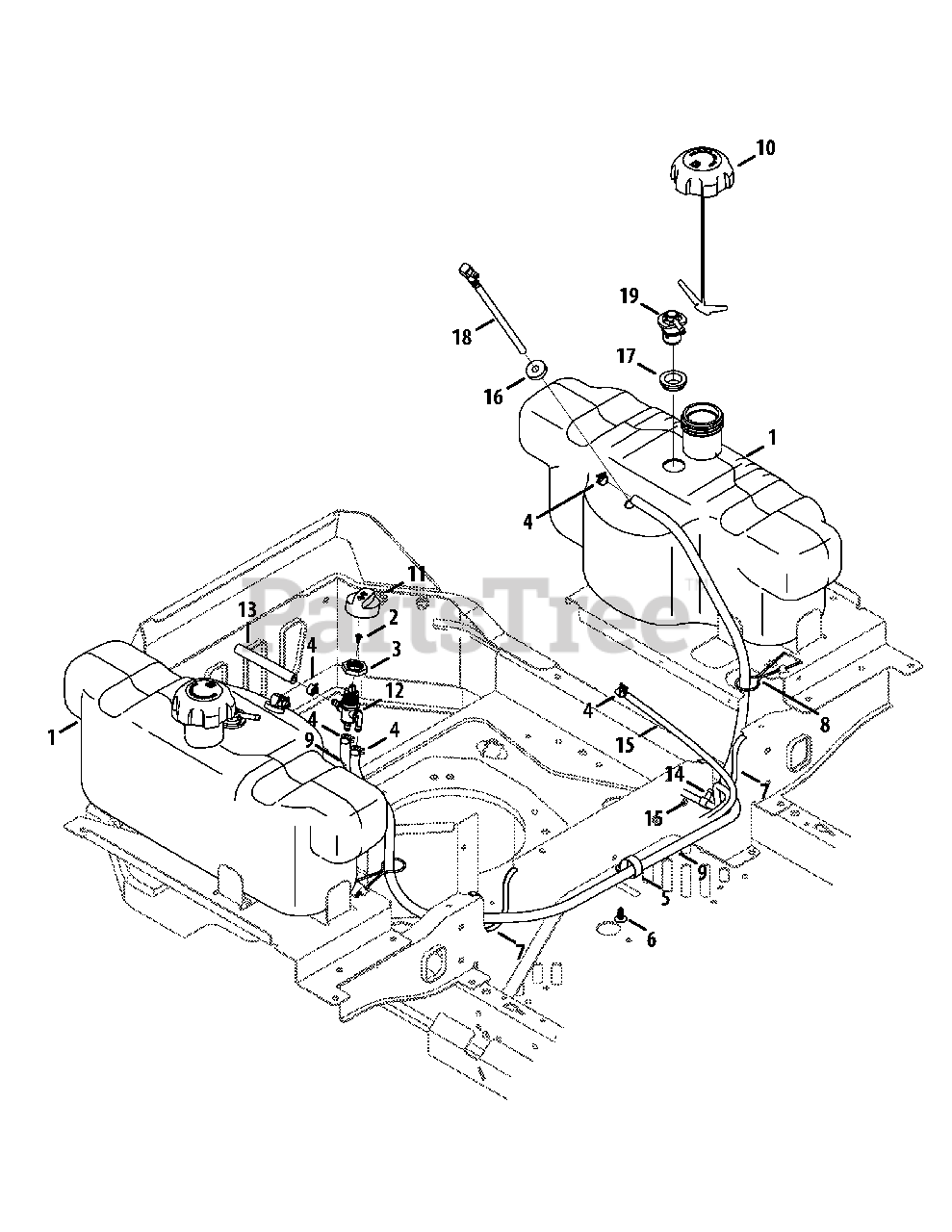

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 951-05137

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

2

Cub Cadet 710-06152

Screw, M4-0.7 x 8mm

$4.49

$

In Stock, only 3 left!

0

3

Cub Cadet 712-05048

Nut, 3 Way Select

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 726-0205

Hose Clamp, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 726-04119

Hose Clamp, 1.0

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 747-06306

Tank Support Rod

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 751-10349-54

Fuel Hose, Low Permeation, 1/4

$53.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-12179B

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

11

Cub Cadet 951-14488

FUEL KNOB CAP 3 WAY

$17.99

$

In Stock, only 2 left!

0

12

Cub Cadet 751-14526

Fuel Switch

$47.99

$

In Stock, only 2 left!

0

13

Cub Cadet 751-10349-6

Fuel Hose, Low Permeation, 1/4

$7.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 737-04341

Tee Fitting

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-12089-65

Vent Hose

$19.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 935-0149

Fuel Tank Bushing

$2.99

$

In Stock, Qty 20+

0

17

Cub Cadet 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 751-10442

Fuel Pickup Fitting

$32.99

$

In Stock, Qty 20+

0

19

Cub Cadet 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0
