Z-Force SZ48 (53ATDFJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2014) Engine Accessories (Kohler Confidant) Parts Diagram

48" Z-Force S Zero-Turn Mower

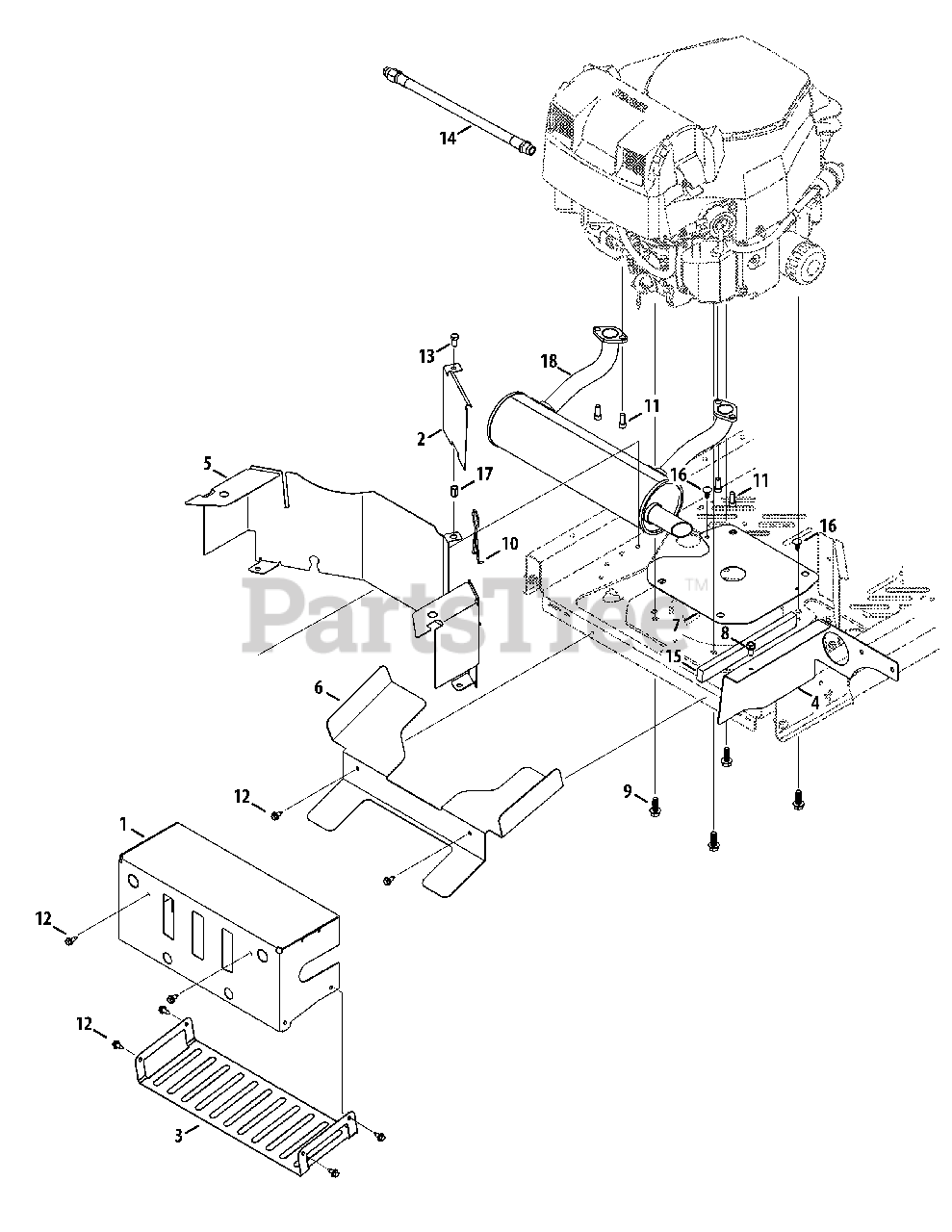

Engine Accessories (Kohler Confidant) Parts Diagram

  • Title

1

Cub Cadet 603-05169

Muffler Shield Bracket
(Superseded to 603-05169A)

$210.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09693

Engine Shield Bracket

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09700

Lower Muffler Shield Bracket

$48.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09706

Pod Shield Bracket, RH

$39.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09718

Engine Shield Bracket
(Superseded to 703-09718A)

$127.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09752

Muffler Mounting Bracket

$69.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09796

Engine Shield Plate

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04683A

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

10

Cub Cadet 747-06306

Tank Support Rod

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1314A

Socket Head Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

14

Cub Cadet 751-10291A

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

In Stock, only 1 left!

0

15

Cub Cadet 721-04713

Foam Tape, 1.00 x .500 x 9.375

$9.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 16

0

17

Cub Cadet 728-05012

Nut, 5/16-18

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 751-11879B

Twin Muffler

$255.99

$

Usually ships in 3-6 days

0
