Z-Force SZ48 (17AIDGHB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kawasaki (2015) Kawasaki FR730V-AS21 Cylinder & Crankcase Parts Diagram

48" Z-Force S Zero-Turn Mower, Kawasaki

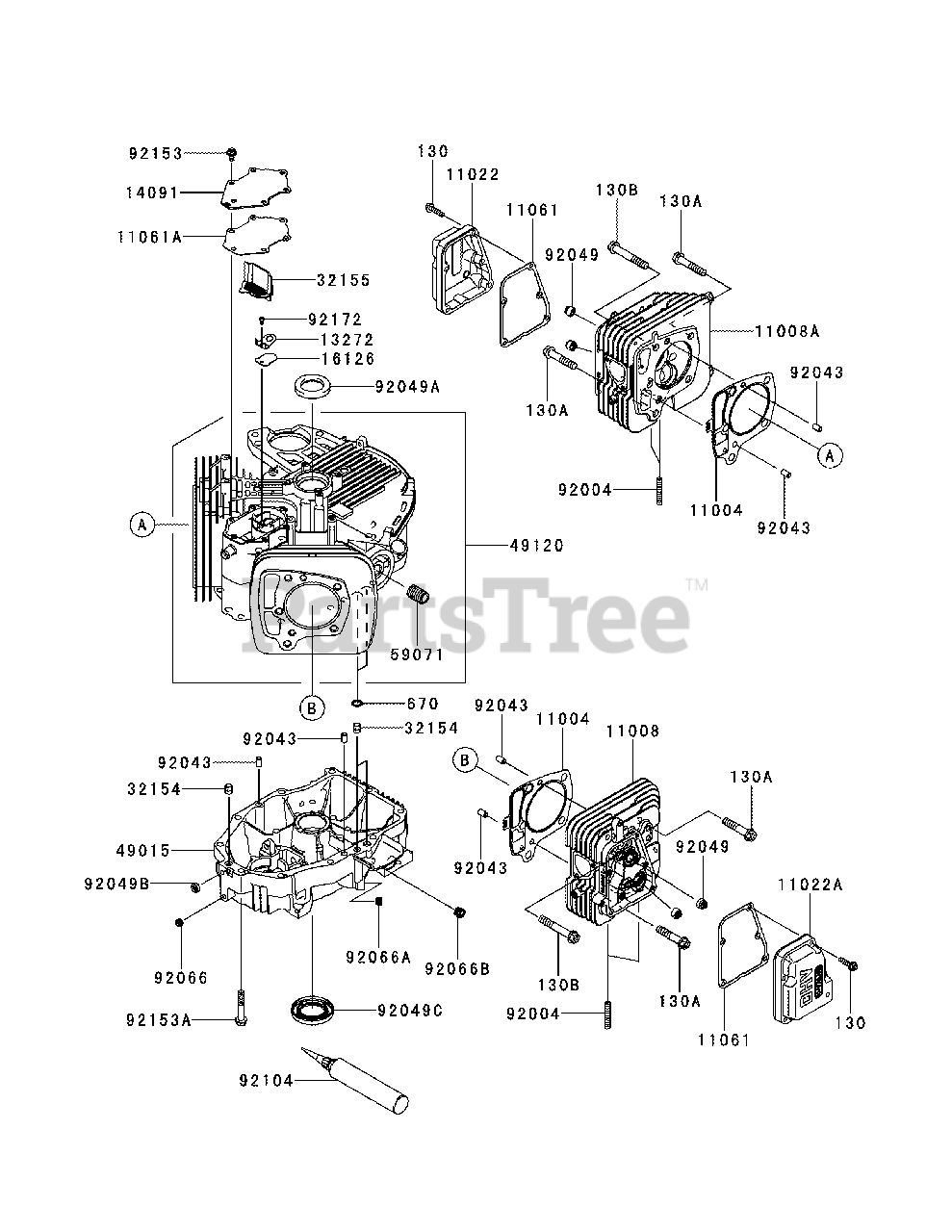

Kawasaki FR730V-AS21 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7026

Head Gaket
(Superseded to KM-11004-0762)

$33.99

$

Usually ships in 3-6 days

0

11008

Cub Cadet KM-11008-0845

Complete Cylinder Head, #2

$236.99

$

Usually ships in 2-5 days

0

11008A

Cub Cadet KM-11008-0861

Complete Cylinder Head, #1

$236.99

$

In Stock, Qty 18

0

11022

Cub Cadet KM-11022-0710

Rocker Case, #1
(Superseded to KM-11022-0046)

$17.99

$

In Stock, only 2 left!

0

11022A

Cub Cadet KM-11022-7020

Rocker Case, #2

$16.99

$

In Stock, only 1 left!

0

11061

Cub Cadet KM-11061-7083

Rocker Case Gasket
(Superseded to KM-11061-1285)

$4.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7094

Breather Gasket

$8.99

$

In Stock, Qty 20+

0

13272

Cub Cadet KM-13272-1374

Breather Plate

$1.99

$

In Stock, Qty 7

0

14091

Cub Cadet KM-14091-7064

Breather Cover

$2.49

$

In Stock, only 1 left!

0

16126

Cub Cadet KM-16126-7020

Breather Valve

$4.99

$

In Stock, Qty 5

0

32154

Cub Cadet KM-32154-7019

Pipe
(Superseded to KM-92043-0858)

$2.49

$

In Stock, Qty 20+

0

32155

Cub Cadet KM-32155-7003

Breather Pipe
(Superseded to KM-32155-2214)

$2.99

$

In Stock, Qty 11

0

49015

Cub Cadet KM-49015-0023

Crankcase Cover

$204.99

$

In Stock, only 1 left!

0

49120

Cub Cadet KM-49120-0858

Complete Crankcase

$609.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-7025

Joint
(Superseded to KM-59071-0743)

$2.99

$

Usually ships in 2-5 days

0

92004

Cub Cadet KM-92004-7024

Stud, 8 x 30

$6.99

$

In Stock, only 2 left!

0

92043

Cub Cadet KM-92043-1263

Pin

$0.99

$

In Stock, Qty 5

0

92049

Cub Cadet KM-92049-7001

Oil Seal, RVC 26 x 11 x 10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Cub Cadet KM-92049-7010

Oil Seal, SD 35 x 48 x 8 R HS

$3.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7019

Oil Seal, SO 8 x 14 x 5 HS

$2.49

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7028

Oil Seal, 38 x 62 x 8MTCLV

$14.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7023

Plug
(Superseded to KM-92066-0880)

$3.99

$

Usually ships in 2-5 days

0

92066A

Cub Cadet KM-92066-0762

Plug
(Superseded to KM-92066-0881)

$4.49

$

In Stock, Qty 6

0

92066B

Cub Cadet KM-92066-2223

Plug

$1.99

$

Usually ships in 2-5 days

0

92104

Cub Cadet KM-92104-0007

Liquid Gasket, TB1217H

$51.99

$

In Stock, only 1 left!

0

92153

Cub Cadet KM-92153-7043

Bolt, 6 x 12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92153A

Cub Cadet KM-92153-7054

Bolt, 8 x 50

$2.99

$

In Stock, Qty 5

0

92172

Cub Cadet KM-92172-0870

Screw, 4 x 8

$0.99

$

In Stock, only 2 left!

0

130

Cub Cadet KM-130BA0625

Flanged Bolt, 6 x 25

$1.49

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130CA1050

Flange Bolt, 10 x 50

$4.49

$

In Stock, Qty 5

0

130B

Cub Cadet KM-130CA1065

Flange Bolt, 10 x 65

$2.99

$

In Stock, only 4 left!

0

670

Cub Cadet KM-670B2011

O-Ring, 11MM

$1.49

$

In Stock, Qty 20+

0
