Z-Force SZ48 (17AIDGHB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kawasaki (2015) Engine Accessories Parts Diagram

48" Z-Force S Zero-Turn Mower, Kawasaki

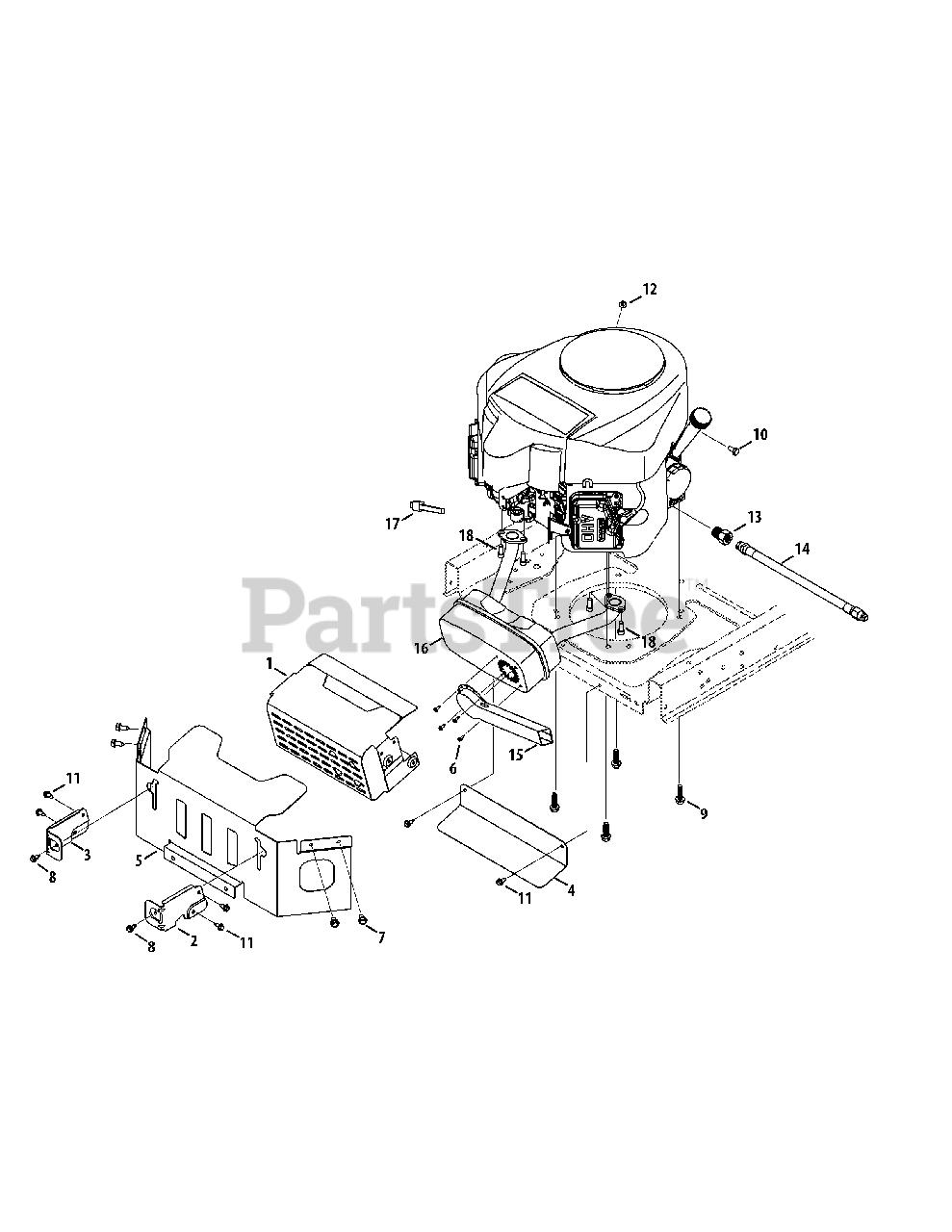

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 603-05156A-0637

Muffler Shield Assembly

$94.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08671A-0637

Muffler Shield Bracket, RH
(Superseded to 703-08671B-0637)

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08695-0637

Muffler Shield Bracket, LH
(Superseded to 703-08695A-0637)

$8.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09195

Lower Heat Shield

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09615

Muffler Shield
(Superseded to 703-09615A)

$56.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0653

Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

9

Cub Cadet 710-1315

Screw, 3/8-16 x 1.25, Kaw.

$4.49

$

In Stock, only 3 left!

0

10

Cub Cadet 710-1376

Hex Cap Screw, M8-1.25 x 16, Kaw.

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 737-04138

Fitting, 1.0 Hex x M20, Kaw.

$25.99

$

In Stock, only 3 left!

0

14

Cub Cadet 751-10291A

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

In Stock, only 2 left!

0

15

Cub Cadet 751-11424A

Muffler Deflector Long

$16.99

$

In Stock, only 1 left!

0

16

Cub Cadet 751-11471A

Twin Muffler, Kaw.
(Superseded to 951-11471F)

$150.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 726-0197

Cable Tie, Kaw.

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-1314A

Socket Hd Screw, 5/16-18 x .750, Koh.

$4.49

$

In Stock, Qty 20+

0
