Z-Force SX48 KW FAB (47RIDGJB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Fab Deck, Kawasaki (2022) Front Axle Parts Diagram

48" Z-Force S Zero-Turn Mower, Fab Deck, Kawasaki

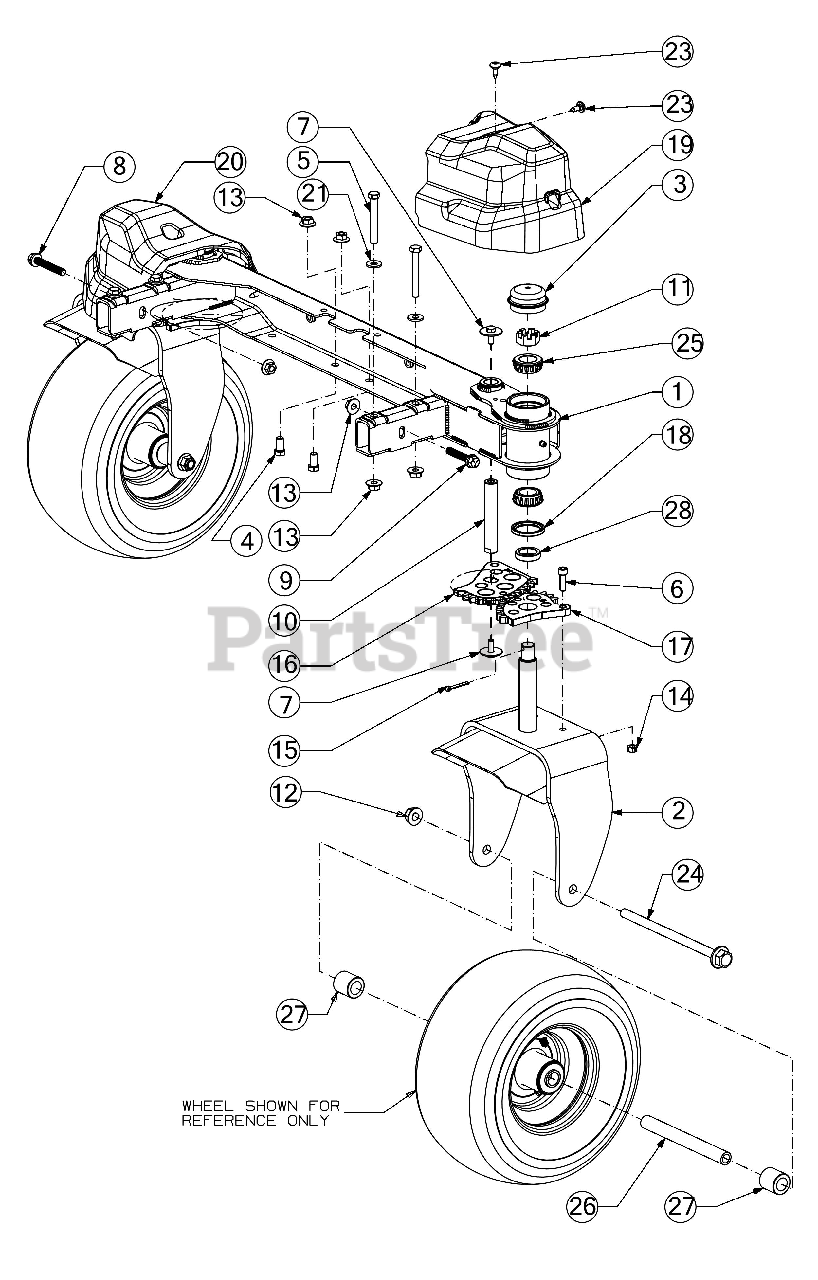

Front Axle Parts Diagram

  • Title
1

Cub Cadet 903-05275

AXLE-FRONT SYNC
(Superseded to 903-05275A)

$566.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 603-05075A

CASTER BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05075A-0637

Caster Bracket Assembly - POWDER BLACK (0637)

$118.99

$

In Stock, only 1 left!

0

Cub Cadet 603-05075A-4021

BRACKET ASM-CASTER - CUB YELLOW 2 (4021)

$118.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10384

AXLE GREASE CAP

$15.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0216

HEX SCREW 3/8-16 X .75

$4.49

$

In Stock, Qty 14

0

5

Cub Cadet 710-04656A

SCREW 3/8-16 X 2.75 GR5

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-06508

SCREW 5/16-18X1.25

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-06041

SCREW 5/16-18 X.75 GR5

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-06045

SCREW 3/8-16 X 2.25 GR5

$5.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-06093

SCREW 3/8-16 X 2.00 GR5

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-06081A

STEERING GEAR PIVOT SHAFT

$22.99

$

In Stock, only 2 left!

0

11

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$11.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

15

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 717-04952

STEERING GEAR

$53.99

$

In Stock, only 1 left!

0

17

Cub Cadet 717-05133

STEERING SPUR GEAR 13T

$51.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 6

0

19

Cub Cadet 731-09291A

AXLE COVER (RH)

$20.99

$

In Stock, only 3 left!

0

20

Cub Cadet 731-09320A

AXLE COVER (LH)

$20.99

$

In Stock, only 1 left!

0

21

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.49

$

In Stock, only 2 left!

0

24

Cub Cadet 738-05192B

SCREW 1/2-13X8.5 GR5

$31.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 741-05055

ROLLER BEARING 47MM X 25MM X 15MM

$19.99

$

In Stock, only 3 left!

0

26

Cub Cadet 750-05351

CASTER AXLE SPACER
(Superseded to 750-05351A)

$20.99

$

In Stock, only 2 left!

0

27

Cub Cadet 750-05352

SPACER .76X1.23X1.25

$7.99

$

Usually ships in 3-6 days

0

28

$5.49

$

In Stock, Qty 6

0
