Z-Force SX48 KW FAB (47RIDGJB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Fab Deck, Kawasaki (2021) Transmission (LH) Parts Diagram

48" Z-Force S Zero-Turn Mower, Fab Deck, Kawasaki

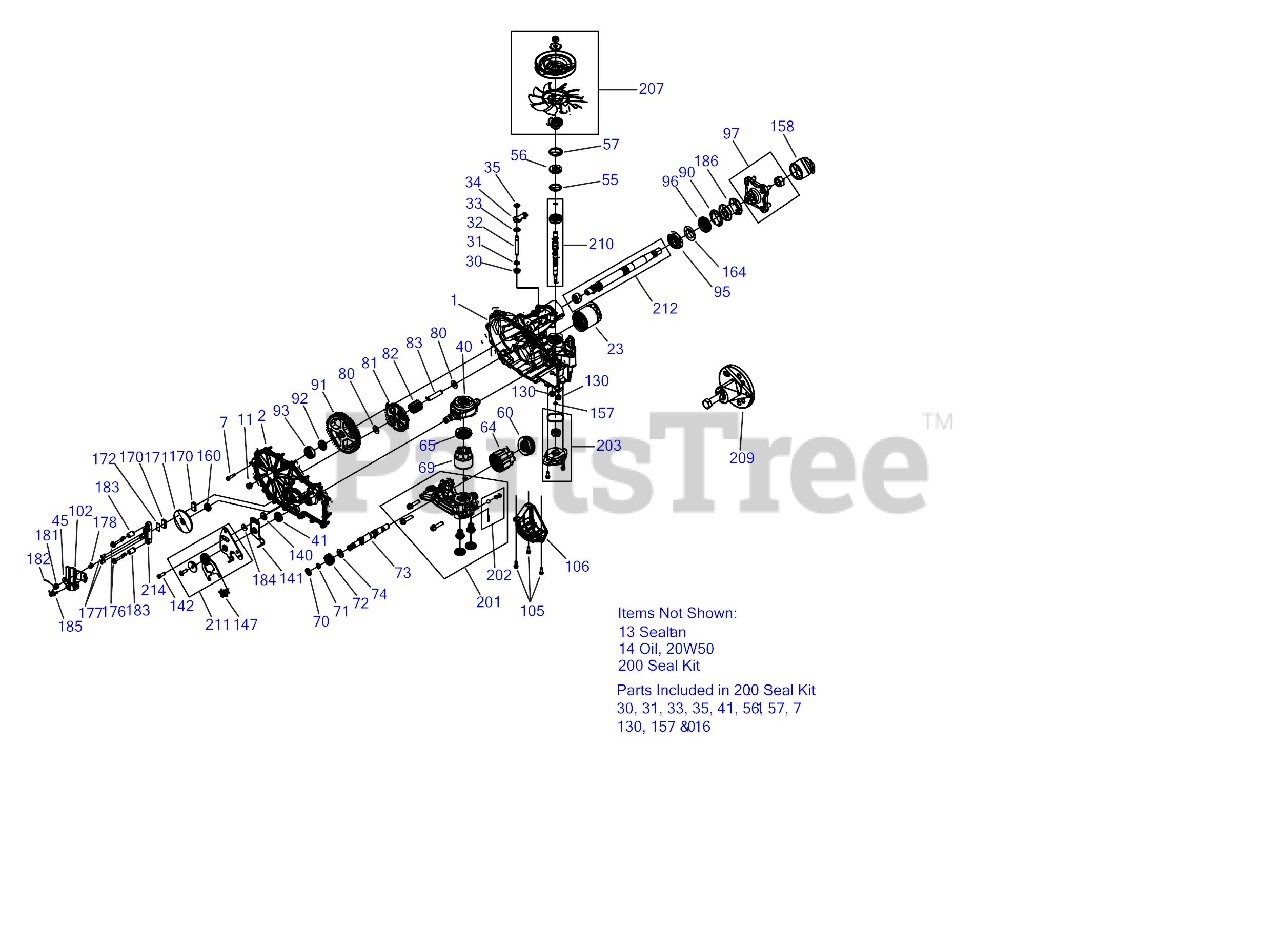

Transmission (LH) Parts Diagram

  • Title

1

Cub Cadet HG-72374

Kit, Main Housing, LH Charge

$291.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-72376

Kit, Cover Side LH Control

$194.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-53246

Screw, Hex Washer

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-9005110-5600

Plug, 9/16-18

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-52114P

Filter, Spin-On 2.6 x 3.0

$32.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-51626

Seal, Lip, .375 x .75 x .25
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51628

Ring, Retaining .375 External

$4.49

$

In Stock, Qty 14

0

32

Cub Cadet HG-52136

Rod, Bypass

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet HG-51627

Ring Retaining .750 Internal

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51910

Arm, Bypass

$14.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-51630

Ring, Ret .375 External

$3.99

$

In Stock, only 1 left!

0

40

Cub Cadet HG-51048

Trunnion, Swashplate

$88.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51140

Seal, Lip 18 x 32 x 7

$9.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0371

Washer, .34 x .88 x .06

$4.49

$

In Stock, only 3 left!

0

55

Cub Cadet HG-50951

Washer, 1.23 x 1.57 x .04

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-51161

Seal, Lip 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-50329

Ring Retaining Internal

$11.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-51462

Bearing, Thrust 35 x 62 x 18
(Superseded to HG-51462P)

$33.99

$

Usually ships in 3-6 days

0

64

Cub Cadet HG-71579

Kit, 16cc Cylinder Block Assembly
(Superseded to HG-72882)

$140.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-50551P

Thrust Bearing, 30 x 52 x 13

$29.99

$

Usually ships in 3-6 days

0

69

Cub Cadet HG-70723

Kit, Block, 7 Piston

$228.99

$

Usually ships in 3-6 days

0

70

Cub Cadet HG-44371

Washer, .63 x 1.00 x .05

$15.99

$

Usually ships in 3-6 days

0

71

Cub Cadet HG-44145

Ring, Reatining, Motor Shaft

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet HG-52341

Gear, 14T (Steel)

$51.99

$

Usually ships in 3-6 days

0

73

Cub Cadet HG-54325

Shaft, Motor

$100.99

$

Usually ships in 3-6 days

0

74

Cub Cadet HG-51069

Washer, .71 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

80

Cub Cadet HG-50132

Washer

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-52110

Gear, 45T

$25.99

$

Usually ships in 3-6 days

0

82

Cub Cadet HG-52586

Gear, 11T (Steel)

$39.99

$

Usually ships in 3-6 days

0

83

Cub Cadet HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-50859

Ring, Retaining 2.25 Internal

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet HG-52108

Gear, 54T

$73.99

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-53336

Spacer, .750 x 1.00 x .257

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet HG-53071

Bearing, Ball 3/4 x 40mm x 12mm

$12.99

$

Usually ships in 3-6 days

0

95

Cub Cadet HG-53656

Bearing, Ball 25.4 x 52 x 15

$17.99

$

In Stock, only 2 left!

0

96

Cub Cadet HG-53699

Seal, Lip, 1.0 x 2.06 x .38

$9.49

$

In Stock, only 2 left!

0

97

Cub Cadet HG-71445

Kit, Hub 4-Bolt

$102.99

$

Usually ships in 3-6 days

0

102

Cub Cadet HG-54440

Arm, Brake

$20.99

$

Usually ships in 3-6 days

0

105

Cub Cadet HG-50752

Screw, Hex Washer 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

106

Cub Cadet HG-53644

Guard, Filter, LH

$17.99

$

Usually ships in 3-6 days

0

130

Cub Cadet HG-54501

Tube, Charge Triple O-Ring

$4.99

$

In Stock, Qty 14

0

140

Cub Cadet HG-52527

Spacer, .320 x 1.005 x .150
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

141

Cub Cadet HG-51945

Arm, Neutral Right

$13.99

$

In Stock, only 1 left!

0

142

Cub Cadet HG-71341

SHCS, 5/16-24 x 7/8 (W/Patch)

$9.49

$

Usually ships in 3-6 days

0

147

Cub Cadet HG-51605

Spring, Extension

$22.99

$

Usually ships in 3-6 days

0

157

Cub Cadet HG-72291

Seal, Gerotor .281 x .420 x .160

$12.99

$

Usually ships in 3-6 days

0

158

Cub Cadet HG-53501

Cap, Axle

$11.99

$

Usually ships in 3-6 days

0

160

Cub Cadet HG-70719

Seal, Lip .625 x 1.00 x .250

$14.99

$

Usually ships in 3-6 days

0

164

Cub Cadet HG-53514

Spacer, 1.355 x 2.035 x .021

$4.99

$

Usually ships in 3-6 days

0

170

Cub Cadet 917-0678

Puck, Brake

$7.49

$

In Stock, only 3 left!

0

171

Cub Cadet HG-53989

Rotor, Brake

$25.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 917-0682

Puck, Plate

$9.99

$

In Stock, Qty 7

0

176

Cub Cadet HG-51146

Screw .250-20 x 2.0 HFS Patch

$3.99

$

Usually ships in 3-6 days

0

177

Cub Cadet 941-0343

Pin, Brake Actuating
(Superseded to 741-0343)

$

$

Not available

178

Cub Cadet HG-50919

Compression Spring

$3.99

$

Usually ships in 3-6 days

0

181

Cub Cadet 912-0273

Nut, Castle 5/16-24

$4.99

$

Usually ships in 3-6 days

0

182

Cub Cadet 914-0507

Pin, Cotter 3/32 x 3/4

$4.49

$

In Stock, Qty 17

0

183

Cub Cadet HG-23711

Spacer

$11.99

$

Usually ships in 3-6 days

0

184

Cub Cadet 736-0371

Washer, .34 x .88 x .06

$4.49

$

In Stock, only 3 left!

0

185

Cub Cadet HG-50884

Spring, Brake Arm Bias

$10.99

$

Usually ships in 3-6 days

0

186

Cub Cadet HG-53496

Tube, Axle 2.03

$4.99

$

Usually ships in 3-6 days

0

200

Cub Cadet HG-71410

Kit. Seal, ZT-2800
(Superseded to HG-73107)

$72.99

$

Usually ships in 3-6 days

0

201

Cub Cadet HG-72567

Kit, Center Section LH Charge

$259.99

$

Usually ships in 3-6 days

0

202

Cub Cadet HG-71436

Kit, Charge Relief

$10.99

$

Usually ships in 3-6 days

0

203

Cub Cadet HG-72274

Kit, Charge

$114.99

$

Usually ships in 3-6 days

0

207

Cub Cadet HG-72135

Kit, Fan Pulley

$63.99

$

In Stock, only 1 left!

0

207

Cub Cadet HG-53994

Fan Only
(Superseded to HG-55217)

$15.99

$

In Stock, only 1 left!

0

207

Cub Cadet HG-53812

Pulley Hub

$6.49

$

Usually ships in 3-6 days

0

207

Cub Cadet HG-51523

Washer

$3.99

$

In Stock, Qty 8

0

207

Cub Cadet HG-44133

Nut

$4.99

$

In Stock, only 4 left!

0

209

Cub Cadet HG-72320

Kit, Hub Puller

$231.99

$

Usually ships in 3-6 days

0

210

Cub Cadet HG-71442

Kit, Input Shaft
(Superseded to HG-73047)

$88.99

$

Usually ships in 3-6 days

0

211

Cub Cadet HG-71588

Kit, RTN Bidirectional

$48.99

$

In Stock, only 1 left!

0

212

Cub Cadet HG-71570

Kit, Shaft Axle

$178.99

$

Usually ships in 3-6 days

0

214

Cub Cadet HG-70633

Kit, Brake Yoke

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-06002B

Transmission Assembly (LH)

$2121.99

$

Usually ships in 3-6 days

0
