Z-Force S60 LP (17AP5GHD710) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kawasaki Propane Mower Deck 60-Inch Parts Diagram

60" Z-Force S Zero-Turn Mower, Kawasaki Propane

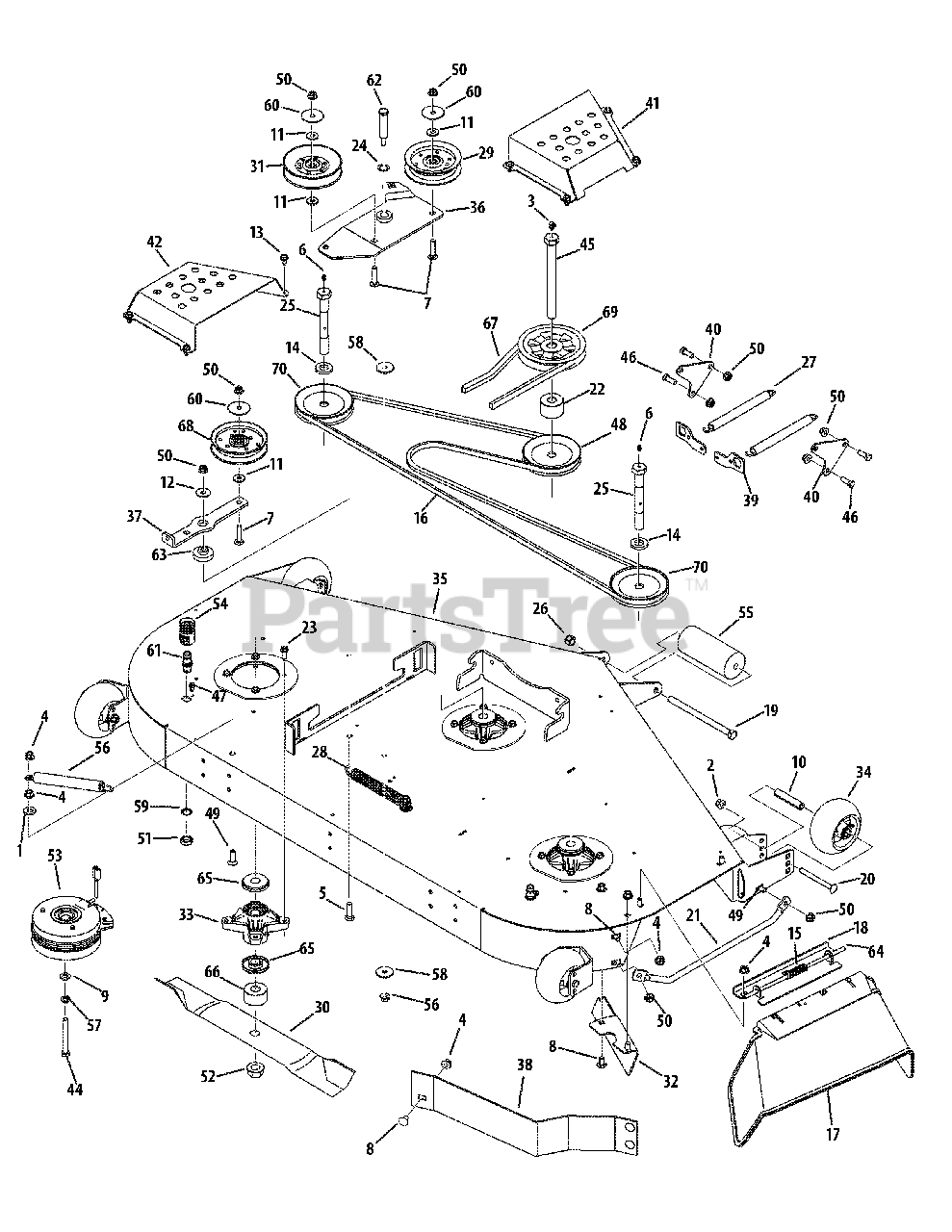

Mower Deck 60-Inch Parts Diagram

  • Title

1

Cub Cadet 00010958

Washer, .532 x 1.06 x .094

$

$

Not available

2

Cub Cadet 00011925

Hex Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

Cub Cadet 737-3004

Grease Fitting, 1/4-28 x .788

$11.99

$

In Stock, Qty 6

0

4

Cub Cadet 00022560

Counterlock Flange Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00060078

Straight Grease Fitting, 1/4-28
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 710-0560

Carriage Bolt, 3/8-18 x 1.75

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 936-3015

Washer, .469 x .875 x .105

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 750-3193

Spacer, .390 x .620 x 3.04

$18.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0133

Washer, .411 x 1.25 x 1.00
(Superseded to 736-0133)

$

$

Not available

13

Cub Cadet 01001161

Flange TT Screw, 5/16-18 x .625
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01003123

Spacer, .812 x 1.47 x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003253

Torsion Spring
(Superseded to 732-04797)

$11.99

$

In Stock, only 4 left!

0

16

Cub Cadet 01005376

V- Belt
(Superseded to 01005376P)

$87.99

$

In Stock, only 2 left!

0

17

Cub Cadet 01006693

Fab Deck Deflector Chute
(Superseded to 01006693P)

$68.99

$

In Stock, Qty 8

0

18

Cub Cadet 01006748-0637

Deflector Chute Bracket

$35.99

$

In Stock, Qty 10

0

19

Cub Cadet 01006961

Hex Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

20

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

21

Cub Cadet 01008644

Fab Deck Chute Finger Guard

$36.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02000454

Spacer, .760 x 2.00 x 1.28

$52.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02000762

Flange Hex TT Screw, 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 02001891

Washer, .625 x 1.00 x .048

$6.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02001987

Hex Screw, 3/4-16 x 6.00
(Superseded to 710-05173A)

$28.99

$

In Stock, only 4 left!

0

26

Cub Cadet 02002299

Nylock Nut, 1/2-20
(Superseded to 712-04316)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02002629

Hook Ext. Spring, .75 x 7.89 x .14

$18.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003712

Hook Ext. Spring, .94 x 7.57 x .14
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

29

Cub Cadet 02004447

Idler Pulley, 4.88

$57.99

$

In Stock, Qty 20+

0

30

Cub Cadet 02005019

Hi-Lift Blade, 21.0
(Superseded to 942-04415)

$35.99

$

In Stock, Qty 20+

0

31

Cub Cadet 02005079

Idler Pulley, 5.06
(Superseded to 756-04522)

$39.99

$

In Stock, only 4 left!

0

32

Cub Cadet 02005195-0637

Deck Chute Baffle

$45.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 918-04426

Deck Spindle Assembly

$112.99

$

In Stock, Qty 20+

0

33

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

Note: Not Shown

$8.49

$

In Stock, Qty 20+

0

33

Cub Cadet 741-04089

Bearing, Cone
(Superseded to 941-04298)

Note: Not Shown

$16.99

$

In Stock, Qty 19

0

33

Cub Cadet 741-04091

Bearing, Cup
(Superseded to 941-04299)

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 750-04409

Spacer, Bearing

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

33

Cub Cadet 737-3000

Fitting, Grease 3/16
(Superseded to 937-3000)

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 634-3159

Deck Wheel

$34.99

$

In Stock, Qty 20+

0

35

Cub Cadet 980-00100-4021

60" Welded Deck
(Superseded to 980-00100A-4021)

$2080.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 680-00105-4021

60" Idler Assembly

$

$

Not available

37

Cub Cadet 703-07010

Deck Idler Arm

$19.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 703-07516-0637

Standard Baffle

$

$

Not available

39

Cub Cadet 703-07632A-0637

Spring Mount Bracket

$14.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 703-07641-0637

Spring Mount Plate

$

$

Not available

41

Cub Cadet 703-07687-4021

60" RH Belt Cover
(Superseded to 703-07687A-4021)

$101.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 703-07688-4021

60" LH Belt Cover
(Superseded to 703-07688A-4021)

$101.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 703-07787-0637

Spindle Reinforcement Plate

$33.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-04379A

Hex Screw, 7/16-20 x 3.50

$6.49

$

In Stock, only 2 left!

0

45

Cub Cadet 710-05110

Hex Screw, 3/4-16 x 8.0
(Superseded to 710-05110A)

$56.99

$

In Stock, only 3 left!

0

46

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 710-0599

Hex Washer TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0817

Hex Washer TT Screw, 5.16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

49

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

50

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

52

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

53

Cub Cadet 917-04754

Electric PTO Clutch
(Superseded to 917-04754A)

$583.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

55

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

56

Cub Cadet 932-0594A

Extension Spring, .91 x 7.33

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

58

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

59

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

60

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

61

Cub Cadet 737-04003D

Water Deck Nozzle

$23.99

$

In Stock, Qty 6

0

62

Cub Cadet 738-04216A

Shoulder Bolt, 3/8-16 x .625 x 2.515

$8.49

$

In Stock, Qty 9

0

63

Cub Cadet 738-04376

Shoulder Spacer, .854 x .280

$9.99

$

In Stock, only 3 left!

0

64

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

65

Cub Cadet 748-3065A

Deck Spindle Spacer

$13.99

$

In Stock, Qty 14

0

66

Cub Cadet 750-05282

Spindle Spacer, .76 x 2.0 x 1.1
(Superseded to 750-05420)

$13.99

$

In Stock, only 1 left!

0

67

Cub Cadet 954-04262

Belt

$79.99

$

In Stock, Qty 6

0

68

Cub Cadet 756-04129B

Idler Pulley, 4.25
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

69

Cub Cadet 756-04430

V-Type Pulley

$137.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 956-1209

V-Type Pulley

$60.99

$

In Stock, only 3 left!

0
