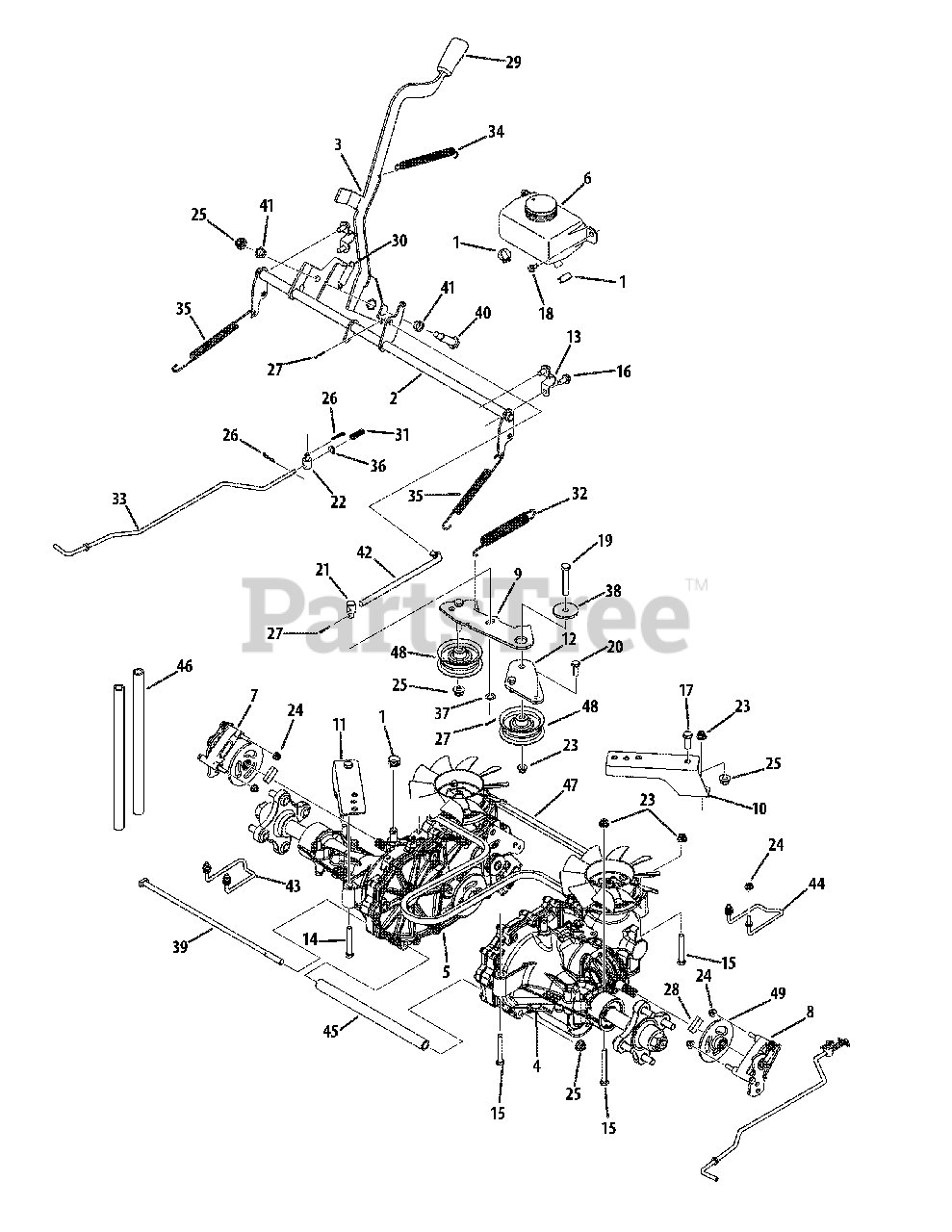

Z-Force S60 LP (17AP5GHD710) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kawasaki Propane Drive System 60-Inch Deck Parts Diagram

60" Z-Force S Zero-Turn Mower, Kawasaki Propane

Drive System 60-Inch Deck Parts Diagram

  • Title

1

Cub Cadet 02001111

Hose Clamp, 1/2inch

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04757

Brake Shaft Assembly

$130.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04773

Brake Handle Assembly

$113.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04875

RH Transmission Assembly

$

$

Not available

5

Cub Cadet 918-04876

LH Transmission Assembly

$

$

Not available

6

Cub Cadet 931-04223

Expansion Tank Assembly

$41.99

$

In Stock, only 1 left!

0

7

Cub Cadet 961-04053

LH Brake Assembly

$

$

Not available

8

Cub Cadet 961-04054

RH Brake Assembly

$74.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-07318A-0637

Idler Bracket
(Superseded to 703-07318C)

$38.99

$

In Stock, Qty 5

0

10

Cub Cadet 703-07367-0637

RH Mount Bracket

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-07368-0637

LH Mount Bracket

$

$

Not available

12

Cub Cadet 703-07484-0637

Idler Mount Plate

$25.99

$

In Stock, only 1 left!

0

13

Cub Cadet 703-07593

Shaft Mount Bracket

$

$

Not available

14

Cub Cadet 710-0176

Hex Screw, 5.16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0395

Hex Screw, 5.16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0514

Hex Screw, 3.8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0599

Hex Washer Screw, 1.4-20 x .500

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3011

Hex Screw, 3.8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3038

Hex Screw, 5.16-18 x .875

$4.99

$

In Stock, only 3 left!

0

21

Cub Cadet 711-0832

Ferrule, 3.8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

22

Cub Cadet 711-1530

Ferrule, .325 x .312

$

$

Not available

23

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04064

Flange Lock Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 914-0507

Cotter Pin, 3.32 x .750

$4.49

$

In Stock, Qty 17

0

28

Cub Cadet 917-0678

Brake Pad

$7.49

$

In Stock, only 3 left!

0

29

Cub Cadet 731-04735

Selector Handle

$20.99

$

In Stock, only 1 left!

0

30

Cub Cadet 932-0209

Extension Spring, .48 x 2.03

$7.99

$

In Stock, only 2 left!

0

31

Cub Cadet 732-0335

Compression Spring, .405 x 1.17

$

$

Not available

32

Cub Cadet 732-04229

Extension Spring, .75 x 6.02

$20.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-04688A

Transmission Bypass Lever Wire

$20.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 732-0963

Extension Spring, .50 x .6.37

$9.99

$

In Stock, only 4 left!

0

35

Cub Cadet 732-0994

Extension Spring, .500 x 7.0

$10.99

$

In Stock, Qty 9

0

36

Cub Cadet 936-0175

Spring Washer, .265 x .562 x .025

$3.99

$

In Stock, only 3 left!

0

37

Cub Cadet 936-0314

Thrust Washer, .375 x .70 x .030
(Superseded to 736-0314)

$

$

Not available

38

Cub Cadet 738-04392

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, only 3 left!

0

39

Cub Cadet 738-04423

Rod, .328 x 14.00

$

$

Not available

40

Cub Cadet 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 741-0491

Flange Bearing, .500 x .34

$5.49

$

In Stock, only 3 left!

0

42

Cub Cadet 747-05139A

Disenage Brake Rod

$12.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 747-05277

LH Rod Keeper
(Superseded to 747-05277B)

$15.99

$

In Stock, only 1 left!

0

44

Cub Cadet 747-05278

RH Rod Keeper
(Superseded to 747-05278B)

$16.99

$

In Stock, only 1 left!

0

45

Cub Cadet 750-05346

Transmission Spacer, 10.5

$178.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 751-11531

Fuel Hose, 1.2 x 12.00

$15.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 954-04250

Belt

$43.99

$

In Stock, Qty 6

0

48

Cub Cadet 756-04224

Flat Idler Pulley, 2.75

$26.99

$

In Stock, Qty 20+

0

49

Cub Cadet 761-04061

Brake Disc

$

$

Not available
