Z-Force S60 KH FAB (17ASDGHD056) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Fab Deck, Kohler (2017) Deck Lift Parts Diagram

60" Z-Force S Zero-Turn Mower, Fab Deck, Kohler

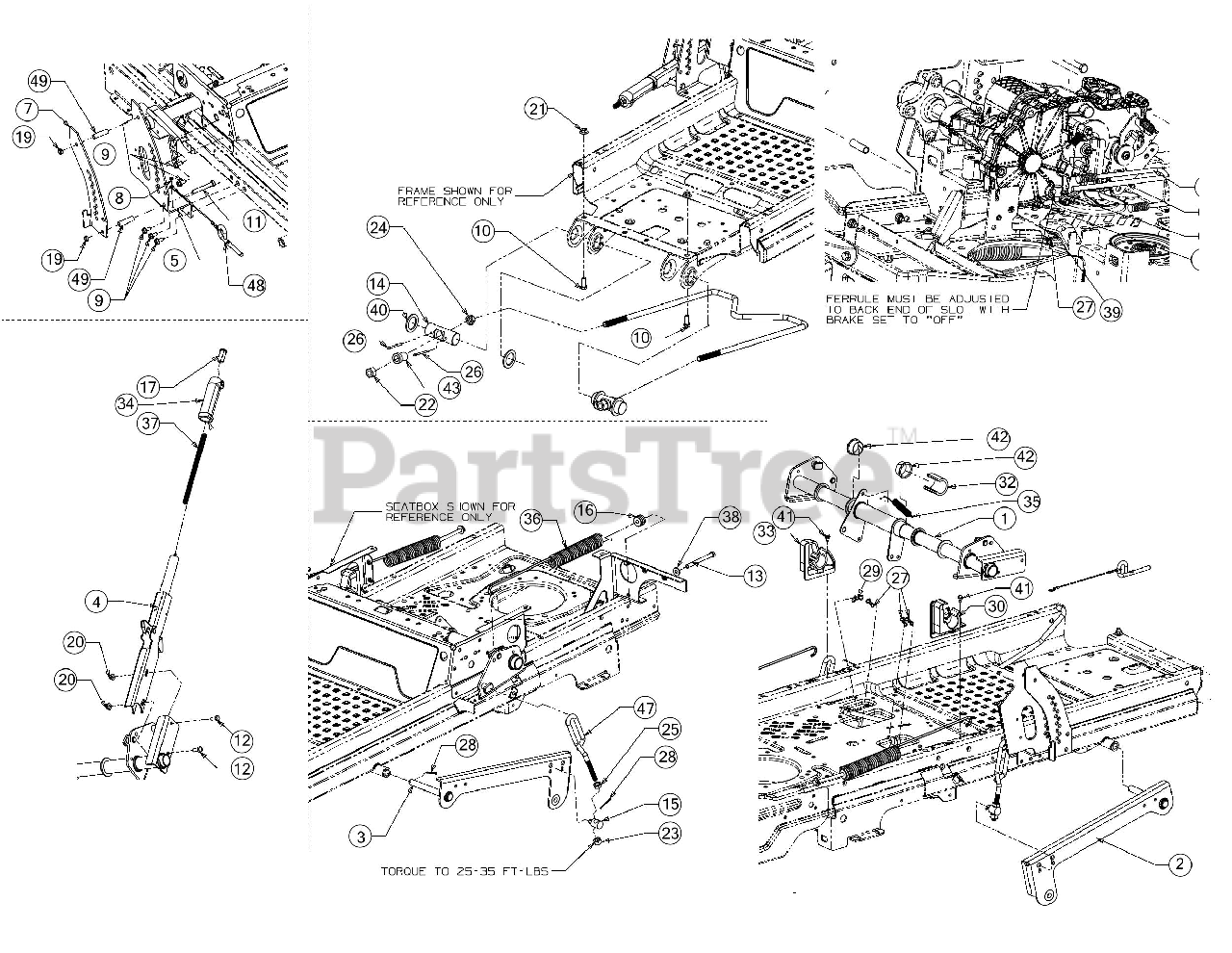

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 603-04973A-0637

DECK LIFT SHAFT ASSEMBLY

$162.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05086A

LIFT ARM-(RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05086A-0637

Lift Assembly, RH - POWDER BLACK (0637)

$55.99

$

In Stock, only 1 left!

0

Cub Cadet 603-05086A-0691

LIFT ARM-RH - BLACK JACK (0691)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05086A-4021

LIFT ARM-RH - CUB YELLOW 2 (4021)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05086A-4033

LIFT ARM-RH - FLINT MICA (4033)

$55.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-05087A

LIFT ARM-(LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05087A-0637

LIFT ARM-LH - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05087A-0691

LIFT ARM-LH - BLACK JACK (0691)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05087A-4021

LIFT ARM-LH - CUB YELLOW 2 (4021)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05087A-4033

LIFT ARM-LH - FLINT MICA (4033)

$55.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 903-05143A

LATCH HANDLE ASSEMBLY

$89.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-05208A

LIFT BRACKET ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05208A-0637

BRACKET ASM-LIFT - POWDER BLACK (0637)

$95.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05208A-4021

BRACKET ASM-LIFT - CUB YELLOW 2 (4021)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05208A-0691

BRACKET ASM-LIFT - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05208A-4033

BRACKET ASM-LIFT - FLINT MICA (4033)

$77.99

$

Usually ships in 3-6 days

0

$77.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 647-05027

BRAKE ROD ASSEMBLY

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09936

OUTER INDEX BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09936-4021

BRKT-OUTER INDEX - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09936-0637

BRACKET-OUTER INDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09936-0691

BRACKET-OUTER INDE - BLACK JACK (0691)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09936-4033

BRKT-OUTER INDEX - FLINT MICA (4033)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 910-0224

HEX SCREW AB-TAP #10-16 X 0.500

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04484

SCREW 5/16-18 X .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

12

Cub Cadet 710-3008

SCREW 5/16-18 X .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3279

SCREW 3/8-16X4.25 GR5

$8.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 711-06216A

LIFT PIN

$31.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-06284

LIFT LINK FERRULE

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-0635

SPRING INSERT

$44.99

$

In Stock, only 1 left!

0

17

Cub Cadet 711-0642A

LIFT HANDLE BUTTON

$7.99

$

In Stock, Qty 12

0

18

Cub Cadet 911-0832

FERRULE 3/8-24 X .375

$15.99

$

In Stock, only 4 left!

0

19

Cub Cadet 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 14

0

22

Cub Cadet 712-05045A

NUT 5/8-11

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-05046

HEX NUT NYLOK 1/2-13

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 912-3015

HEX NUT
(Superseded to 712-3015)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 912-3048

HEX NUT
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

0

27

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

28

Cub Cadet 914-0470

COTTER PIN
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 3 left!

0

31

Cub Cadet 731-09683

DECK LIFT BRACKET

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-09687

SPACER-1.375 SHAFT

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-09707

DECK LIFT BRACKET (LH)

$12.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 731-3158

LIFT HANDLE GRIP

$17.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 732-04587

EXTENSION SPRING .63 X 4.95

$7.49

$

In Stock, Qty 12

0

36

Cub Cadet 732-05096

EXTENSION SPRING

$34.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 732-3097

COMPRESSION SPRING

$14.99

$

In Stock, only 4 left!

0

38

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 936-0314

WASHER THRUST .375X.70X.030
(Superseded to 736-0314)

$

$

Not available

40

Cub Cadet 736-05070

FLAT WASHER

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-04278

SHOULDER SCREW 1/4-20X.50 19PSH"

$6.99

$

In Stock, Qty 5

0

42

Cub Cadet 741-05059

FLANGE BEARING

$5.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 741-05075A

FLANGE BEARING

$5.49

$

In Stock, only 2 left!

0

45

Cub Cadet 747-05592B

DISENGAGEMENT BRAKE ROD

$22.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 747-05725A

DECK FRONT HANGER ROD

$56.99

$

In Stock, only 1 left!

0

47

Cub Cadet 747-06259A

LIFT ADJUSTMENT LINK

$19.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 747-06355

LOCK ROD

$32.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-06031

SPACER

$5.49

$

Usually ships in 3-6 days

0
