Z-Force S60 KH (53AH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler Seat & Frame Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

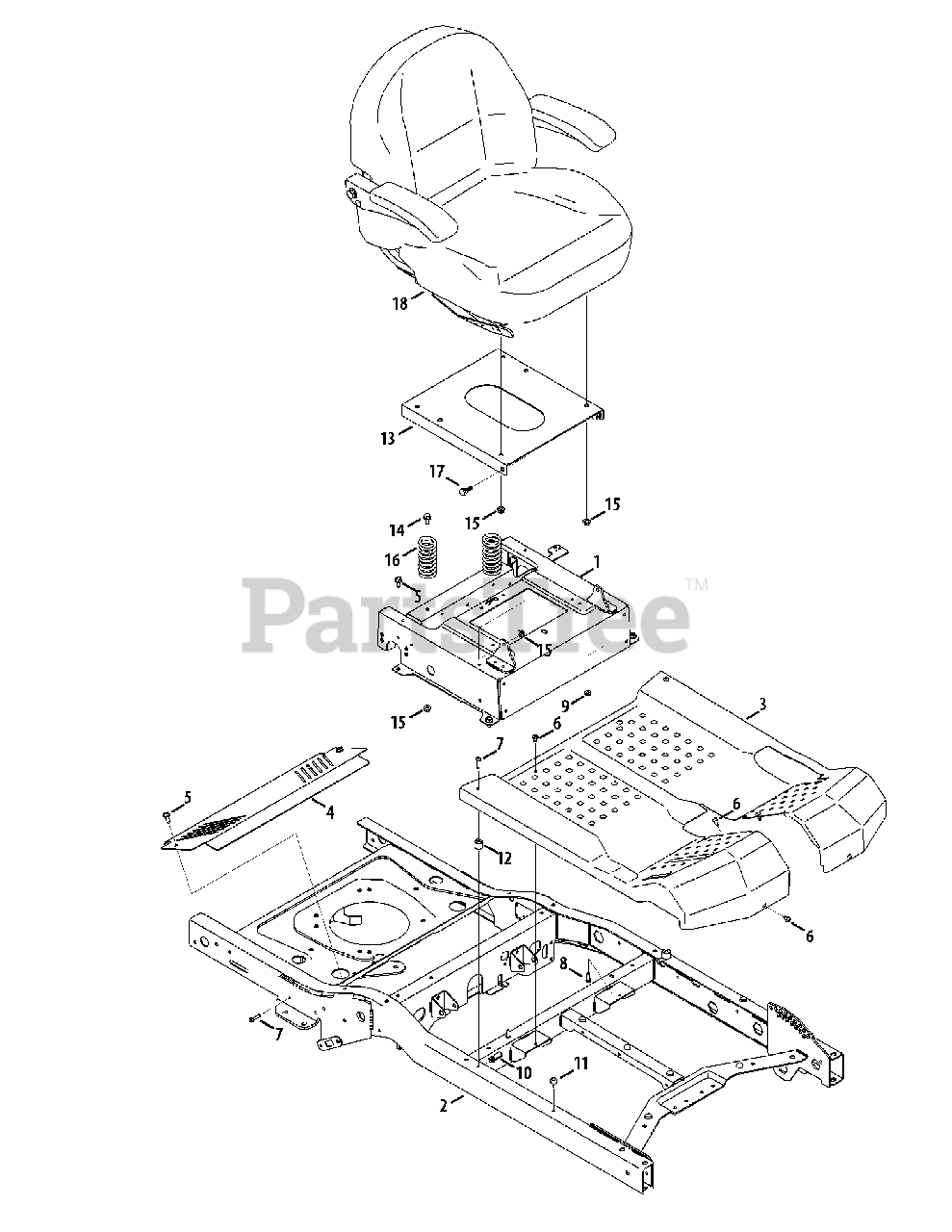

Seat & Frame Parts Diagram

  • Title

1

Cub Cadet 603-04805

Seat Mount Frame
(Superseded to 603-04805A)

Variations

Cub Cadet 603-04805-4021

USE 603-04805A-4021 BOX ASM-S - CUB YELLOW 2 (4021)

$234.99

$

Usually ships in 3-6 days

0

$189.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04862

Frame Assembly
(Superseded to 603-04862B)

Variations

Cub Cadet 603-04862-0637

USE 603-04862B-0637 FRAME ASM - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-07315A

Floor Board

Variations

Cub Cadet 703-07315A-0637

FLOORBOARD ZF-S - POWDER BLACK (0637)

$184.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07315A-4021

FLOORBOARD ZF-S - CUB YELLOW 2 (4021)

$

$

Not available

$160.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07473A

Transmission Cover

Variations

Cub Cadet 703-07473A-0637

COVER-TRANSMISSION - POWDER BLACK (0637)

$74.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

7

Cub Cadet 710-05074

Screw, 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04092

Speed Nut, 1/4-20, U-Type

$5.99

$

In Stock, only 2 left!

0

11

Cub Cadet 935-0199A

Bumper, .62 x .22
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

12

Cub Cadet 750-05373

Spacer, .281 x .750 x .680

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-07668C-0637

Seat Base
(Superseded to 703-07668E-0637)

$

$

Not available

14

Cub Cadet 710-04043

Hex Washer Screw, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 732-04561

Comp. Spring, 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 757-04146

Seat w/ Arms
(Superseded to 757-04146A)

$904.99

$

Usually ships in 3-6 days

0
