Z-Force S60 KH (53AH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler Kohler CV730-3134 Head, Valve & Breather Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

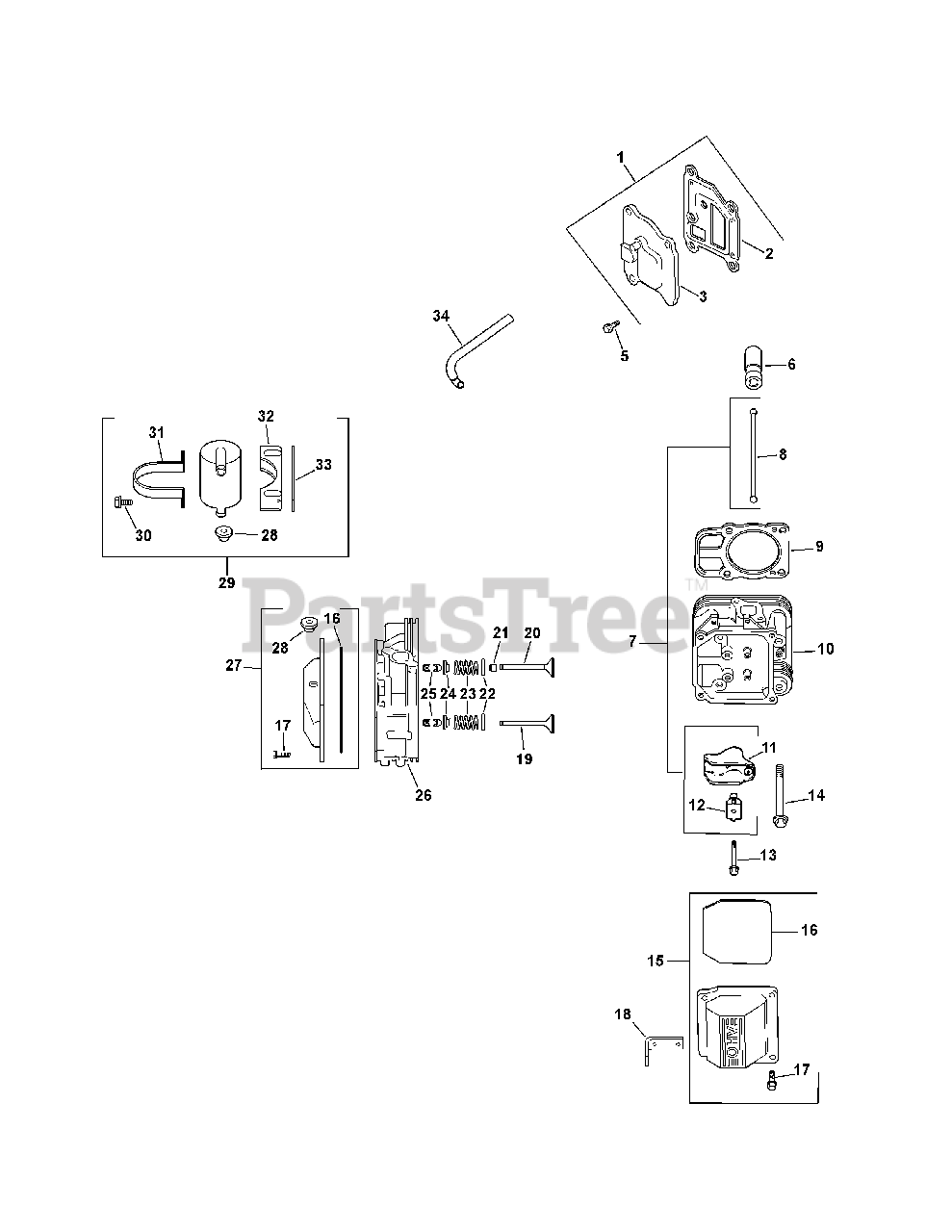

Kohler CV730-3134 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

KIT, BREATHER COVER W/GASKET

Note: (Includes 2-4)

$

$

Not available

2

Cub Cadet KH-24-041-67-S

BREATHER GASKET

$13.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-096-87-S

KIT, BREATHER COVER
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-25-139-60-S

PLUG, CTSK PIPE 1/8''

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-645020-S

SCREW, FLG THD FRM M6X1.0X20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-351-07-S

LIFTER, VALV! E HYDRAULIC
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, Qty 9

0

7

Cub Cadet KH-24-755-66

KIT, VALVE TRAIN

Note: (Includes 8,11,12)

$

$

Not available

8

Cub Cadet KH-24-411-05

ROD, PUSH

$

$

Not available

9

Cub Cadet KH-24-841-03-S

KIT, CYL HEAD GASKET(C730-745)
(Superseded to KH-24-841-04-S)

Note: (Includes head mounting hardware)

$45.99

$

In Stock, Qty 16

0

10

Cub Cadet KH-24-318-72-S

KIT, CYLINDER HEAD #2
(Superseded to KH-24-318-116-S)

$

$

Not available

11

Cub Cadet KH-25-186-01

ARM, ROCKER

$

$

Not available

12

Cub Cadet KH-24-599-02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

13

Cub Cadet KH-M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

14

Cub Cadet KH-62-086-08-S

SCREW,FLG M10X1.5X90

$5.99

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-755-141-S

KIT, VALVE COVER-PLAIN

Note: (Includes 16,17)

$35.99

$

In Stock, Qty 5

0

16

Cub Cadet KH-24-153-23-S

O-RING

$18.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-086-32

SCREW, SHOULDER

$

$

Not available

18

Cub Cadet KH-25-445-01-S

STRAP, LIFTING
(Superseded to KH-25-445-03-S)

$

$

Not available

19

Cub Cadet KH-24-016-01

VALVE, EXHAUST (STD)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 14

0

19

Cub Cadet KH-24-016-02

VALVE, EXHAUST (.25)

$

$

Not available

20

Cub Cadet KH-24-017-01

VALVE, INTAKE (STD)

$

$

Not available

20

Cub Cadet KH-24-017-02

VALVE, INTAKE (.25)

$

$

Not available

21

Cub Cadet KH-66-032-05-S

SEAL, VALVE STEM
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

22

Cub Cadet KH-235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-24-089-02

SPRING, VALVE

$

$

Not available

24

Cub Cadet KH-12-173-01

CAP, VALVE SPRING
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 3 left!

0

25

Cub Cadet KH-12-755-03

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

26

Cub Cadet KH-24-318-69-S

KIT, CYLINDER HEAD #1
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

27

Cub Cadet KH-24-755-142-S

KIT, BREATHER VALVE COVER

Note: (Includes 16,17,28)

$38.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-25-313-03-S

GROMMET, RUBBER

$11.99

$

In Stock, only 3 left!

0

29

Cub Cadet KH-24-755-57-S

KIT, BREATHER SEPARATOR
(Superseded to KH-24-755-241-S)

Note: (Includes 28, 30-33)

$90.99

$

In Stock, Qty 6

0

30

Cub Cadet KH-M-545016-S

SCREW, FLG THD FRM M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-24-445-02

STRAP, BREATHER
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

32

Cub Cadet KH-24-126-44

BRACKET, BREATHER SEPARATOR

$

$

Not available

33

Cub Cadet KH-24-112-12

SPACER

$

$

Not available

34

Cub Cadet KH-24-326-93-S

BREATHER HOSE

$13.99

$

In Stock, only 1 left!

0
