Z-Force S60 (53BH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler (2013) Kohler CV730-3148 Head, Valve & Breather Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

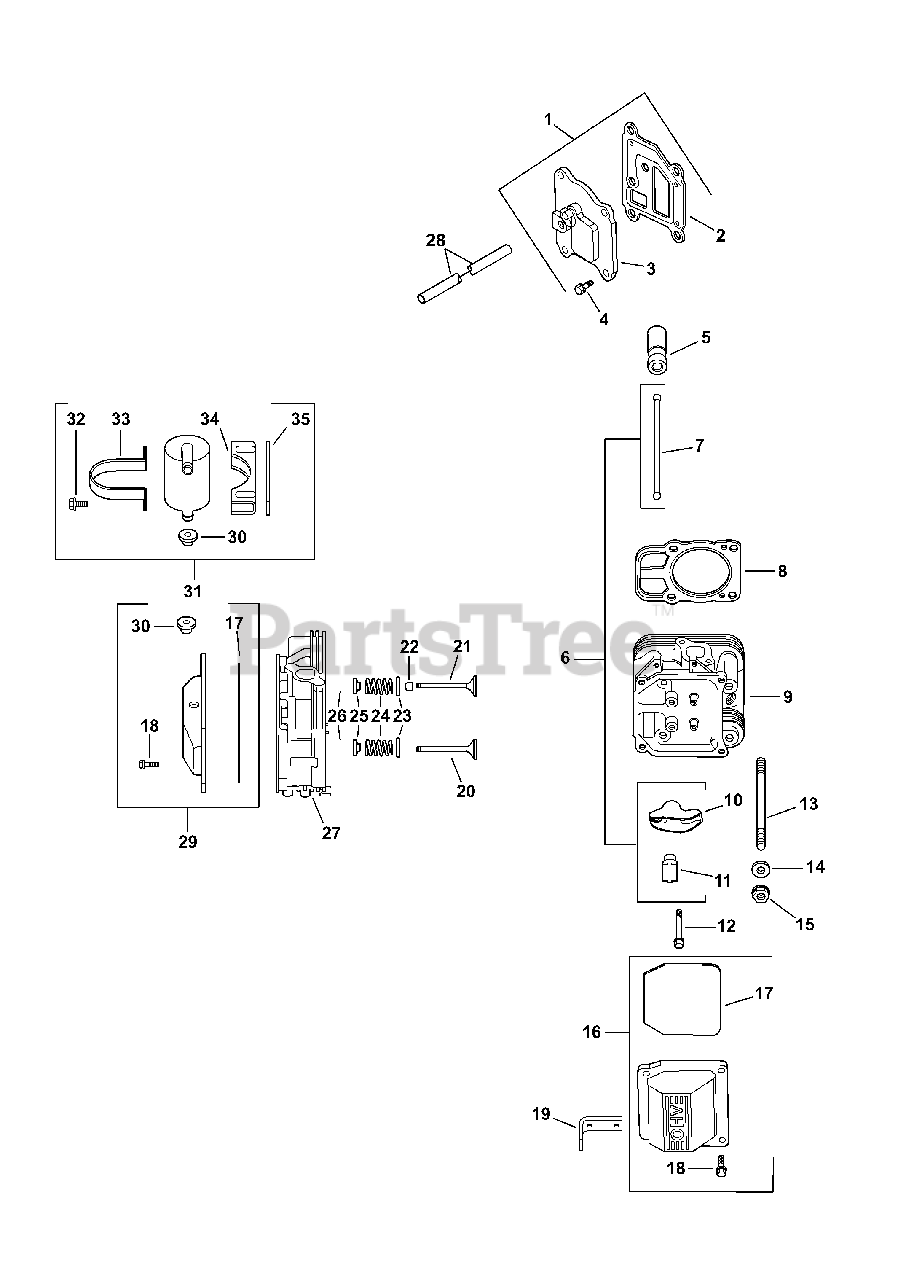

Kohler CV730-3148 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Kit, Breather Cover W/Gasket (Includes 2-4)

$

$

Not available

2

Cub Cadet KH-24-041-67-S

Gasket, Breather

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-87-S

Cover, Breather
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-25-086-396-S

Screw, Flg Thd Frm M6x1.0x20

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-10-S

Hydraulic Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-24-755-66

Kit, Valve Train (Includes 7,10,11)

$

$

Not available

7

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

8

Cub Cadet KH-24-841-04-S

Kit, Cylinder Head Gasket

Note: (Includes Head Mtg Hdwe)

$45.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-318-116-S

Kit, #2 Cylinder Head Assy

$

$

Not available

10

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

11

Cub Cadet KH-24-599-02-S

Pivot, Rocker Arm

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-M-640034-S

Screw, Flg M6x1.0x34

$2.49

$

In Stock, Qty 18

0

13

Cub Cadet KH-24-072-09-S

Stud, M8x1.25, M10x1.5, 105mm

$6.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-468-16-S

Washer, Flat 8.6 Mm

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-100-10-S

Nut, Flg M8x1.25

$4.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-755-141-S

Kit, Plain Rocker Cover (Includes 17,18)

$35.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-153-30-S

O-Ring, Valve Cover

$11.99

$

In Stock, only 3 left!

0

18

Cub Cadet KH-M-651030-S

Screw, Flg M6x1.0x30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-25-445-01-S

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

20

Cub Cadet KH-24-016-01

Valve, Exhaust (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

20

Cub Cadet KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

21

Cub Cadet KH-24-017-01

Valve, Intake (Std)

$

$

Not available

21

Cub Cadet KH-24-017-02

Valve, Intake (.25)

$

$

Not available

22

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

25

Cub Cadet KH-25-173-28-S

Cap, Valve Spring

$8.49

$

In Stock, Qty 5

0

26

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-318-108-S

Kit, #1 Cylinder Head Assy
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-24-326-63-S

Hose, Breather

$6.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-24-755-142-S

Kit, Breather Rocker Cover (Includes 17,18,30)

$38.99

$

In Stock, only 1 left!

0

30

Cub Cadet KH-25-313-03-S

Grommet, Rubber

$11.99

$

In Stock, only 3 left!

0

31

Cub Cadet KH-24-755-57-S

Kit, Breather Separator (Inc. 30-35)
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

32

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

33

Cub Cadet KH-24-445-02

Strap, Breather
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

34

Cub Cadet KH-24-126-44

Bracket, Breather Separator

$

$

Not available

35

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

Cub Cadet KH-24-755-147-S

Kit, Cylinder Head Hardware (Not Shown)

Note: (Services 1 Head. Quantities ListedAre For Both Heads)(Includes 7,10-12,20-26)

$96.99

$

In Stock, only 3 left!

0
