Z-Force S60 (53BH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler (2012) Kohler CV730-3148 Fuel System Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

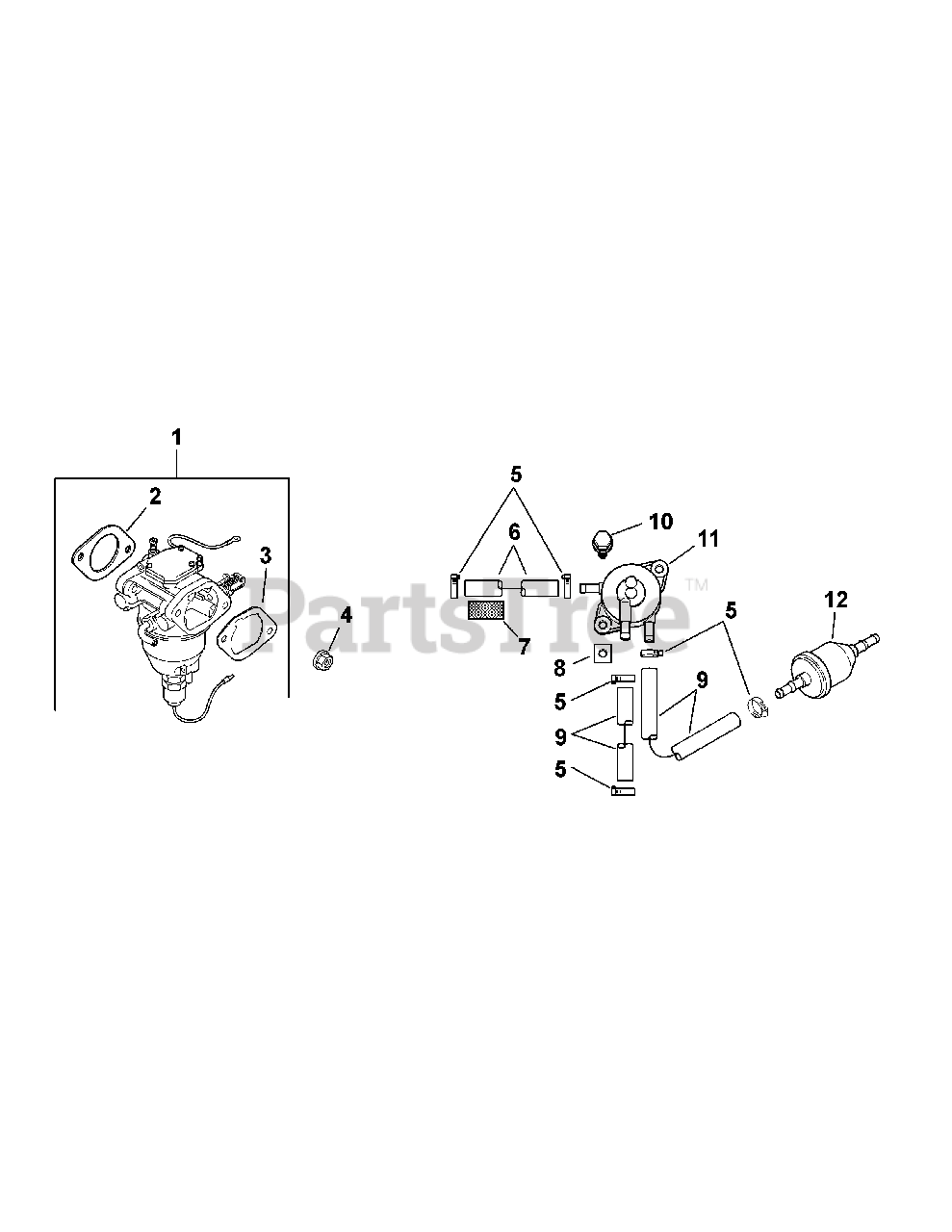

Kohler CV730-3148 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-92-S

Kit, Carburetor W/Gaskets (Includes 2,3)
(Superseded to KH-24-853-317-S)

$708.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-15

Gasket, Carburetor

$

$

Not available

3

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

4

Cub Cadet KH-M-641060-S

Nut, Flg M6x1.0

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-25-237-31-S

Clamp, Hose

$4.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-353-12

Line, Flex 11" Pump-Pulse (Air Only)

$

$

Not available

7

Cub Cadet KH-24-431-02-S

Sleeve, Insulating 14"

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-25-100-37-S

Nut, Plastic

$2.49

$

In Stock, Qty 7

0

9

Cub Cadet KH-25-111-72-S

Line, Fuel
(Superseded to KH-25-111-81-S)

Note: (24"-Cut To Length)

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet KH-24-086-12

Screw, Tap M6x1.7x18

$

$

Not available

11

Cub Cadet KH-24-393-16

Pump, Fuel

$

$

Not available

12

Cub Cadet KH-25-050-22-S1

Filter, Fuel

$9.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-18-S

Kit, Repair Overhaul

Note: Not shown

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Kit, Repair Service Choke

Note: Not shown

$

$

Not available

Cub Cadet KH-24-757-20

Kit, Repair Service Gasket

Note: Not shown

$

$

Not available

Cub Cadet KH-24-757-21-S

Kit, ACC Pump w/Gaskets

Note: Not shown

$120.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-22

Kit, Repair Solenoid Valve

Note: Not shown

$

$

Not available

Cub Cadet KH-24-234-02-S

Bowl Float

Note: NLA - Order from Kohler, Not shown

$137.99

$

Usually ships in 2-5 days

0
