Z-Force S60 (53BH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler (2012) Kohler CV730-3148 Engine Controls Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

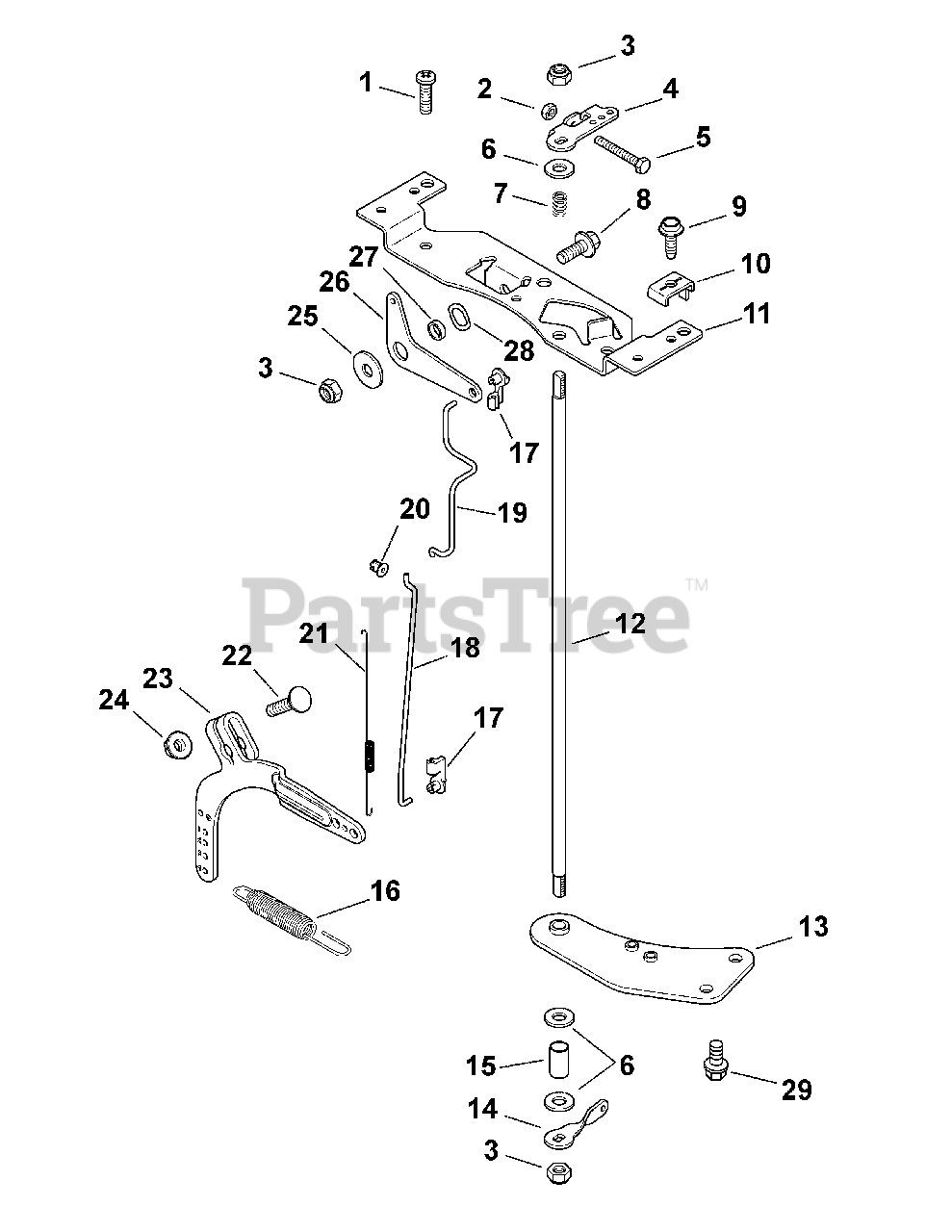

Kohler CV730-3148 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-24-086-06

Screw, Phl Hd 11-16X3/4"

$

$

Not available

2

$2.49

$

In Stock, only 4 left!

0

3

Cub Cadet KH-M-647060

Nut, Lock M6X1.0

Note: NLA - Order from Kohler

$

$

Not available

4

Cub Cadet KH-24-090-09

Lever, Throttle Control

$

$

Not available

5

Cub Cadet KH-M-401030

Screw, Cap M4X0.7X30

$

$

Not available

6

Cub Cadet KH-X-25-72

Washer, Flat 1/4"

$

$

Not available

7

Cub Cadet KH-24-089-20

Spring, Throttle Shaft

$

$

Not available

8

Cub Cadet KH-M-639016-S

Screw, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

9

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-126-111-S

Bracket, Control
(Superseded to KH-24-126-219-S)

$37.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-24-144-11

Shaft, Throttle

Note: NLA - Order from Kohler

$

$

Not available

13

Cub Cadet KH-24-126-162-S

Bracket, Throttle Shaft

$8.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-24-090-12

Lever Throttle Control

$

$

Not available

$

$

Not available

16

Cub Cadet KH-24-089-47-S

Spring, Governor

$8.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

18

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

19

Cub Cadet KH-24-079-10

Linkage, Choke

$

$

Not available

20

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-24-089-01

SPring, Linkage

$

$

Not available

22

Cub Cadet KH-24-211-03-S

Bolt, Rd Hd Sq Neck M6X1.0X25

$2.49

$

In Stock, Qty 15

0

23

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

24

Cub Cadet KH-M-641060-S

Nut, Flg M6x1.0

$4.49

$

In Stock, Qty 8

0

25

Cub Cadet 736-0173

Washer, Flat 1/4"

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet KH-24-090-20

Lever, Choke

Note: NLA - Order from Kohler

$

$

Not available

$7.49

$

In Stock, only 2 left!

0

28

Cub Cadet KH-277341

Washer, Spring 3/8"

$

$

Not available

29

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6x1.0x16

$3.99

$

In Stock, Qty 13

0
