Z-Force S60 (53BH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler (2012) Kohler CV730-3148 Crankcase Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

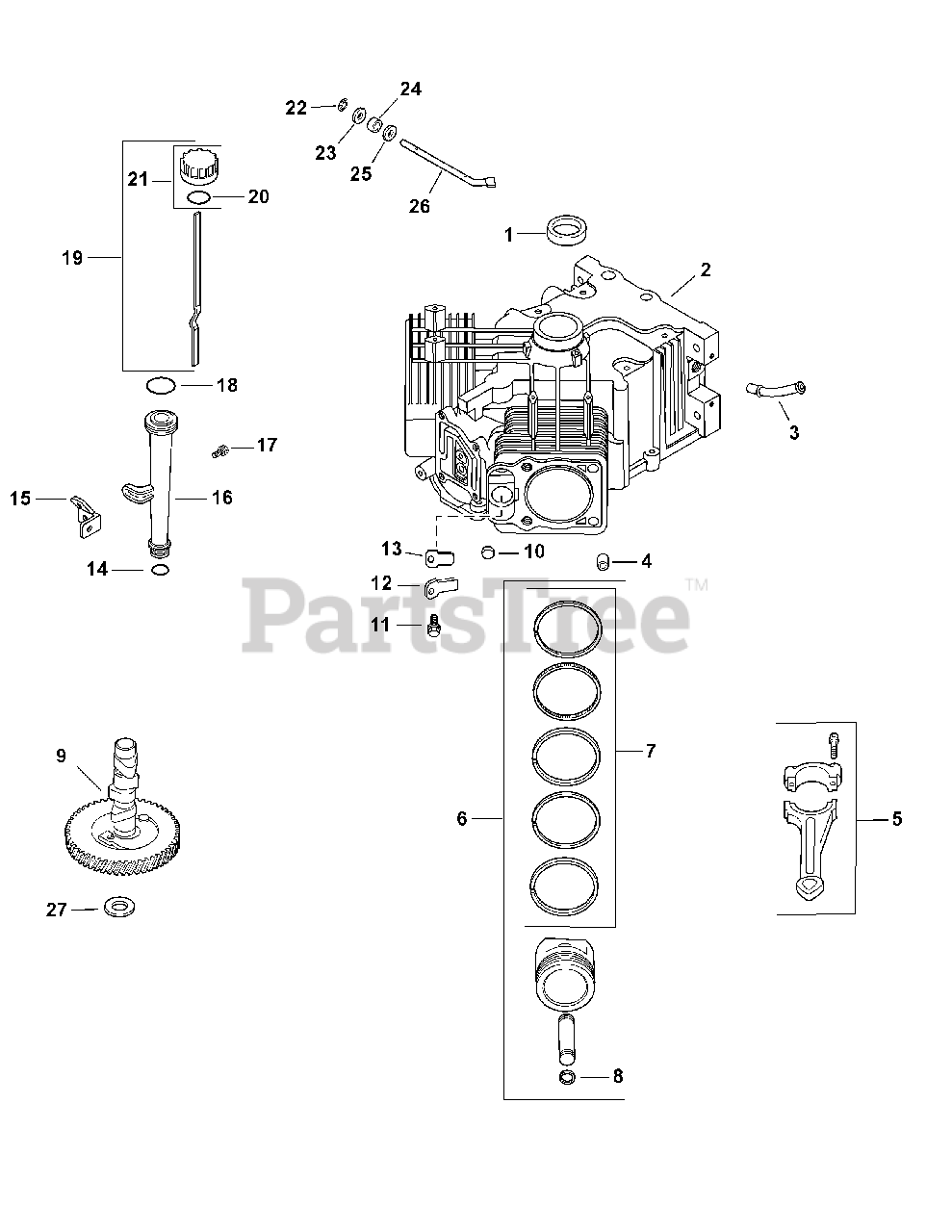

Kohler CV730-3148 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-19-S

Seal, Oil

$7.49

$

In Stock, Qty 20+

0

2

Crankcase

Note: (Use Shortblock or Miniblock)

$

$

Not available

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-28-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-24-067-29-S

Connecting Rod (.25)
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-874-01-S

Kit, Piston w/ Ring (STD) (Includes 7, 8)
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-25-874-02-S

Kit, Piston w/ Ring (.08)
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-874-03-S

Kit, Piston w/ Ring (.25)
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-874-04-S

Kit, Piston w/ Ring (.50)
(Superseded to KH-25-874-17-S)

$261.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-14-S

Ring Set, Piston (STD)

$

$

Not available

7

Cub Cadet KH-24-108-15-S

Ring Set, Piston (.08)

$103.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-108-16-S

Ring Set, Piston (.25)

$103.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-108-17-S

Ring Set, Piston (.50)

$

$

Not available

8

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-24-012-16-S

Kit, Camshaft
(Superseded to KH-24-012-25-S)

$165.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5x0.8x10

$

$

Not available

12

Cub Cadet KH-24-018-04-S

Retainer, Breather Reed

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-24-402-05-S

Reed, Breather
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-12-153-01-S

O-Ring, Lower Oil Fill Tube

$4.99

$

In Stock, Qty 16

0

15

Cub Cadet KH-24-126-19

Bracket, Oil Fill Tube
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-32-755-04-S

Tube, Oil Fill Assembly

$

$

Not available

17

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-12-153-02-S

O-Ring, Upper Oil Fill Tube

$2.49

$

In Stock, Qty 8

0

19

Cub Cadet KH-24-038-04-S

Dipstick, Assy (Includes 20, 21)

$19.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-25-153-02-S

O-Ring, Dipstick

$2.49

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-755-46

Kit, Oil Fill Cap (Yellow)

$

$

Not available

22

Cub Cadet KH-24-018-09-S

Retainer, Ring

$2.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-M-931010-S

Washer, Flat 9MM

$2.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

25

Cub Cadet KH-24-468-15-S

Washer, Flat 1/4" (Bottom)

$2.49

$

In Stock, Qty 5

0

26

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-12-422-07-S

Camshaft Shim (White .028")

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: (not shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-24-522-329

Short Block

Note: (not shown)

$

$

Not available
