Z-Force S60 (17AI5GHD210) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kawasaki (2010) Electrical Parts Diagram

60" Z-Force S Zero-Turn Mower, Kawasaki

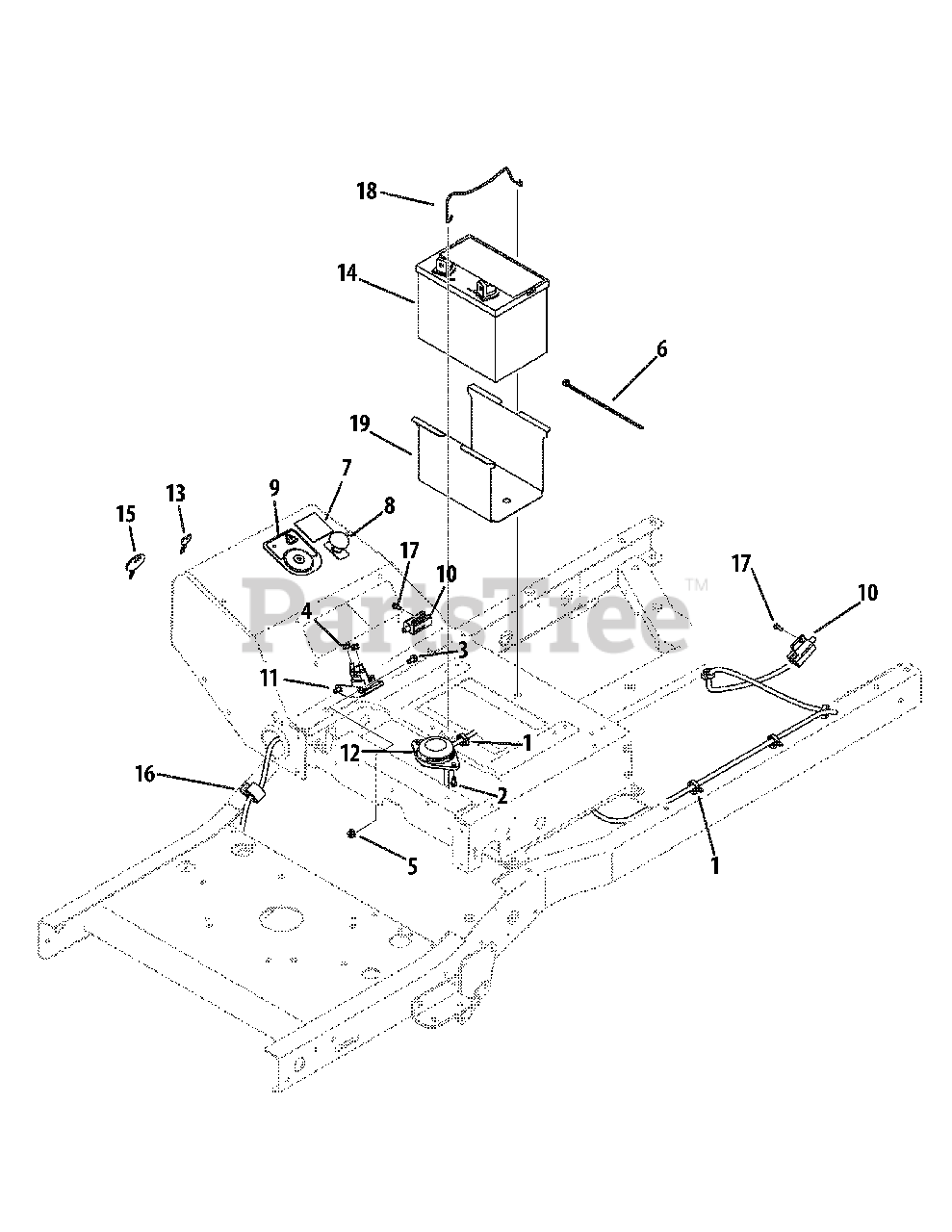

Electrical Parts Diagram

  • Title

1

Cub Cadet 02003037

Electrical Conduit Clip, 1/2

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04261

Hex Washer Screw, #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

3

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 925-04022B

Hour Meter/Service Minder

$146.99

$

In Stock, Qty 5

0

8

Cub Cadet 925-04175

Electric PTO Switch
(Superseded to 925-04175A)

$46.99

$

In Stock, only 4 left!

0

9

Cub Cadet 925-04227B

Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 13

0

11

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-05058

Seat Switch
(Superseded to 725P05058)

$48.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 925-1745A

Universal Key

$17.99

$

In Stock, Qty 20+

0

14

Cub Cadet 925-1707D

Battery

$

$

Not available

15

Cub Cadet 925-2054A

Key, Yellow
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

16

Cub Cadet 726-0475

Clamp, 1.0

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

18

Cub Cadet 747-04121A

Battery Rod

$6.49

$

In Stock, Qty 20+

0

19

Cub Cadet 783-0349-0637

Battery Tray

$

$

Not available

Cub Cadet 925-04106

Harnesss Assembly

Note: Not Shown

$230.99

$

Usually ships in 3-6 days

0
