Z-Force S54 (17AI5GHC010) - Cub Cadet 54" Z-Force S Zero-Turn Mower, Kawasaki (2013) Mower Deck Parts Diagram

54" Z-Force S Zero-Turn Mower, Kawasaki

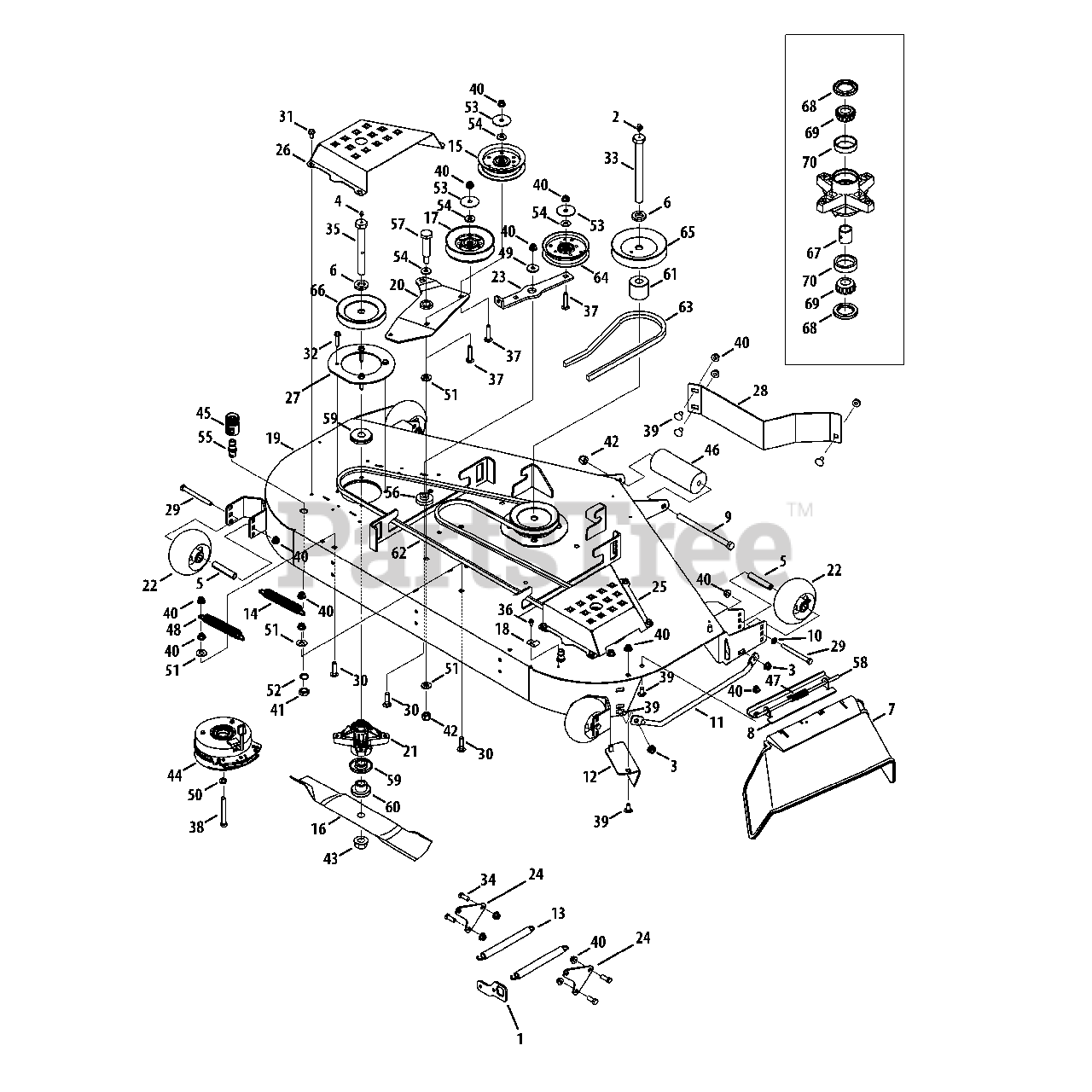

Mower Deck Parts Diagram

  • Title

1

Cub Cadet 703-07632A-0637

Spring Mount Bracket

$14.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 737-04022

Grease Fitting, 1/4-28 x .788

$6.49

$

In Stock, Qty 5

0

3

Cub Cadet 712-05007

Counterlock Flange Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 737-04345

Straight Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 750-3193

Spacer, .390 x .620 x 3.04

$18.99

$

In Stock, Qty 20+

0

6

Cub Cadet 750-05553

Spacer, .812 x 1.47 x .218

$9.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01006693P

Fab Deck Deflector Chute

$68.99

$

In Stock, Qty 8

0

8

Cub Cadet 01006748-0637

Deflector Chute Bracket

$35.99

$

In Stock, Qty 10

0

9

Cub Cadet 710-05385

Hex Screw, 1/2-20 x 7.50

$11.99

$

In Stock, Qty 10

0

10

Cub Cadet 936-0314

Thrust Washer .382 ID x .684 OD
(Superseded to 736-0314)

$

$

Not available

11

Cub Cadet 01008644

Fab Deck Chute Finger Guard

$36.99

$

In Stock, only 1 left!

0

12

Cub Cadet 02001235-0637

Deck Chute Baffle

$31.99

$

In Stock, only 3 left!

0

13

Cub Cadet 02002629

Hook Ext. Spring, .75 x 7.89 x .14

$18.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 732-04960

Hook Ext. Spring, .94 x 7.57 x .14

$14.99

$

In Stock, only 3 left!

0

15

Cub Cadet 02004447

Idler Pulley, 4.88

$57.99

$

In Stock, Qty 20+

0

16

Cub Cadet 942-04416

Hi-Lift Blade, 19.0

$28.99

$

In Stock, Qty 20+

0

17

Cub Cadet 756-04522

Idler Pulley

$39.99

$

In Stock, only 4 left!

0

18

Cub Cadet 96606

Retainer Hook

$7.49

$

In Stock, Qty 7

0

19

Cub Cadet 903-04791-4021

54" Deck

$1728.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 603-04839

54" Idler Assembly

Variations

Cub Cadet 603-04839-4021

Idler Pulley Arm - CUB YELLOW 2 (4021)

$78.99

$

In Stock, only 1 left!

0

$78.99

$

In Stock, only 1 left!

0

21

Cub Cadet 918-3129C

Deck Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

22

Cub Cadet 634-3159

Deck Wheel

$34.99

$

In Stock, Qty 20+

0

23

Cub Cadet 703-07010

Deck Idler Arm

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 703-07641-0637

Spring Mount Plate

$

$

Not available

25

Cub Cadet 703-07687A-4021

54" RH Belt Cover

$101.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 703-07688A-4021

54" LH Belt Cover

$101.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 703-07787-4021

Spindle Reinforcement Plate
(Superseded to 703-07787-0637)

$33.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 703-07845A-4021

Standard Baffle
(Superseded to 703-07845A-0637)

$60.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-0411

Hex Screw, 3/8-16 x 4.00

$8.49

$

In Stock, Qty 17

0

30

Cub Cadet 710-0431

Carriage Bolt, 3/8-16 x 1.50

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-04605

Flange Hex TT Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-05110A

Hex Screw, 3/4-16 x 8.0

$56.99

$

In Stock, only 3 left!

0

34

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-05173A

Hex Screw, 3/4-16 x 6.0

$28.99

$

In Stock, only 4 left!

0

36

Cub Cadet 710-0599

Hex Washer TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0560

Screw, Carriage: 3/8-16 x 1.75"

$6.99

$

In Stock, Qty 11

0

38

Cub Cadet 710-3157A

Hex Screw, 7/16-20 x 3.50

$10.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

42

Cub Cadet 912-3058

Nut, Hexlk, 1/2-20, Gr2, Nylon

$5.99

$

In Stock, Qty 16

0

43

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

44

Cub Cadet 917-04754A

Electric PTO Clutch

$583.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

46

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

47

Cub Cadet 732-04797

Torsion Spring

$11.99

$

In Stock, only 4 left!

0

48

Cub Cadet 932-0594A

Extension Spring, .91 x 7.33

$14.99

$

In Stock, Qty 20+

0

49

Cub Cadet 936-0133

Washer, .411 x 1.25 x 1.00
(Superseded to 736-0133)

$

$

Not available

50

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

51

Cub Cadet 936-0326

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

53

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

54

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 737-04003D

Water Deck Nozzle

$23.99

$

In Stock, Qty 6

0

56

Cub Cadet 738-04376

Shoulder Spacer, .854 x .280

$9.99

$

In Stock, only 3 left!

0

57

Cub Cadet 738-04462

Shoulder Bolt, 3/8-16 x .74 x 2.47

$18.99

$

In Stock, only 3 left!

0

58

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

59

Cub Cadet 748-3065A

Deck Spindle Spacer

$13.99

$

In Stock, Qty 14

0

60

Cub Cadet 750-05420

Spindle Spacer, .76 x 2.0 x 1.1

$13.99

$

In Stock, only 1 left!

0

61

Cub Cadet 750-05496

Spacer, .760 x 2.00 x 1.69

$

$

Not available

62

Cub Cadet 954-04137A

V-Belt
(Superseded to 954-04137B)

$44.99

$

In Stock, only 3 left!

0

63

Cub Cadet 954-04262

Belt

$79.99

$

In Stock, Qty 6

0

64

Cub Cadet 756-04129B

Idler Pulley, 4.25
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

65

Cub Cadet 756-04459A

V-Type Pulley

$33.99

$

In Stock, only 1 left!

0

66

Cub Cadet 956-1209

V-Type Pulley

$60.99

$

In Stock, only 3 left!

0

67

Cub Cadet 750-04409

Bearing Spacer

$20.99

$

In Stock, only 1 left!

0

68

Cub Cadet 921-3018A

Oil Seal

$8.49

$

In Stock, Qty 20+

0

69

Cub Cadet 941-04089

Cone Bearing, .750"
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

70

Cub Cadet 941-04091

Bearing Cup, .750"
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0
