Z-Force S54 (17AI5GHC010) - Cub Cadet 54" Z-Force S Zero-Turn Mower, Kawasaki (2012) Wheels Parts Diagram

54" Z-Force S Zero-Turn Mower, Kawasaki

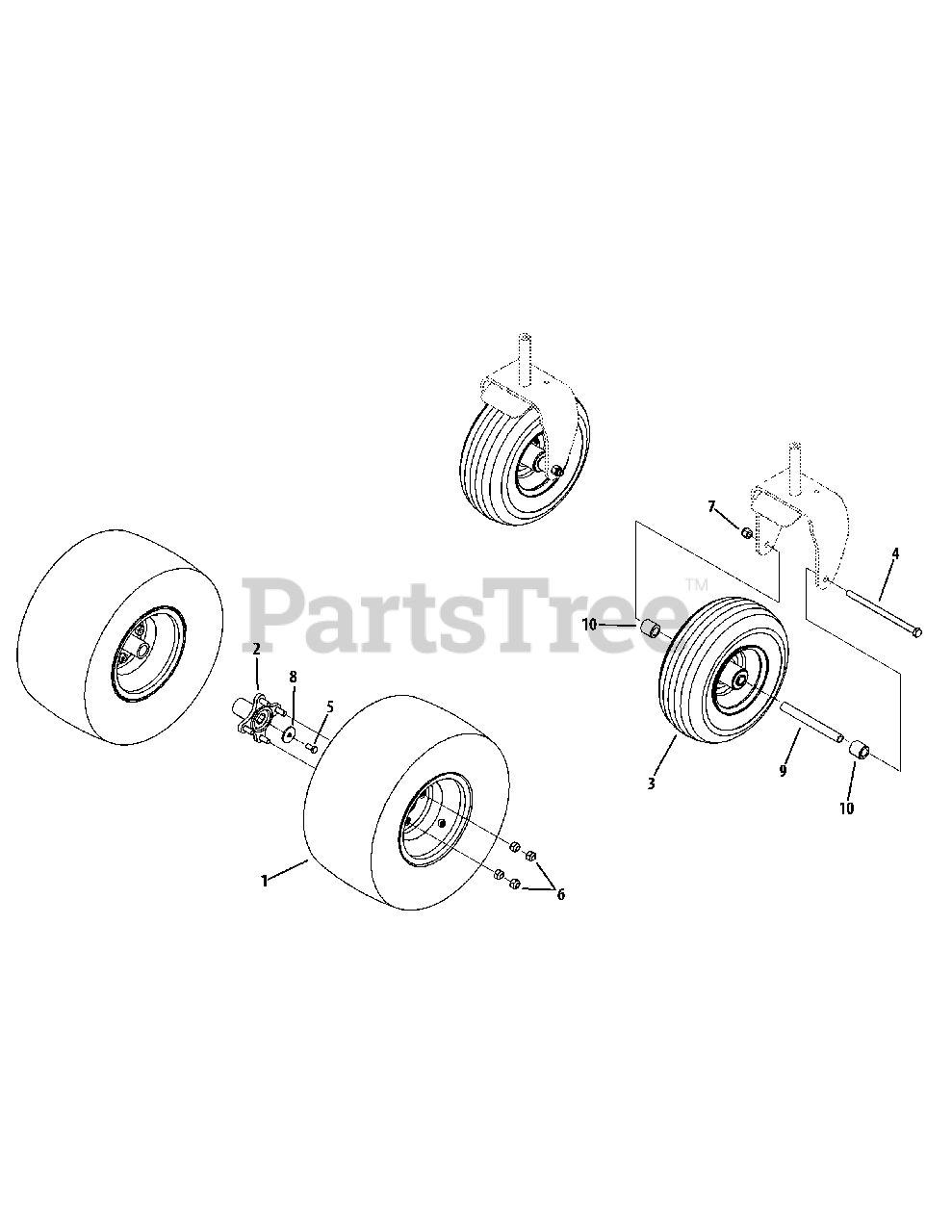

Wheels Parts Diagram

  • Title

1

Cub Cadet 634-04128-0931

Wheel Assy., 18 x 9.5-8 (48" Decks)
(Superseded to 634-04128-0936)

$

$

Not available

1

Cub Cadet 603-04175-0499

Rim Only 18 x 9.5-8

Note: (Not shown)

$88.99

$

In Stock, only 2 left!

0

1

Cub Cadet 734-1729

Tire Only 18 x 9.5-8 TURF SAVER

Note: (Not shown)

Variations

Cub Cadet 734-1729-0901

Turf Saver Tire, 18 X 9.5 X 8 - Carlisle (0901)

$

$

Not available

Cub Cadet 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 934-0255

Valve, Tubeless

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet n/a

Wheel Assy., 20 x 10.00 x 8 (54" & 60" Decks)

Note: (furnish component parts)

$

$

Currently unavailable

1

Cub Cadet 934-0246A-0499

Rim Only 20 x 10 x 8

Note: (Not shown)

$134.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 734-1873-0901

Tire Only 20 x 10 x 8

Note: (Not shown)

$106.99

$

In Stock, only 1 left!

0

1

Cub Cadet 934-0255

Valve, Tubeless

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 918-04317

Wheel Hub Assembly

Note: (48" only)

$116.99

$

In Stock, only 1 left!

0

3

Cub Cadet 634-04629

Complete Wheel Assy., 13 x 5.0-6

Variations

Cub Cadet 634-04629-0499

Caster Wheel Assembly - CUB BEIGE (0499)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-0637

WHEEL ASM-CASTER - POWDER BLACK (0637)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-0662

WHEEL ASM-CASTER - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04629-4028

Caster Wheel Assembly - SEARS YELLOW (4028)

$177.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 734-04520

Tire, 13 x 5.0-6 Grooved 4-ply

Note: (Not shown)

$93.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 941-04137

Bearing, Ball .750 ID x 1.750 OD
(Superseded to 941-04137A)

Note: (Not shown)

$30.99

$

In Stock, Qty 6

0

3

Cub Cadet 937-0280

Grease Fitting, 1/4-28
(Superseded to 737-0280)

Note: (Not shown)

$7.99

$

In Stock, Qty 8

0

4

Cub Cadet 710-04652

Hex Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .750 (48" Only)

$6.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 2 left!

0

7

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

8

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134 (48" Only)
(Superseded to 736-0227)

$

$

Not available

9

Cub Cadet 750-05351

Spacer, .51 x .75 x 1.25
(Superseded to 750-05351A)

$20.99

$

In Stock, only 2 left!

0

10

Cub Cadet 750-05572

Spacer, .76 x 1.23 x 1.57

$6.99

$

In Stock, only 3 left!

0
