Z-Force S54 (17AF5GHC010) - Cub Cadet 54" Z-Force S Zero-Turn Mower, Kohler (2011) Mower Deck 54-Inch Parts Diagram

54" Z-Force S Zero-Turn Mower, Kohler

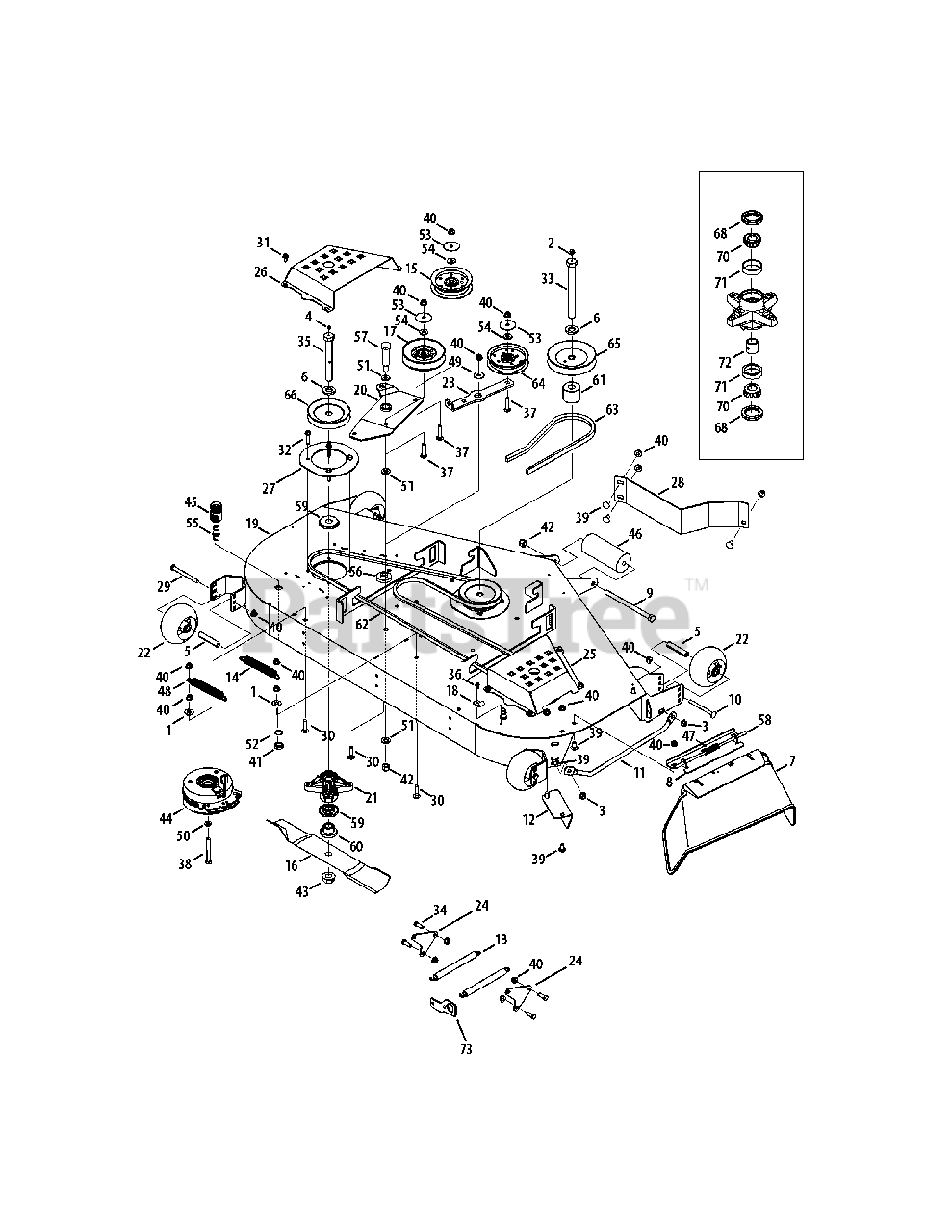

Mower Deck 54-Inch Parts Diagram

  • Title

1

Cub Cadet 00010958

Washer, .532x1.06x.094, Sae, Z

$

$

Not available

2

Cub Cadet 737-3004

Fitting, St, Gres, 90, 1/4-28x.788

$11.99

$

In Stock, Qty 6

0

3

Cub Cadet 00022560

Nut, Flg, Ctrlck, 3/8-16, Gr-5, Yz
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00060078

Fitting, Gres, Strgt, 1/4-28
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 750-3193

Spacer, St, .390x.620x3.04, Yz

$18.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01003123

Spacer, .812x1.47x.218, Gr8, Yz
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01006693

Chute, Dfl, Deck, Fab
(Superseded to 01006693P)

$68.99

$

In Stock, Qty 8

0

8

Cub Cadet 01006748-0637

Bracket, Chute, Dfl

$35.99

$

In Stock, Qty 10

0

9

Cub Cadet 01006961

Screw, 1/2-20, 7.50 Gr5, Pl
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

10

Cub Cadet 01008049

Bolt, Crg, 3/8-16x4.00, Gr5, Yz
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

11

Cub Cadet 01008644

Guard, Finger, Chute, Deck, Fab

$36.99

$

In Stock, only 1 left!

0

12

Cub Cadet 02001235-0637

Baffle, Chute, Micro

$31.99

$

In Stock, only 3 left!

0

13

Cub Cadet 02002629

Spring, Extn, Hook, .75x7.89x.14, Bz

$18.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02003712

Spring, Extn, Hook, .94x7.57x.14, Z
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

15

Cub Cadet 02004447

Pulley, Idler, 4.88 Od

$57.99

$

In Stock, Qty 20+

0

16

Cub Cadet 02005018

Blade, 19.0, Hi-Lift, 0.756id
(Superseded to 942-04416)

$28.99

$

In Stock, Qty 20+

0

17

Cub Cadet 02005079

Pulley, Idler, 5.06 Dia, Riveted
(Superseded to 756-04522)

$39.99

$

In Stock, only 4 left!

0

18

Cub Cadet 96606

Bracket, Hook, Retainer

$7.49

$

In Stock, Qty 7

0

19

Cub Cadet 903-04791

Deck Asm, Fab, 54, Weld, Zf-S

Variations

Cub Cadet 903-04791-4021

SHELL-DECK 54 FAB - CUB YELLOW 2 (4021)

$1728.99

$

Usually ships in 3-6 days

0

$1503.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 603-04839

Idler Asm, 60 Zf-S

Variations

Cub Cadet 603-04839-4021

Idler Pulley Arm - CUB YELLOW 2 (4021)

$78.99

$

In Stock, only 1 left!

0

$78.99

$

In Stock, only 1 left!

0

21

Cub Cadet 918-04426

Spindle Asm, Deck

$112.99

$

In Stock, Qty 20+

0

22

Cub Cadet 634-3159

Wheel, Compl, 5.00 Dia

$34.99

$

In Stock, Qty 20+

0

23

Cub Cadet 703-07010

Arm, Idler, Deck

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 703-07641

Plate, Mount, Springing

Variations

Cub Cadet 703-07641-0637

ARM-LIFT SPRING - POWDER BLACK (0637)

$

$

Not available

$16.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 703-07687A

Belt, Cover, Lg, Rz10, Rh, Res

Variations

Cub Cadet 703-07687A-0637

COVER-BELT RH 54/60 - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07687A-4021

COVER-BELT RH 60" - CUB YELLOW 2 (4021)

$101.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 703-07688A

Belt, Cover, Lg, Rz10, Lh, Res

Variations

Cub Cadet 703-07688A-4021

COVER-BELT LH 60" - CUB YELLOW 2 (4021)

$101.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07688A-0637

COVER-BELT LH 54/60 - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 703-07787

Plate, Reinf, Spindle, 60, Rz10

Variations

Cub Cadet 703-07787-0637

Spindle Reinforcement Plate - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07787-4021

PLATE-SPINDLE REINF - CUB YELLOW 2 (4021)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07787-0606

PLT-SPINDLE REINF - MAJESTIC ORANGE (0606)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07787-4028

PLATE-SPINDLE REINF - SEARS YELLOW (4028)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07787-4033

PLT-SPINDLE REINF - FLINT MICA (4033)

$31.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 703-07845A

Baffle, Std, 54, Slp, Zf-S

Variations

Cub Cadet 703-07845A-0637

BFL-DECK 54 FAB - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-07845A-4021

BAFFLE-DECK 54 FAB - CUB YELLOW 2 (4021)

$60.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-0411

Screw, 3/8-16, 4.00, Gr5, Std

$8.49

$

In Stock, Qty 17

0

30

Cub Cadet 710-0431

Carriage Bolt - 3/8x16x1.50lg

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-04484

Screw, Tt, 5/16-18, .750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-04605

Screw, Tt, 5/16-18, 1.50, Hxindwsh
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-05110A

Screw, 3/4-16 X 7.7, Gr5, Spec

$56.99

$

In Stock, only 3 left!

0

34

Cub Cadet 710-0514

Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-05173A

Screw, 3/4-16, 6.00, Gr5, Spec

$28.99

$

In Stock, only 4 left!

0

36

Cub Cadet 710-0599

Screw, Tt, 1/4-20, 0.500, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0560

Screw, Crg, 3/8-16, 1.75, Gr5

$6.99

$

In Stock, Qty 11

0

38

Cub Cadet 710-3157A

Screw, 7/16-20, 3.25, Gr5, Lock

$10.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3178

Bolt, Crg, 3/8-16, 0.75, Shrt Nk

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-04065

Nut, Flglk, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 912-0641

Nut, Hex, M16-1.5 Din 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

42

Cub Cadet 912-3058

Nut, Hexlk, 1/2-20, Gr2, Nylon

$5.99

$

In Stock, Qty 16

0

43

Cub Cadet 712-3078

Nut, Flglk, 3/4-16, Gr8

$9.99

$

In Stock, Qty 20+

0

44

Cub Cadet 917-04754

Clutch, Elec, Brake 125 Ft-Lbs
(Superseded to 917-04754A)

$583.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 921-04041

Adap, Water Nozzle

$23.99

$

In Stock, Qty 20+

0

46

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

47

Cub Cadet 732-04797

Spring, Torsn, 180, .639x2.16x.12, Yz

$11.99

$

In Stock, only 4 left!

0

48

Cub Cadet 932-0594A

Spring, Extn, .91 Dia X 7.33

$14.99

$

In Stock, Qty 20+

0

49

Cub Cadet 936-0133

Washer, Flat, .411 X 1.25 X .100
(Superseded to 736-0133)

$

$

Not available

50

Cub Cadet 936-0171

Washer, Lock, 7/16, SPlate, Reg
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

51

Cub Cadet 936-0326

Washer, Flat, .510 X 1.000 X .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 936-0760

Washer, Lock, Schnorr 17x23.8x1.95

$4.49

$

In Stock, Qty 13

0

53

Cub Cadet 736-3040

Washer, Flat, .406 X 1.92 X .060

$6.49

$

In Stock, Qty 6

0

54

Cub Cadet 736-3052

Washer, Flat, .406x1.000x.105

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 737-04003D

Nozzle, Deck, Water

$23.99

$

In Stock, Qty 6

0

56

Cub Cadet 738-04376

Spacer, Shldr, .854 X .280

$9.99

$

In Stock, only 3 left!

0

57

Cub Cadet 738-04462

Bolt, Shldr .74 Dia X 2.4 Lg

$18.99

$

In Stock, only 3 left!

0

58

Cub Cadet 747-3384

Rod, Dfl, Chute

$27.99

$

In Stock, only 1 left!

0

59

Cub Cadet 748-3065A

Spacer, Spindle, Deck

$13.99

$

In Stock, Qty 14

0

60

Cub Cadet 750-05420

Spacer, Spindle, .76 X 2.0 X 1.1 Lg

$13.99

$

In Stock, only 1 left!

0

61

Cub Cadet 750-05496

Spacer, .760 X 2.000 X 1.69

$

$

Not available

62

Cub Cadet 954-04137A

Belt, Vtype, A Secx114.24aramid
(Superseded to 954-04137B)

$44.99

$

In Stock, only 1 left!

0

63

Cub Cadet 954-04262

Belt, B-Section, 91.04lg, Rzr

$79.99

$

In Stock, Qty 6

0

64

Cub Cadet 756-04129B

Pulley, Idler, 4.25"Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

65

Cub Cadet 756-04459A

Pulley, V Typ, 5.768 Dia Split

$33.99

$

In Stock, only 2 left!

0

66

Cub Cadet 956-1209

Pulley, V Type A Sect X 4.90

$60.99

$

In Stock, only 3 left!

0

68

Cub Cadet 921-3018A

Seal, Oil, Single Lip

$8.49

$

In Stock, Qty 20+

0

70

Cub Cadet 941-04089

Bearing, Cone, .750" Tapered Roller
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

71

Cub Cadet 941-04091

Cup, Bearing, .750" Tapered Roller
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

72

Cub Cadet 750-04409

Bearing Spacer

$20.99

$

In Stock, only 1 left!

0

73

Cub Cadet 703-07632A-0637

Spring Mount Bracket

$14.99

$

Usually ships in 3-6 days

0
