Z-Force S48 (53BH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler (2013) Mower Deck Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

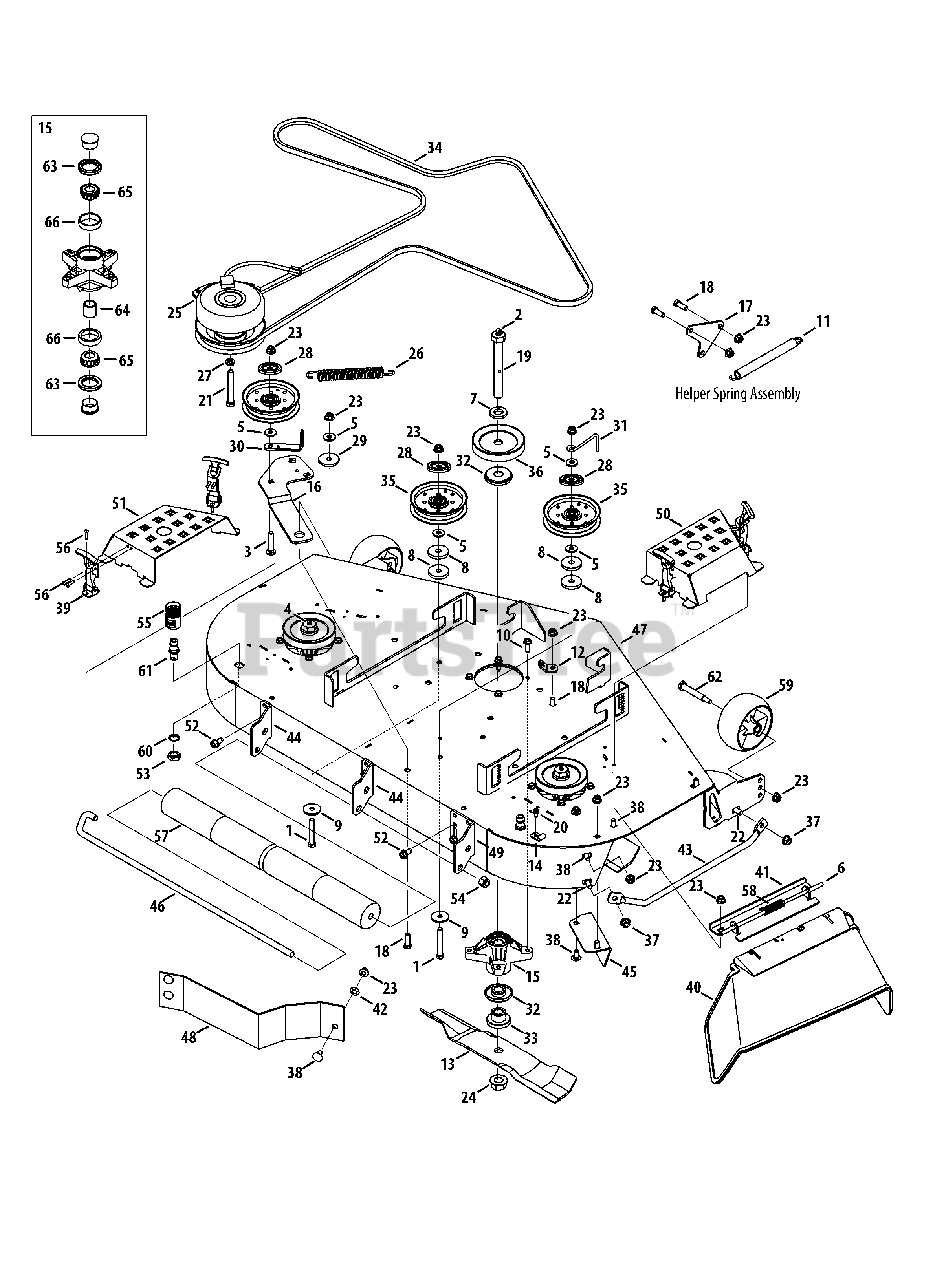

Mower Deck Parts Diagram

  • Title

1

Cub Cadet 710-0859

Hex Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

2

Cub Cadet 737-04022

Grease Fitting, 1/4-28 x .788

$6.49

$

In Stock, Qty 5

0

3

Cub Cadet 710-04157

Carriage Bolt, 3/8-16 x 2.00

$8.99

$

In Stock, only 1 left!

0

4

Cub Cadet 737-04345

Straight Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

7

Cub Cadet 750-05553

Spacer, .812 x 1.47 x .218

$9.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-3017

Washer, .470 x 1.50 x .225

$10.99

$

In Stock, only 4 left!

0

9

Cub Cadet 936-0227

Washer, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

10

Cub Cadet 710-0602

Flange Hex TT Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 02002629

Hook Ext. Spring, .75 x 7.89 x .14

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02004195

45-Degree Spring Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 942-04417

Hi-Lift Blade, 17.0

$28.99

$

In Stock, Qty 20+

0

14

Cub Cadet 96606

Retainer Hook Bracket

$7.49

$

In Stock, Qty 7

0

15

Cub Cadet 918-3129C

Deck Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

16

Cub Cadet 703-07616B-0637

48" Plate Idler

$

$

Not available

17

Cub Cadet 703-07641-0637

Spring Mount Plate

$

$

Not available

18

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-05173A

Hex Screw, 3/4-16 x 6.00

$28.99

$

In Stock, only 4 left!

0

20

Cub Cadet 710-0599

Hex Washer TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3157A

Hex Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

25

Cub Cadet 917-05000

Electric PTO Clutch

$550.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 932-0594A

Extension Spring, .91 x 7.33

$14.99

$

In Stock, Qty 20+

0

27

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

28

Cub Cadet 783-07236

Pulley Cap

$5.49

$

In Stock, only 4 left!

0

29

Cub Cadet 738-04392

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, only 3 left!

0

30

Cub Cadet 783-06368A-0637

Belt Guard Bracket

$21.99

$

In Stock, Qty 20+

0

31

Cub Cadet 747-04938

Belt Keeper Rod

$7.99

$

In Stock, only 1 left!

0

32

Cub Cadet 748-3065A

Deck Spindle Spacer

$13.99

$

In Stock, Qty 14

0

33

Cub Cadet 750-05282

Spindle Spacer, .76 x 2.0 x 1.1
(Superseded to 750-05420)

$13.99

$

In Stock, only 1 left!

0

34

Cub Cadet 954-04044A

Hi-Performance Belt

$63.99

$

In Stock, Qty 20+

0

35

Cub Cadet 756-04129B

Idler Pulley
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

36

Cub Cadet 756-3089

V-Type Pulley

$36.99

$

In Stock, only 3 left!

0

37

Cub Cadet 712-05007

Counterlock Flange Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 935-04038

T-Handle Latch Draw

$15.99

$

In Stock, Qty 14

0

40

Cub Cadet 01006693P

Fab Deck Deflector Chute

$68.99

$

In Stock, Qty 8

0

41

Cub Cadet 01006748-0637

Deflector Chute Bracket

$35.99

$

In Stock, Qty 10

0

42

Cub Cadet 712-0229

Push Retainer Nut

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 01008644

Fab Deck Chute Finger Guard

$36.99

$

In Stock, only 1 left!

0

44

Cub Cadet 01008790

Deck Roller Mount Bracket, Right

Variations

Cub Cadet 01008790-0637

Roller Mounting Bracket, Black - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 01008790-4021

Roller Mounting Bracket - CUB YELLOW 2 (4021)

$37.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 02001235-0637

Micro Chute Baffle

$31.99

$

In Stock, only 3 left!

0

46

Cub Cadet 02002799

J-Hook w/ Threaded Roller
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

47

Cub Cadet 603-04884-4021

48" Deck, Yellow

$1508.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 703-07346A-0637

48" Standard Baffle

$60.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 703-08076-0637

Deck Roller Mount Bracket

$41.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 703-08263-4021

48" RH Belt Cover

$

$

Not available

51

Cub Cadet 703-08267-4021

48" LH Belt Cover

$

$

Not available

52

Cub Cadet 710-0623

Screw TT, 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

53

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

54

Cub Cadet 712-3083

Lock Nut, Nylon Insert, 1/2-13

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

56

Cub Cadet 928-0173

Pop Rivet, .187 Dia.

$4.49

$

In Stock, only 4 left!

0

57

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

58

Cub Cadet 732-04797

Spring Torsion, 0.639 ID x 2.16 LG

$11.99

$

In Stock, only 4 left!

0

59

Cub Cadet 734-04155

Deck Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

60

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

61

Cub Cadet 737-04003D

Water Deck Nozzle

$23.99

$

In Stock, Qty 6

0

62

Cub Cadet 938-3056

Shoulder Bolt, 3/8-16 x .496 x 2.50

$9.49

$

In Stock, Qty 20+

0

63

Cub Cadet 921-3018A

Oil Seal

$8.49

$

In Stock, Qty 20+

0

64

Cub Cadet 750-04409

Spacer, .78 x 1.0

$20.99

$

In Stock, only 1 left!

0

65

Cub Cadet 941-04089

Cone Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

66

Cub Cadet 941-04091

Cup Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+
