Z-Force S48 (53BH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler (2012) Kohler CV680-3044 Head, Valve & Breather Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

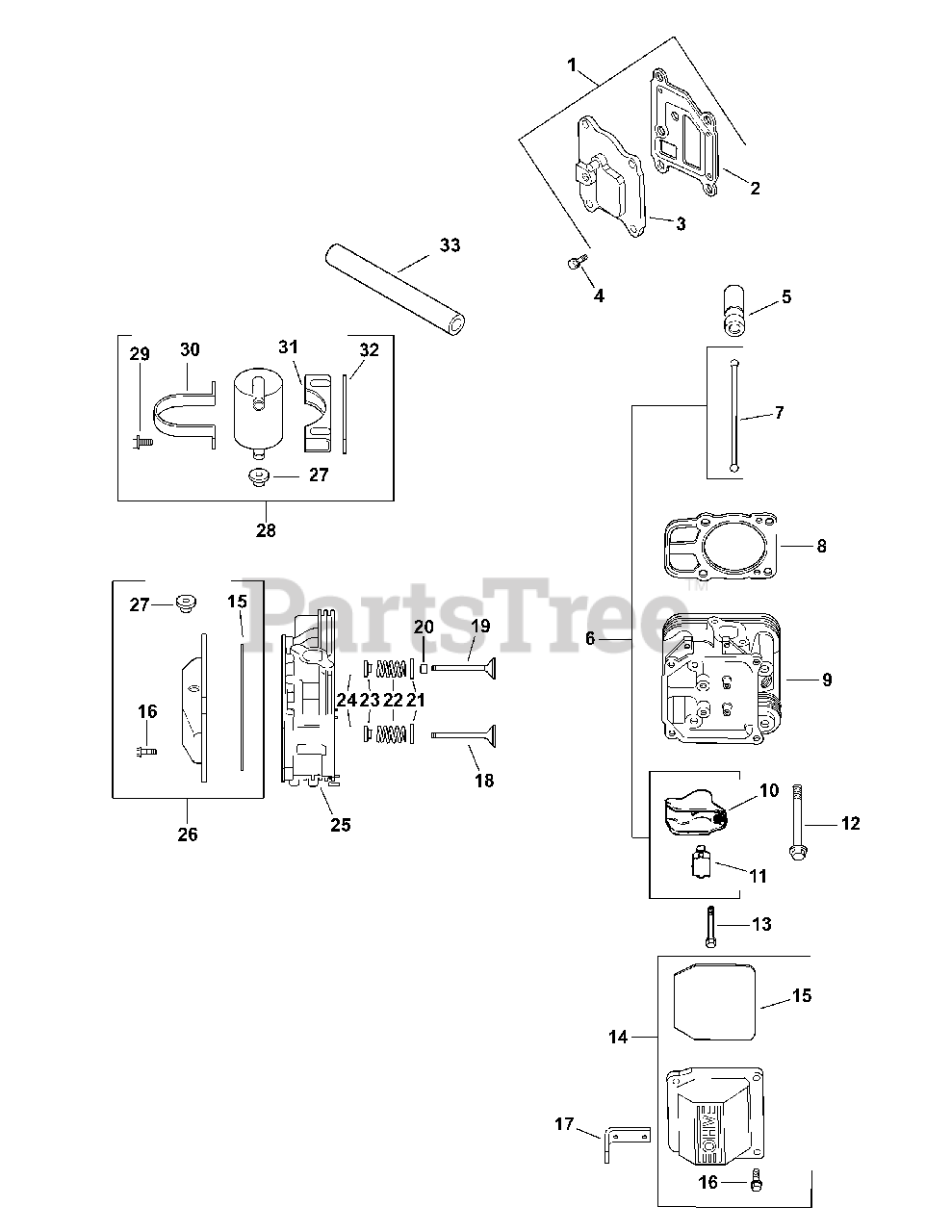

Kohler CV680-3044 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Kit, Breather Cover W/Gasket (Includes 2-3)

$

$

Not available

2

Cub Cadet KH-24-041-67-S

Gasket, Breather

$13.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-096-87-S

Cover, Breather
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

Screw, Flg Thd Frm M6x1.0x20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-10-S

Kit, Hydraulic Valve Lifter
(Superseded to KH-25-351-11-S)

Note: (Includes Lubricant)

$23.99

$

In Stock, Qty 9

0

6

Cub Cadet KH-24-755-66

Kit, Valve Train (Includes 7, 10, 11)

$

$

Not available

7

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

8

Cub Cadet KH-24-841-02-S

Kit, Gasket Cylinder Head (Inc. 13 qty. 4)

$45.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-318-119-S

Kit, Head #2 (Includes KH-25-072-04)

$

$

Not available

10

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

11

Cub Cadet KH-24-599-02-S

Pivot, Rocker Arm

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-62-086-08-S

Screw, Flg M10x1.5x90

$5.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-M-640034-S

Screw, Flg M6x1.0x34

$2.49

$

In Stock, Qty 18

0

14

Cub Cadet KH-24-755-141-S

Kit, Valve Cover-Plain (Includes 15,16)

$35.99

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-153-30-S

O-Ring, Valve Cover

$11.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-M-651030-S

Screw, Flg M6x1.0x30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-25-445-01-S

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

18

Cub Cadet KH-24-016-01

Valve, Exhaust (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 14

0

18

Cub Cadet KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

19

Cub Cadet KH-24-017-01

Valve, Intake (Std)

$

$

Not available

19

Cub Cadet KH-24-017-02

Valve, Intake (.25)

$

$

Not available

20

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 1 left!

0

22

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

23

Cub Cadet KH-25-173-28-S

Cap, Valve Spring

$8.49

$

In Stock, only 3 left!

0

24

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 8

0

25

Cub Cadet KH-24-318-105-S

Kit, Head #1 (Includes KH-25-072-04)
(Superseded to KH-24-318-194-S)

$246.99

$

Usually ships in 3-6 days

0

26

Cub Cadet KH-24-755-142-S

Kit, Valve Cover Breather (Includes 15, 16, 27)

$38.99

$

In Stock, only 1 left!

0

27

Cub Cadet KH-25-313-03-S

Grommet, Rubber

$11.99

$

In Stock, only 3 left!

0

28

Cub Cadet KH-24-755-57-S

Kit, Breather Seperator (Includes 27)
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

29

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-24-445-02

Breather Strap
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

31

Cub Cadet KH-24-126-44

Breather Bracket

$

$

Not available

32

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

33

Cub Cadet KH-24-326-63-S

Hose, Breather

$6.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-755-147-S

Kit, Cylinder Head Hardware

Note: (Not Shown) (Services 1 Head. Quantities Listed Are For Both Heads) (Includes 8, 11, 12, 14, 19-25)

$96.99

$

In Stock, only 3 left!

0

Cub Cadet KH-25-072-04

Stud, M8x1.25x33
(Superseded to KH-25-072-24-S)

Note: (Not Shown)

$3.99

$

In Stock, Qty 14

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: (Not Shown)

$2.49

$

In Stock, only 3 left!

0
