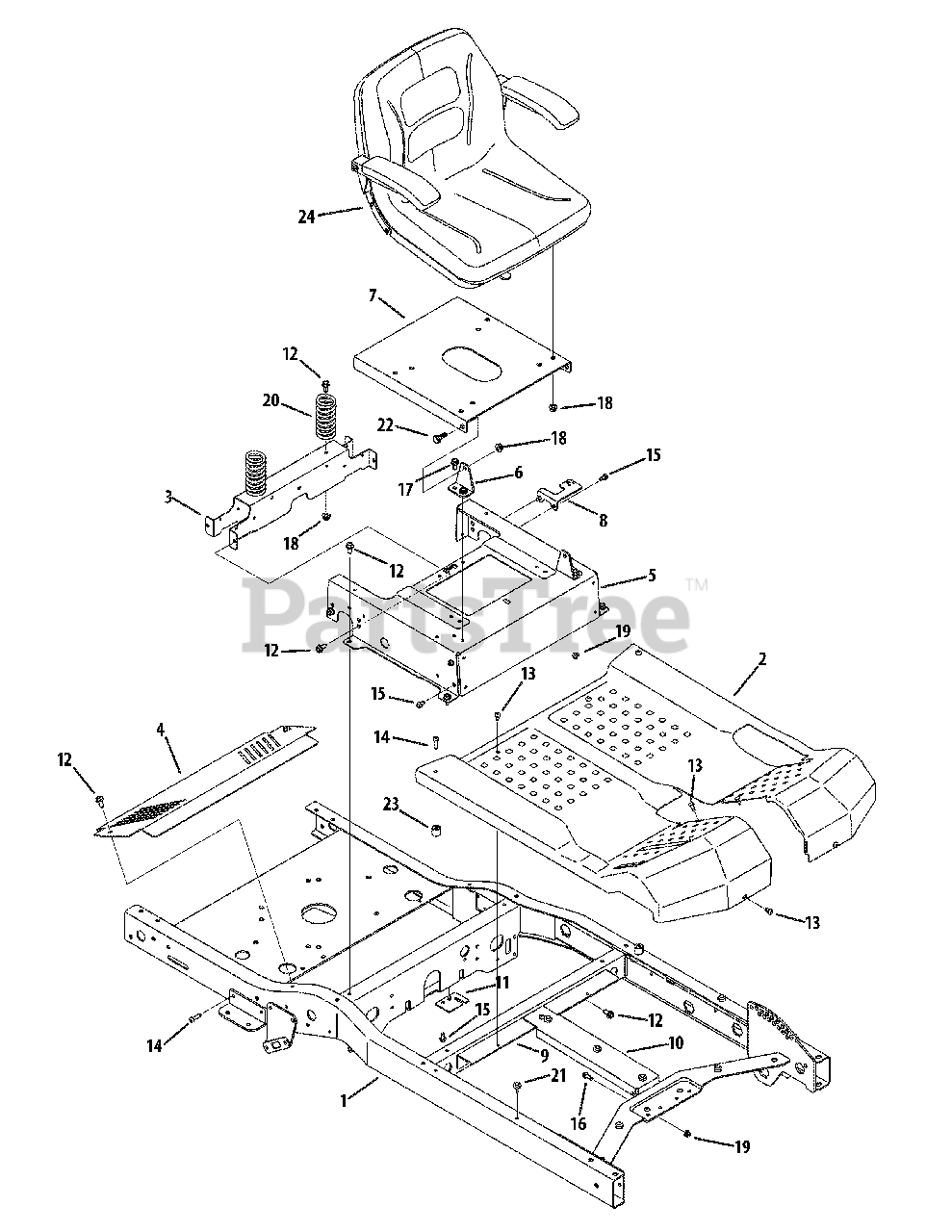

Z-Force S48 (17AI5BHB056) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2010) Seat & Frame Parts Diagram

48" Z-Force S Zero-Turn Mower

Seat & Frame Parts Diagram

  • Title
1

Cub Cadet 603-04717A-0637

Frame Assembly
(Superseded to 603-04717D-0637)

$

$

Not available

2

$

$

Not available

3

$

$

Not available

4

Cub Cadet 703-07473-0637

Transmission Cover
(Superseded to 703-07473A-0637)

$74.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07483-4021

Seat Mount Frame

$

$

Not available

6

Cub Cadet 703-07626A-0637

Pivot Seat Bracket

$

$

Not available

7

Cub Cadet 703-07668-0637

Seat Base
(Superseded to 703-07668E-0637)

$

$

Not available

8

Cub Cadet 703-07696-0637

Brake Switch Mount Bracket

$

$

Not available

9

Cub Cadet 703-07729-0637

Running Board Mount Bracket

$

$

Not available

10

Cub Cadet 703-07730-0637

Floor Pan Frame Support

$

$

Not available

11

$

$

Not available

12

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-05070

Screw, 1.4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-05074

Screw, 1.4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0599

Screw, 1.4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0642

Screw, 1.4-20 x .750

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3015

Hex Screw, 1.4-20 x .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04064

Flange Lock Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 732-04561

Comp. Spring, 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 735-0271A

Bumper, .62 x .3

$8.99

$

In Stock, only 2 left!

0

22

Cub Cadet 938-0296

Shoulder Screw, 5.16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 750-05373

Spacer, .281 x .750 x .680

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 757-04070

Front Cut Seat w/ Arms
(Superseded to 757-04115)

$

$

Not available

24

Cub Cadet 02002255

Armrest Kit

Note: not shown

$281.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-3256

Screw, Button Head 1/4-20 x .50

Note: not shown

$10.99

$

Usually ships in 3-6 days

0
