48" Z-Force S Zero-Turn Mower

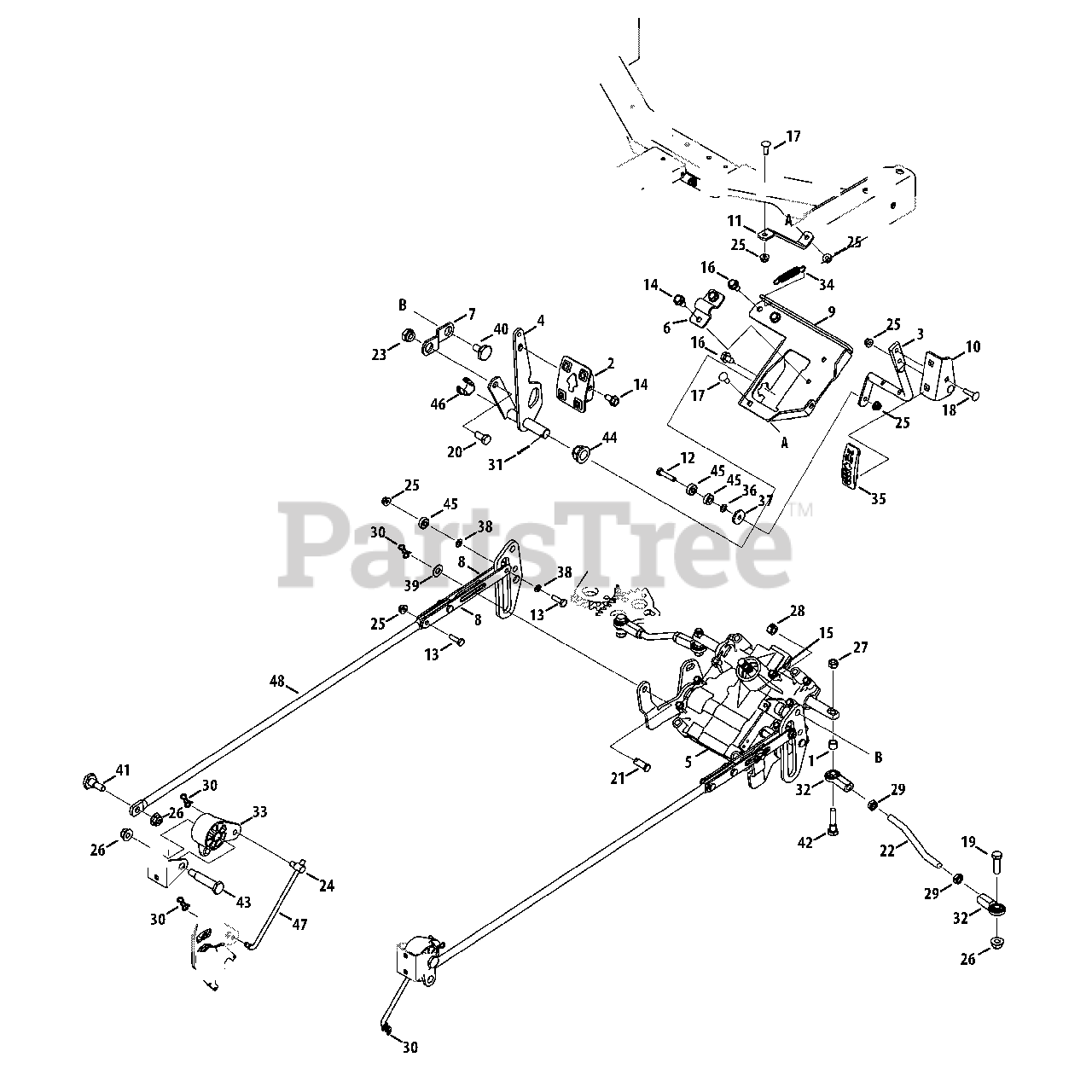

Steering Linkage & Pedal Controls Parts Diagram

  • Title

1

Cub Cadet 02003170

Spacer, 344 x .500 x .375

$9.49

$

In Stock, only 1 left!

0

2

Cub Cadet 603-04752-0637

Forward Pedal Assembly

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04849

Reverse Pedal Rod

$

$

Not available

4

Cub Cadet 603-04850

Forward Bracket Assembly

$75.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 918-04846B

Steering Assembly

$

$

Not available

6

Cub Cadet 703-07465

Reverse Bearing Bracket

$22.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-07466B

Control Bracket

$

$

Not available

8

Cub Cadet 703-07567

Steering Link Plate

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-07642D-0637

Pedal Mount Bracket

$71.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-07675A-0637

Reverse Pedal Bracket

$13.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-07786A-0637

Pedal Mount Plate Support Bracket

$

$

Not available

12

Cub Cadet 710-0106

Hex Head Screw, 1/4-20 x 1.25

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-0206

Hex Screw, 1/4-20 x .875

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

18

Cub Cadet 710-0932A

Carriage Screw, 1/4-20 x 1.00

$3.99

$

In Stock, only 4 left!

0

19

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

20

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 711-0173

Clevis Pin, .375 x .969
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

22

Cub Cadet 711-05270

Rod, 3/8 x 5.0

$64.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-05274

Neutral Adjustment Hub

$

$

Not available

24

Cub Cadet 711-05364

Adjustment Ferrule, 1/4-28 x 1.000

$5.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 15

0

27

Cub Cadet 912-0411

Hex Lock Nut, 5/16-24
(Superseded to 712-0411)

$

$

Not available

28

Cub Cadet 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

29

Cub Cadet 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

31

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750

$4.49

$

In Stock, Qty 17

0

32

Cub Cadet 723-04080

Femaile Ball-Joint

$41.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-07616

Pivot Arm, LH

$11.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-07615

Pivot Arm, RH

$11.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 932-04262

Extension Spring, .429 x 2.515

$9.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 735-04113

Reverse Foot Pad

$8.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-0142

Flat Washer, .281 x .500 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

38

Cub Cadet 736-04299

Flat Washer, .281 x .50 x .04

$4.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 936-0864

Thrust Washer, .375 x .812 x .060

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 738-0322A

Shoulder Screw, .625 x .217

$6.99

$

In Stock, only 2 left!

0

41

Cub Cadet 738-04409

Shoulder Screw, .500 x .434

$3.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-04427

Shoulder Screw, 375 x .48

$8.49

$

In Stock, only 1 left!

0

43

Cub Cadet 738-0509

Shoulder Screw, .500 x 1.825

$

$

Not available

44

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

45

Cub Cadet 741-04280

Ball Bearing, .25 x .6875 x .25

$15.99

$

In Stock, only 1 left!

0

46

Cub Cadet 741-3065B

Hex Flange Bearing, .628

$8.49

$

In Stock, Qty 11

0

47

Cub Cadet 747-05311

Hydro Control Rod

$16.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 747-05397

Hydro Link Rod

$

$

Not available
