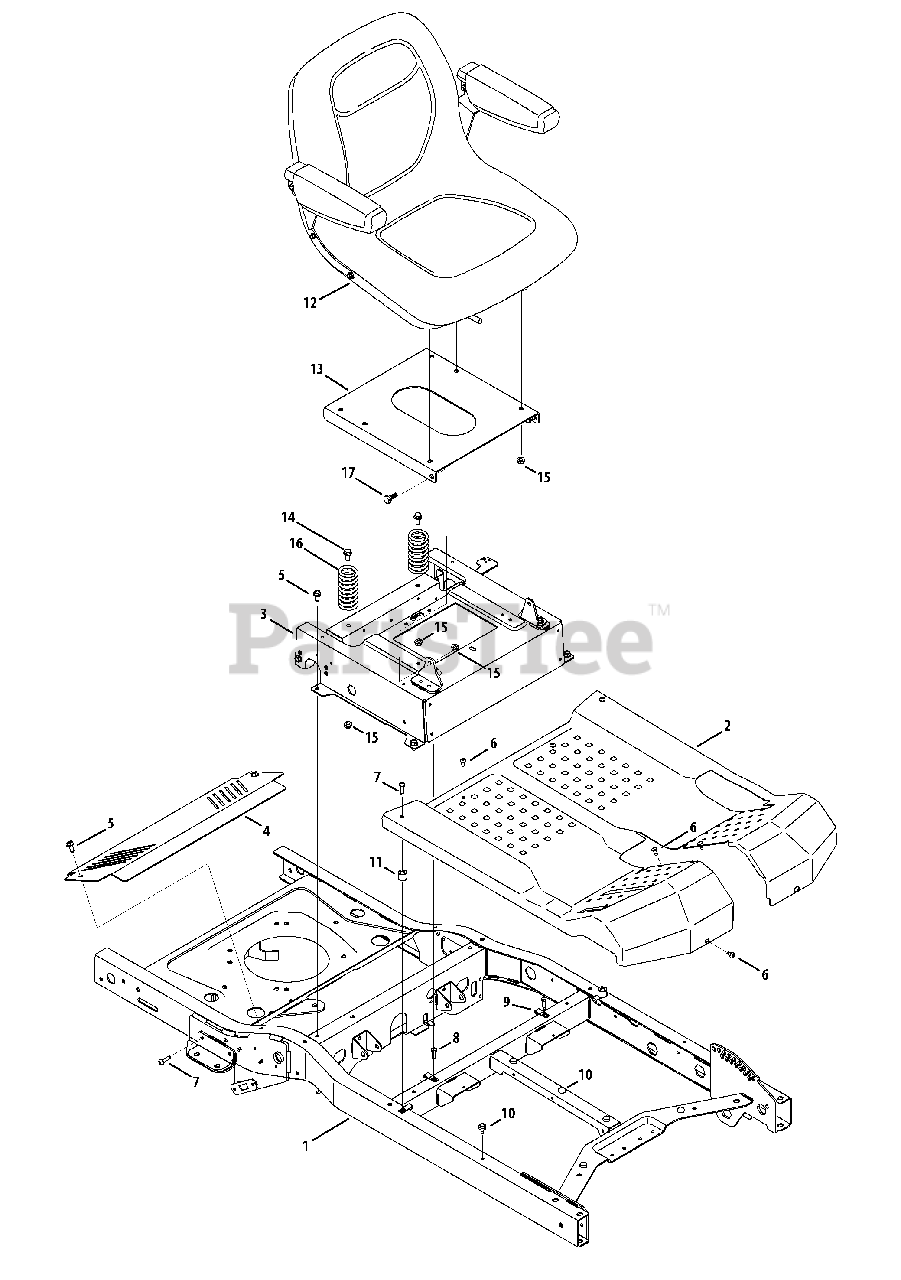

Z-Force S48 (17AI5BHB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2013) Seat & Frame Parts Diagram

48" Z-Force S Zero-Turn Mower

Seat & Frame Parts Diagram

  • Title

1

Cub Cadet 603-04717D-0637

Frame Assembly

$

$

Not available

2

Cub Cadet 703-07315A-4021

Floor Board

$

$

Not available

3

Cub Cadet 603-04805A-4021

Seat Box Assembly

$234.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07473A-0637

Transmission Cover

$74.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

7

Cub Cadet 710-05074

Screw, 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1652

Hex Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04092

Speed Nut, U-Type 1/4-20

$5.99

$

In Stock, only 2 left!

0

10

Cub Cadet 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

11

Cub Cadet 750-05373

Spacer, .281 x .750 x .680

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 757-04136

Seat w/ Armrests

$493.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-07668E-0637

Seat Base

$

$

Not available

14

Cub Cadet 710-04043

Hex Washer Screw, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 732-04561

Comp. Spring, 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+
