Z-Force S48 (17AI5BHB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2013) Drive System Parts Diagram

48" Z-Force S Zero-Turn Mower

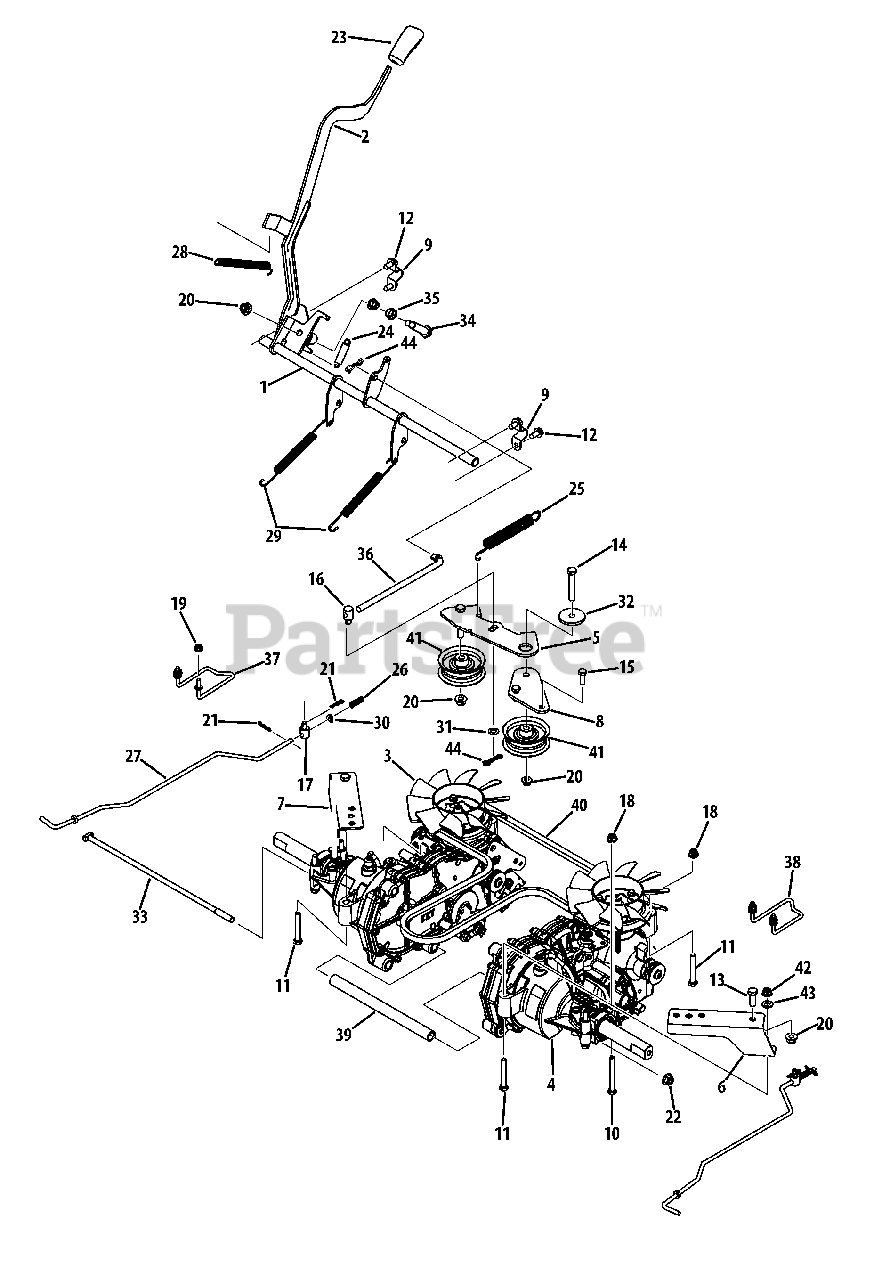

Drive System Parts Diagram

  • Title

1

Cub Cadet 603-04770

Brake Shaft Assembly

$

$

Not available

2

Cub Cadet 603-04773

Brake Handle Assembly

$113.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04868A

LH Transmission Assembly

$1302.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04869A

RH Transmission Assembly

$1400.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07318C

Idler Bracket

$38.99

$

In Stock, Qty 5

0

6

Cub Cadet 703-07367-0637

RH Mount Bracket

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-07368-0637

LH Mount Bracket

$

$

Not available

8

Cub Cadet 703-07484-0637

Idler Mount Plate

$25.99

$

In Stock, only 1 left!

0

9

Cub Cadet 703-07593

Shaft Mount Bracket

$

$

Not available

10

Cub Cadet 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-05278

Hex Screw, 5/16-18 x 2.25

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3038

Hex Screw, 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

16

Cub Cadet 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

17

Cub Cadet 711-1530

Ferrule, .325 x .312

$

$

Not available

18

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 731-04735

Selector Handle

$20.99

$

In Stock, only 1 left!

0

24

Cub Cadet 932-0209

Extension Spring, .48 x 2.03

$7.99

$

In Stock, only 2 left!

0

25

Cub Cadet 732-04229

Extension Spring, .75 x 6.02

$20.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0437

Compression Spring, .34 x 1.0

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet 732-04688A

Transmission Bypass Lever Wire

$20.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0963

Extension Spring, .50 x 6.37

$9.99

$

In Stock, only 4 left!

0

29

Cub Cadet 732-0994

Extension Spring, .500 x 7.0

$10.99

$

In Stock, Qty 9

0

30

Cub Cadet 936-0271

Spring Washer, .317 x .625 x .020

$4.49

$

In Stock, Qty 10

0

31

Cub Cadet 936-0314

Thrust Washer, .375 x .70 x .030
(Superseded to 736-0314)

$

$

Not available

32

Cub Cadet 738-04392

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, only 3 left!

0

33

Cub Cadet 738-04192B

Rod, .405 x 14.00

$21.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-0491

Flange Bearing, .500 x .34

$5.49

$

In Stock, only 3 left!

0

36

Cub Cadet 747-05139A

Disengage Brake Rod

$12.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-05277B

LH Keeper Rod

$15.99

$

In Stock, only 1 left!

0

38

Cub Cadet 747-05278B

RH Keeper Rod

$16.99

$

In Stock, only 1 left!

0

39

Cub Cadet 750-05347

Transmission Spacer, 9.40

$20.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 954-04250

Belt

$43.99

$

In Stock, Qty 6

0

41

Cub Cadet 756-04224

Flat Idler Pulley, 2.75

$26.99

$

In Stock, Qty 20+

0

42

Cub Cadet 912-0411

Hex Lock Nut, 5/16-24
(Superseded to 712-0411)

$

$

Not available

43

Cub Cadet 936-0264

Flat Washer, .330 x .630 x .064

$6.99

$

In Stock, only 3 left!

0

44

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0
