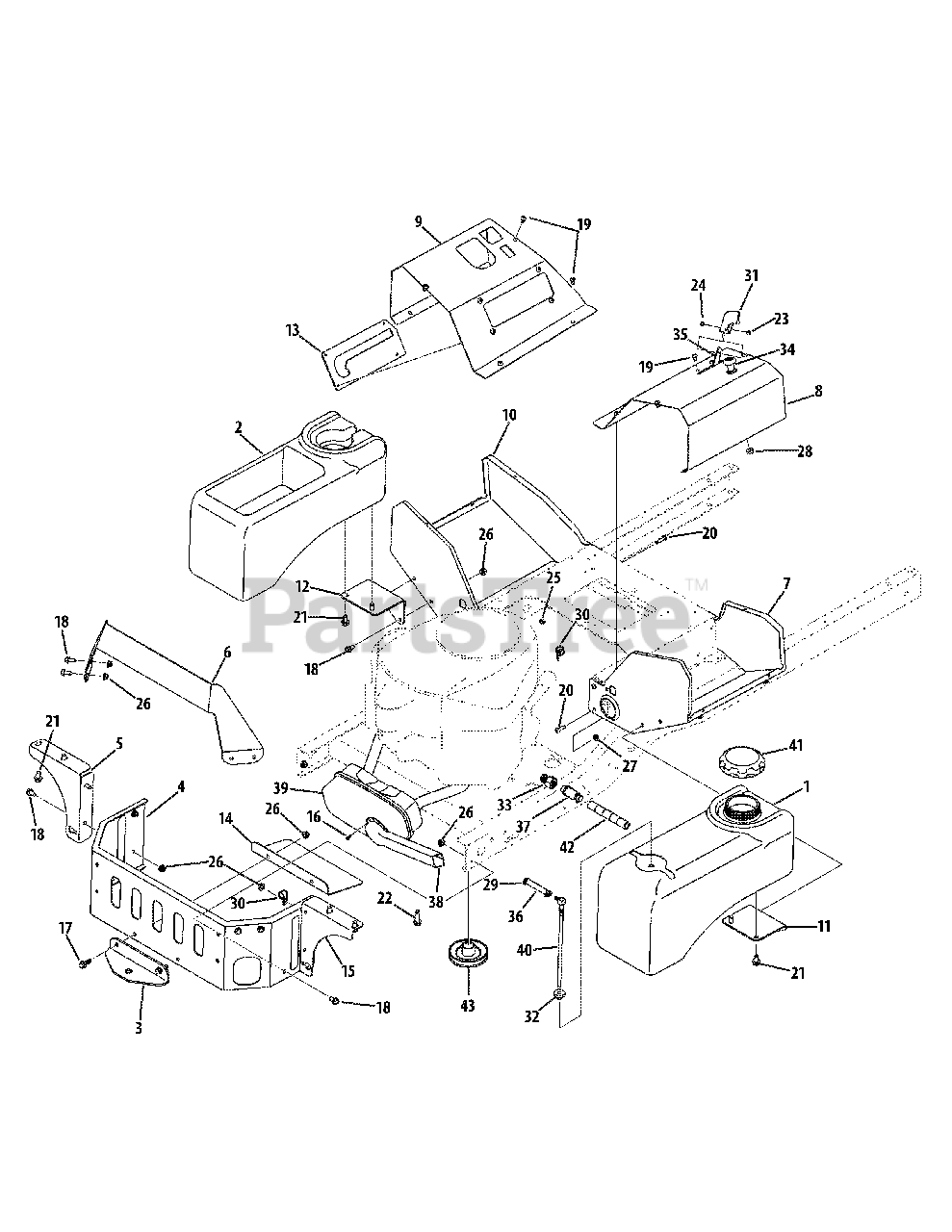

Z-Force S48 (17AI5BHB010) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2010) Engine Connections Parts Diagram

48" Z-Force S Zero-Turn Mower

Engine Connections Parts Diagram

  • Title

1

Cub Cadet 01004350

Fuel Tank

$

$

Not available

2

Cub Cadet 01008138P

Utility Bin

$198.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07543-0637

Hitch Bracket
(Superseded to 703-07543C-0637)

$46.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07570-0637

Bumper Bracket

$157.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07574-0637

Tank Support Bracket

$

$

Not available

6

Cub Cadet 703-07577-4021

Upper Bumper Bracket (60" Only)

$96.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-07583A-4021

RH Lower Console
(Superseded to 703-07583B-4021)

$87.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-07584-4021

RH Upper Console

$

$

Not available

9

Cub Cadet 703-07585-4021

LH Upper Console

$120.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-07588A-4021

LH Lower Console
(Superseded to 703-07588B-4021)

$87.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-07605A-0637

Right Tank Support Bracket

$

$

Not available

12

Cub Cadet 703-07610A-0637

Left Tank Support Bracket

$

$

Not available

13

Cub Cadet 703-07627-0637

Parking Brake Lock Bracket
(Superseded to 703-07627A-0637)

$

$

Not available

14

Cub Cadet 703-07658

Muffler Mount Bracket

$44.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-07674-0637

RH Fuel Tank Support Bracket

$

$

Not available

16

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-04048

Hex Flange, 5.16-18 x 1.0

$4.99

$

In Stock, Qty 7

0

18

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-05070

Screw, 1.4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet 710-05074

Screw, 1.4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0870

Hex Washer Screw, 3.8-16 x .625

$6.49

$

In Stock, only 1 left!

0

22

Cub Cadet 710-1315

Hex Washer Screw, 3.8-16 x 1.250

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3217

Machine Screw, #8-32 x0.375

$6.99

$

In Stock, Qty 7

0

24

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

25

Cub Cadet 712-0271

Sems Nut, 1.4-20

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-04064

Flange Lock Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 912-3005

Flange Lock Nut, 3.8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 726-0272

Clamp, 9.16

$7.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-06593

Throttle Knob

$9.49

$

In Stock, Qty 6

0

32

Cub Cadet 735-04065

Fuel Tank Bushing

$14.99

$

In Stock, only 1 left!

0

33

Cub Cadet 737-04138

Hex Fitting, 10 x M20

$25.99

$

In Stock, only 3 left!

0

34

Cub Cadet 746-04057

Choke Cable

$41.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 746-1086

Throttle Cable, 39.0 x .62
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-10349

Fuel Hose, 1.4

$9.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 751-10517A

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

38

Cub Cadet 751-11424

Long Muffler Deflector
(Superseded to 751-11424A)

$16.99

$

In Stock, only 2 left!

0

39

Cub Cadet 751-11471

Kawasaki Twin Muffler
(Superseded to 951-11471F)

$150.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 751-11581

Fuel Pick-Up Fitting

$25.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-3124E

Fuel Cap

$36.99

$

In Stock, only 1 left!

0

42

Cub Cadet 751-3141-14

Oil Drain Extension Hose

$11.99

$

In Stock, Qty 8

0

43

Cub Cadet 756-04415

Electric PTO Engine Pulley

$36.99

$

In Stock, only 1 left!
