Z-Force S48 (17AF5BHB210) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2011) Kohler SV715-3029 Engine Controls Parts Diagram

48" Z-Force S Zero-Turn Mower

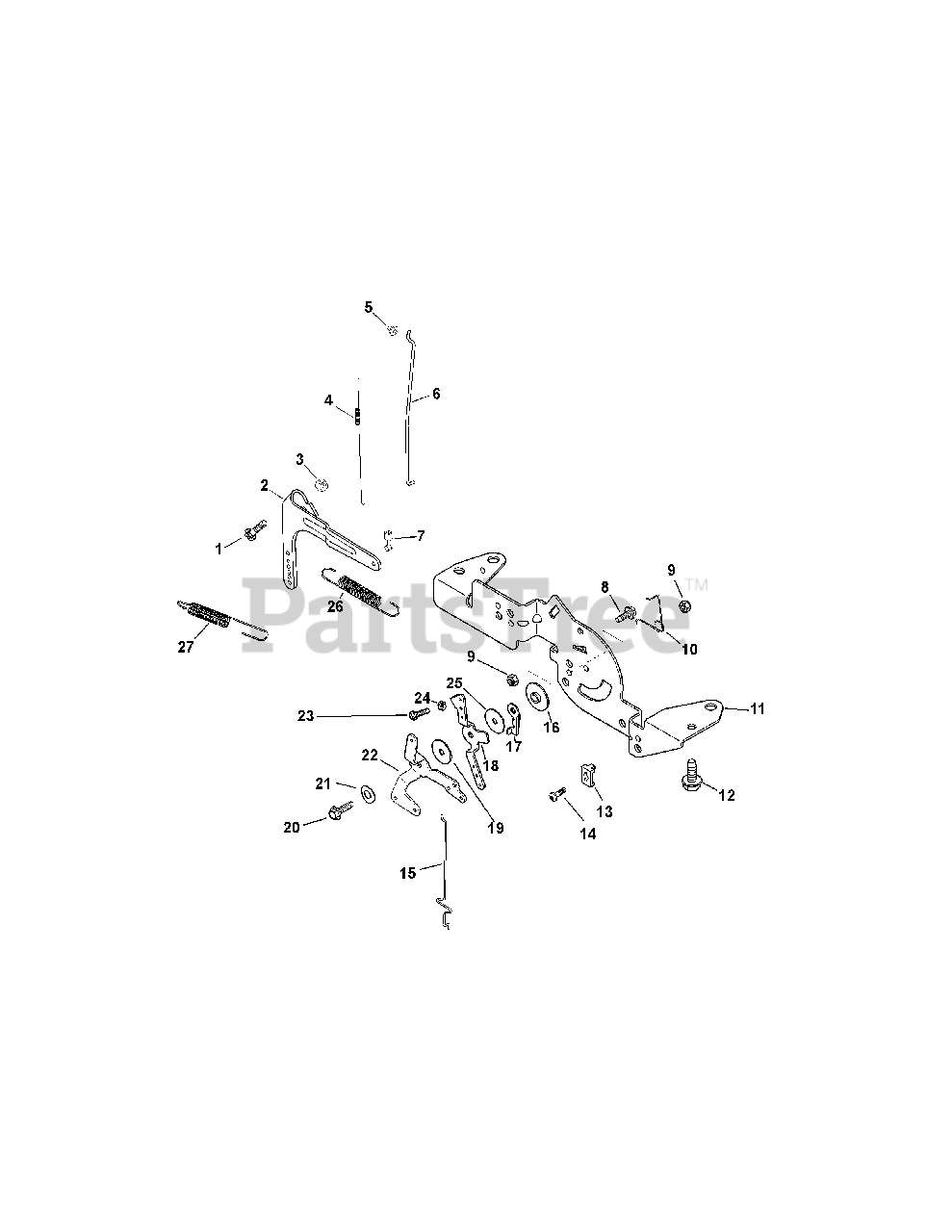

Kohler SV715-3029 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-24-211-03-S

Rd. Hd. Sq. Neck Bolt, M6 x 1.0 x 25

$2.49

$

In Stock, Qty 15

0

2

Cub Cadet KH-24-090-51-S

Governor Lever
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

Flg. Nut, M6 x 1.0

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet KH-24-089-01

Linkage Spring

$

$

Not available

5

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Throttle Linkage

$

$

Not available

7

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

8

Cub Cadet KH-M-545016-S

Screw, M5 x .8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-547050-S

Lock Nut, M5 x .8

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-089-03

Choke Return Spring

$

$

Not available

11

Cub Cadet KH-32-126-04-S

Control Bracket
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-M-645016-S

Flg. Thd. Frm. Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 15

0

13

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-24-086-43-S

Lbd. Thd. Frm. Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-079-22-S

Choke Linkage

$6.99

$

In Stock, Qty 7

0

16

Cub Cadet KH-24-112-27-S

Control Assembly Spacer

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-090-47-S

Throttle Actuator Lever

$2.99

$

In Stock, Qty 11

0

18

Cub Cadet KH-24-090-13

Throttle Control Lever

$

$

Not available

19

Cub Cadet KH-24-468-01

Flat Washer, 5.5MM

$

$

Not available

20

Cub Cadet KH-M-545020-S

Screw, M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

21

Cub Cadet KH-41-468-03

Spring Washer, 1/4"

$

$

Not available

22

$

$

Not available

23

Cub Cadet KH-M-403025

Screw, M4 x .7 x 25

$

$

Not available

24

$2.49

$

In Stock, Qty 5

0

25

Cub Cadet KH-24-468-20-S

Flat Washer, 5MM

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet KH-24-089-55-S

Governor Spring

$2.49

$

In Stock, Qty 6

0

27

Cub Cadet KH-24-089-18

Governor Spring

$

$

Not available
