Z-Force S48 (17AF5BHB056) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2011) Fuel Tanks Parts Diagram

48" Z-Force S Zero-Turn Mower

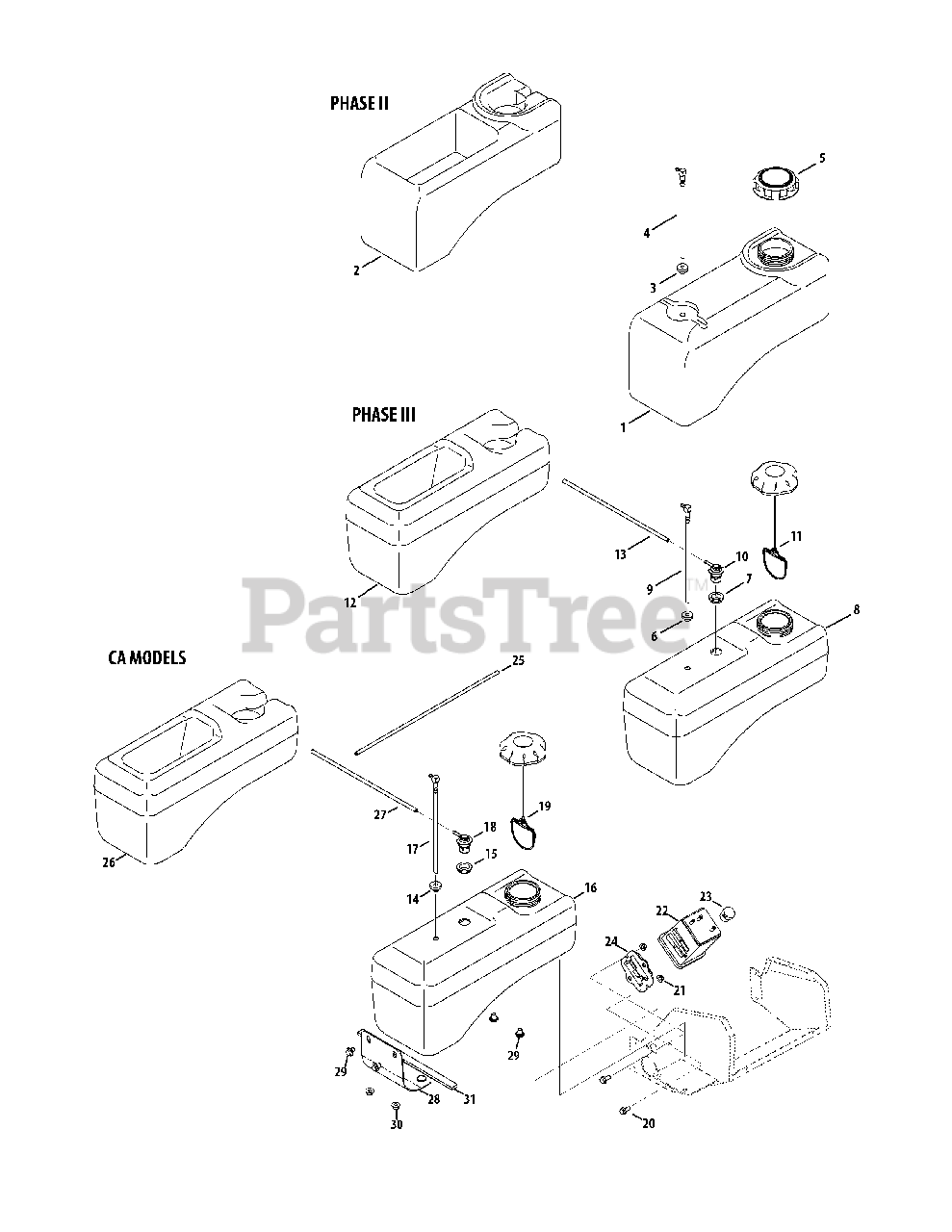

Fuel Tanks Parts Diagram

  • Title

1

Cub Cadet 01004350

Fuel Tank

Note: PHASE II - Units produced UP TO 12/20/2010

$

$

Not available

2

Cub Cadet 01008138P

Utility Bin

Note: PHASE II - Units produced UP TO 12/20/2010

$198.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 735-04065

Fuel Tank Bushing

Note: PHASE II - Units produced UP TO 12/20/2010

$14.99

$

In Stock, only 1 left!

0

4

Cub Cadet 751-11581

Fuel Pick-Up Fitting

Note: PHASE II - Units produced UP TO 12/20/2010

$25.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-3124E

Fuel Cap

Note: PHASE II - Units produced UP TO 12/20/2010

$36.99

$

In Stock, only 1 left!

0

6

Cub Cadet 735-04065

Fuel Tank Bushing

Note: PHASE III - Units produced AFTER 12/20/2010

$14.99

$

In Stock, only 1 left!

0

7

Cub Cadet 735-04081

Rubber Grommet

Note: PHASE III - Units produced AFTER 12/20/2010

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 951-04287

Fuel Tank
(Superseded to 951-04287A)

Note: PHASE III - Units produced AFTER 12/20/2010

$

$

Not available

9

Cub Cadet 751-11986A

Fuel Pickup Fitting
(Superseded to 751-11986B)

Note: PHASE III - Units produced AFTER 12/20/2010

$

$

Not available

10

Cub Cadet 751-12118

Rollover Valve

Note: PHASE III - Units produced AFTER 12/20/2010

$35.99

$

In Stock, only 2 left!

0

11

Cub Cadet 751-12193A

Fuel Cap
(Superseded to 951-12193A)

Note: PHASE III - Units produced AFTER 12/20/2010

$57.99

$

In Stock, only 4 left!

0

12

Cub Cadet 951-11696

Utility Bin
(Superseded to 759-04309)

Note: PHASE III - Units produced AFTER 12/20/2010

$133.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751-12089-51

Vent Hose

Note: PHASE III - Units produced AFTER 12/20/2010

$16.99

$

In Stock, only 1 left!

0

14

Cub Cadet 735-04065

Fuel Tank Bushing

Note: CALIFORNIA MODELS

$14.99

$

In Stock, only 1 left!

0

15

Cub Cadet 735-04081

Rubber Grommet

Note: CALIFORNIA MODELS

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 951-04318A

Fuel Tank

Note: CALIFORNIA MODELS

$

$

Not available

17

Cub Cadet 751-11986A

Fuel Pickup Fitting
(Superseded to 751-11986B)

Note: CALIFORNIA MODELS

$

$

Not available

18

Cub Cadet 751-12118

Rollover Valve

Note: CALIFORNIA MODELS

$35.99

$

In Stock, only 2 left!

0

19

Cub Cadet 751-12193A

Fuel Cap
(Superseded to 951-12193A)

Note: CALIFORNIA MODELS

$57.99

$

In Stock, only 4 left!

0

20

Cub Cadet 710-04043

Hex Flange Screw, 5/16-18

Note: CALIFORNIA MODELS

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

Note: CALIFORNIA MODELS

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 951-10589

Carbon Cannister

Note: CALIFORNIA MODELS

$72.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-10590

Cannister Filter Vent

Note: CALIFORNIA MODELS

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 951-10610

Cannister Adapter Bracket

Note: CALIFORNIA MODELS

$23.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751-10750

Low Perm Fuel Host 7/32 Yellow

Note: CALIFORNIA MODELS

$1.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-11696

Utility Bin
(Superseded to 759-04309)

Note: CALIFORNIA MODELS

$133.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 751-12089-51

Vent Hose 3/16 Red

Note: CALIFORNIA MODELS

$16.99

$

In Stock, only 1 left!

0

28

Cub Cadet 603-04912-0637

Bracket, Fuel Tank

Note: CALIFORNIA MODELS

$44.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-05361

Screw, Hex M10-1.5 x 12.7

Note: CALIFORNIA MODELS

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-04065

Nut, Flange Lock 3/8-16

Note: CALIFORNIA MODELS

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 721-04382

Tape, Foam .75" x .25"

Note: CALIFORNIA MODELS

$6.99

$

Usually ships in 3-6 days

0
