Z-Force Pro 54 KH (53BH3AGT050) - Cub Cadet 54" Z-Force Zero-Turn Mower, 23hp Kohler Body Assembly Parts Diagram

54" Z-Force Zero-Turn Mower, 23hp Kohler

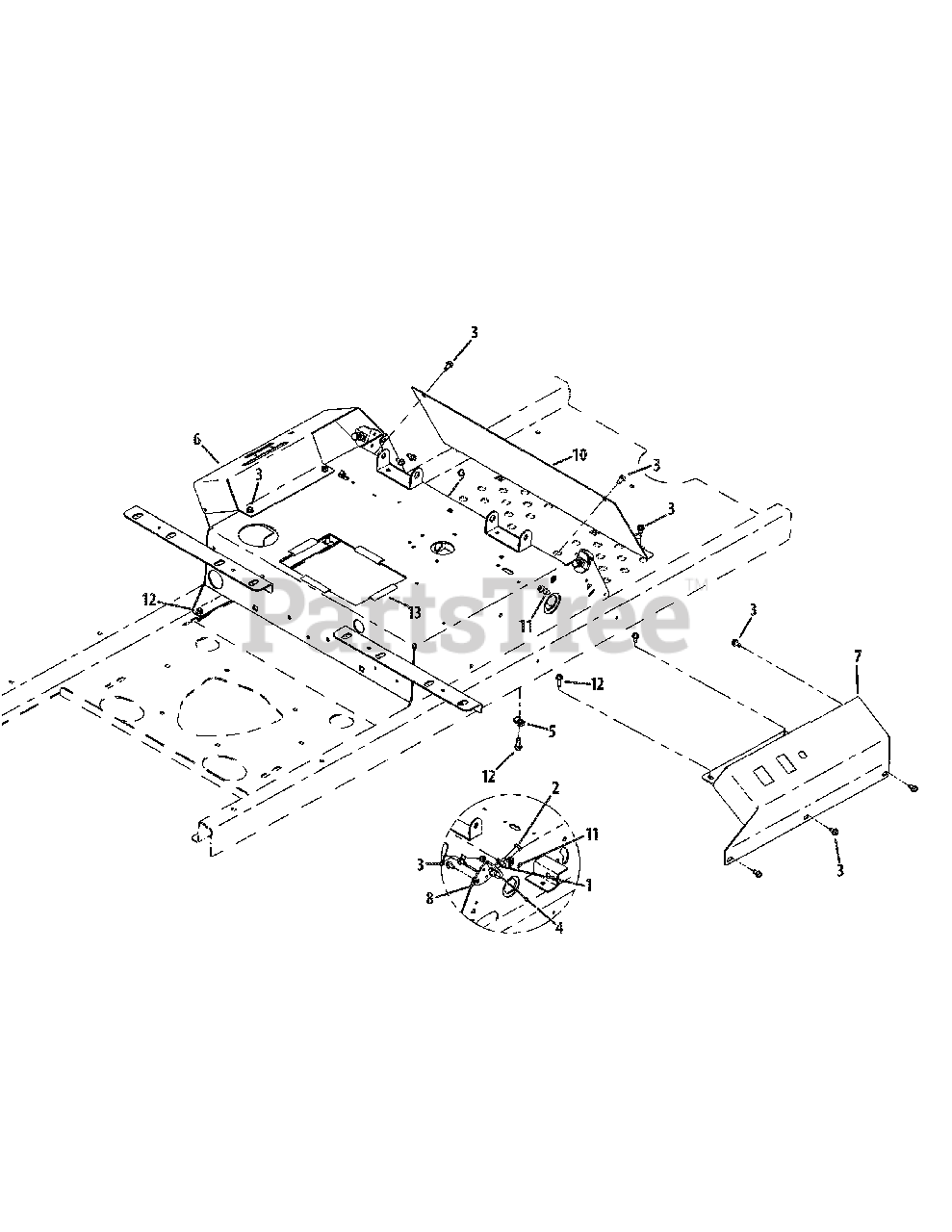

Body Assembly Parts Diagram

  • Title

1

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

2

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1.4

$5.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0599

Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 02002735-4021

Left Hand Control Console

$

$

Not available

7

Cub Cadet 02002736-4021

Right Hand Control Console

$

$

Not available

8

Cub Cadet 02002761

Forward/Reverse Stop Bracket

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 680-00048-4021

Control Housing Weldment

$442.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-07000-4021

Front Panel

$55.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04484

Self-Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0642

Self-Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0
