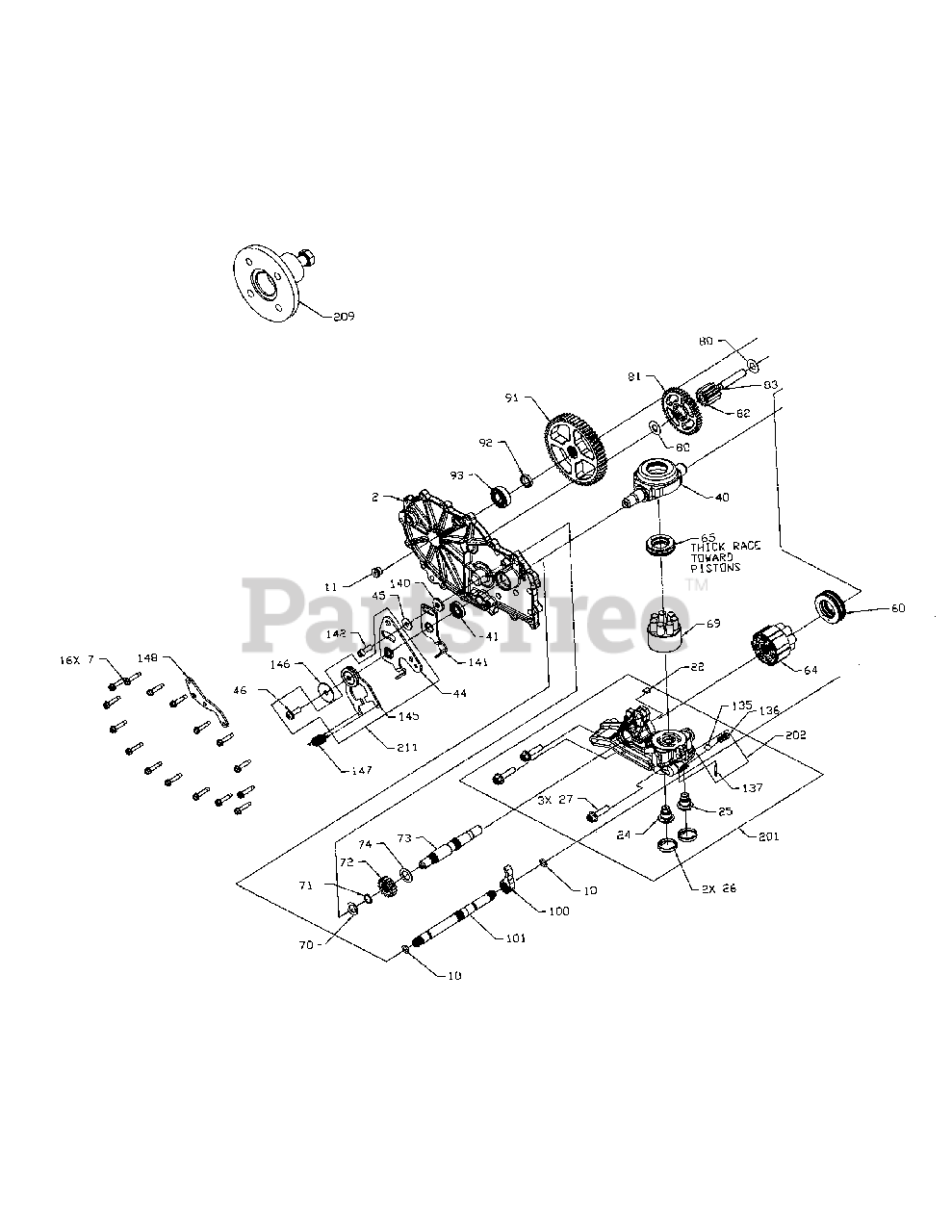

Z-Force Pro 48 KH (53BH3AGN050) - Cub Cadet 48" Z-Force Zero-Turn Mower, 22hp Kohler Transmission - Left Hand Lower Parts Diagram

48" Z-Force Zero-Turn Mower, 22hp Kohler

Transmission - Left Hand Lower Parts Diagram

  • Title

1

Cub Cadet HG-71420

Kit, Housing Main LH Chrg (includes

$

$

Not available

1

Cub Cadet n/a

Housing, Main LH Chrg

$

$

Currently unavailable

1

Cub Cadet n/a

Bushing .624 x .719 x .562

$

$

Currently unavailable

1

Cub Cadet n/a

Brg, Jrnl .86 x .98 x .79

$

$

Currently unavailable

1

Cub Cadet n/a

Pin .25 x .375

$

$

Currently unavailable

2

Cub Cadet HG-71573

Kit, Cover Side LH Cntl (includes

$

$

Not available

2

Cub Cadet n/a

Cover, Side LH Cntl

$

$

Currently unavailable

2

Cub Cadet n/a

Bushing .624 x .719 x .562

$

$

Currently unavailable

2

Cub Cadet n/a

Brg, Jrnl .86 x .98 x .79

$

$

Currently unavailable

7

Cub Cadet HG-53246

HFHCS 1/4-20 x 1.25''

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-51804

O-Ring 111.103 x .424

$3.49

$

In Stock, only 1 left!

0

11

Cub Cadet HG-9005110-5600

Plug 9/16/18 (Metal)

$20.99

$

Usually ships in 3-6 days

0

20

Cub Cadet n/a

Center Section, LH Chrg

$

$

Currently unavailable

22

Cub Cadet HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-52114P

Filter, Oil

$32.99

$

Usually ships in 3-6 days

0

24

Cub Cadet n/a

Shock Valve

$

$

Currently unavailable

26

Cub Cadet HG-52162

Seal, Plug 1.250 x .250

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet HG-52137

HFHCS 3/8-16 x 1.5 (Patch)

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-51626

Seal, Lip .375 x .75 x .25
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51628

Ring, Ret .375 External

$4.49

$

In Stock, Qty 15

0

32

Cub Cadet HG-52136

Rod, Bypass

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet HG-51627

Ring, Ret .750 Internal

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-52370

Arm, Bypass

$9.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-51630

Ring, Rtng .375 Ext

$3.99

$

In Stock, only 1 left!

0

40

Cub Cadet HG-51048

Trunnion, Swashplate

$88.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51140

Seal, Lip 18 x 32 x 7

$9.99

$

Usually ships in 3-6 days

0

44

Cub Cadet n/a

Arm, Control

Note: (furnish HG-71592)

$

$

Currently unavailable

45

Cub Cadet 736-0371

Washer .34 x .88 x .06

$4.49

$

In Stock, only 3 left!

0

46

Cub Cadet HG-51812

TWHCS 5/16-24 x 1.00 (Patch)

$4.49

$

Usually ships in 3-6 days

0

52

Cub Cadet HG-52155

Shaft, Input

$159.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-50315

Brg, Ball 17 x 40 x 12 Open 6203

$18.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-2000022

Ring, Ret Wire .561 ID

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet HG-50951

Washer 1.23 x 1.56 x .04

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-51161

Seal, Lip 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-50329

Ring, Ret 2.06 Internal

$11.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-51462

Bearing, Thrust
(Superseded to HG-51462P)

$33.99

$

Usually ships in 3-6 days

0

64

Cub Cadet HG-71579

Cylinder Block Assembly 16cc
(Superseded to HG-72882)

$140.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-50551P

Bearing, Thrust Ball 30 x 52 x 13

$29.99

$

Usually ships in 3-6 days

0

69

Cub Cadet HG-70723

Block 7 Piston Assembly

$228.99

$

Usually ships in 3-6 days

0

70

Cub Cadet HG-44371

Washer .63 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

71

Cub Cadet HG-44145

Ring, Ret 62 External

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet HG-52149

Gear, 16T

$6.49

$

Usually ships in 3-6 days

0

73

Cub Cadet HG-52150

Shaft, Motor

$81.99

$

Usually ships in 3-6 days

0

74

Cub Cadet HG-51069

Washer .72 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

80

Cub Cadet HG-50132

Washer .5 x 1.0 x .03

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-52148

Gear, 43T

$25.99

$

Usually ships in 3-6 days

0

82

Cub Cadet HG-52583

Gear, 11T

$13.99

$

Usually ships in 3-6 days

0

83

Cub Cadet HG-51083

Jack Shaft (Pin)

$33.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-50859

Ring, Ret 2.06 Internal

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet HG-52108

Gear, 54T

$73.99

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-52161

Spacer, .750 x 1.000 x .257
(Superseded to HG-53336)

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet HG-44121P

Bearing Ball .75 x 40 x 12

$56.99

$

In Stock, only 2 left!

0

94

Cub Cadet n/a

Shaft, Axle

Note: (furnish HG-71569)

$

$

Currently unavailable

95

Cub Cadet HG-53656

Bearing Ball 1.0 x 52 x 15 Open 6205M

$17.99

$

In Stock, only 2 left!

0

95

Cub Cadet HG-53514

Spacer

Note: (not shown)

$4.99

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-53699

Seal, Lip TC4

$9.49

$

In Stock, only 2 left!

0

97

Cub Cadet n/a

Hub, 4 Stud (3.56 Taper)

Note: (furnish HG-71405)

$

$

Currently unavailable

99

Cub Cadet 912-3018

Nut, Hex Lock 3/4-16
(Superseded to 712-3018)

$

$

Not available

100

Cub Cadet HG-52766

Pawl, Brake

$8.99

$

Usually ships in 3-6 days

0

101

Cub Cadet HG-52640

Shaft, Brake

$

$

Not available

102

Cub Cadet HG-52639

Handle, Brake

$13.99

$

Usually ships in 3-6 days

0

103

Cub Cadet HG-52027

Clip, Retaining
(Superseded to HG-53019)

$2.49

$

In Stock, only 3 left!

0

105

Cub Cadet HG-50752

HFHCS 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

106

Cub Cadet HG-52247

Guard, Filter - LH
(Superseded to HG-53644)

$17.99

$

Usually ships in 3-6 days

0

109

Cub Cadet n/a

Spacer, .91 x 1.02 x .625

Note: (furnish HG-71569)

$

$

Currently unavailable

111

Cub Cadet HG-71393

Fitting, Str 9/16-18 SAE .5 Barb

$47.99

$

Usually ships in 3-6 days

0

120

Cub Cadet HG-52735

Fan, 7'', 10 Blade

$

$

Not available

121

Cub Cadet n/a

Pulley 4.5 Inch

Note: (furnish HG-71699 Kit, Fan/ Pulley)

$

$

Currently unavailable

122

Cub Cadet 912-0346

Nut, Hex Lock 1/2-20 Nylon
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

123

Cub Cadet HG-50752

HFHCS 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

130

Cub Cadet HG-52157

Tube, Connecting
(Superseded to HG-54501)

$4.99

$

In Stock, Qty 14

0

131

Cub Cadet HG-50273

Gerotor Assembly (1.6 cc/rev)

$36.99

$

Usually ships in 3-6 days

0

132

Cub Cadet HG-52250

O-Ring, -137, 0.103 x 2.050

$3.99

$

Usually ships in 3-6 days

0

133

Cub Cadet HG-53738

Cover, Charge Pump

$70.99

$

Usually ships in 3-6 days

0

134

Cub Cadet HG-50752

HFHCS 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

135

Cub Cadet n/a

Ball, Steel 7/16''

Note: (furnish HG-71566

$

$

Currently unavailable

135

Cub Cadet n/a

Ball, Steel 7/16''

Note: (furnish HG-71436

$

$

Currently unavailable

136

Cub Cadet n/a

Spring relief .42 x .250

Note: (furnish HG-71566

$

$

Currently unavailable

136

Cub Cadet n/a

Spring relief .42 x .250

Note: (furnish HG-71436

$

$

Currently unavailable

137

Cub Cadet n/a

Pin, Spring .125 x .875

Note: (furnish HG-71566

$

$

Currently unavailable

137

Cub Cadet n/a

Pin, Spring .125 x .875

Note: (furnish HG-71436

$

$

Currently unavailable

140

Cub Cadet HG-52527

Spacer, .320 x 1.005 x .179
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

141

Cub Cadet HG-51946

Arm, Neutral Left

$13.99

$

In Stock, only 2 left!

0

142

Cub Cadet HG-71341

SHCS 5/16-24 x 1 (Patch)

$9.49

$

Usually ships in 3-6 days

0

145

Cub Cadet n/a

Assembly, RTN

Note: (furnish HG-71588

$

$

Currently unavailable

146

Cub Cadet HG-51950

Washer, .343 x 1.500 x .062
(Superseded to HG-54244)

$6.49

$

Usually ships in 3-6 days

0

147

Cub Cadet HG-52401

Spring, Extension .57 x 2''

$4.99

$

In Stock, only 2 left!

0

148

Cub Cadet HG-53046

Bracket Damper

$

$

Not available

200

Cub Cadet HG-71410

Kit, Seal
(Superseded to HG-73107)

Note: (includes 10, 26, 30, 31, 33, 35, 41, 46, 54, 56, 57, 71, 90, 96, 103, 130, 132)

$72.99

$

Usually ships in 3-6 days

0

201

Cub Cadet HG-71566

Kit, Center Section, LH Chrg

Note: (includes 20, 22, 24, 26, 27, 135, 136, 137)

$398.99

$

Usually ships in 3-6 days

0

202

Cub Cadet HG-71436

Kit, Chrg Relief

Note: (includes 135, 136, 137)

$10.99

$

Usually ships in 3-6 days

0

203

Cub Cadet HG-72274

Kit, Charge

Note: (includes 131, 132, 133, 134)

$114.99

$

Usually ships in 3-6 days

0

206

Cub Cadet HG-71405P

Kit, Hub 4 Bolt
(Superseded to HG-71405)

Note: (includes 99, 97)

$121.99

$

Usually ships in 3-6 days

0

207

Cub Cadet HG-71699

Kit, Fan/ Pulley
(Superseded to HG-72134)

Note: (includes 120, 121, 122, 123)

$63.99

$

In Stock, Qty 6

0

209

Cub Cadet HG-71241

Hub Puller, 4 Bolt
(Superseded to HG-72320)

$231.99

$

Usually ships in 3-6 days

0

210

Cub Cadet HG-71442

Kit, Input Shaft
(Superseded to HG-73047)

Note: (includes 52, 53, 54)

$88.99

$

Usually ships in 3-6 days

0

211

Cub Cadet HG-71592

Kit, RTN Bidirectional LH

Note: (includes 44, 46, 145)

$48.99

$

In Stock, only 2 left!

0

212

Cub Cadet HG-71569

Kit, Axle Shaft

Note: (includes 94, 109)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-3120

Lubricant, FLUID-DRIVE SYSTEM Quart
(Superseded to 490-000-C051)

Note: (70.3 oz, not shown)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet HG-50928

Sealant

Note: (Not shown)

$103.99

$

In Stock, Qty 8

0
