Z-Force Pro 48 KH (53BH3AGN050) - Cub Cadet 48" Z-Force Zero-Turn Mower, 22hp Kohler Steering Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, 22hp Kohler

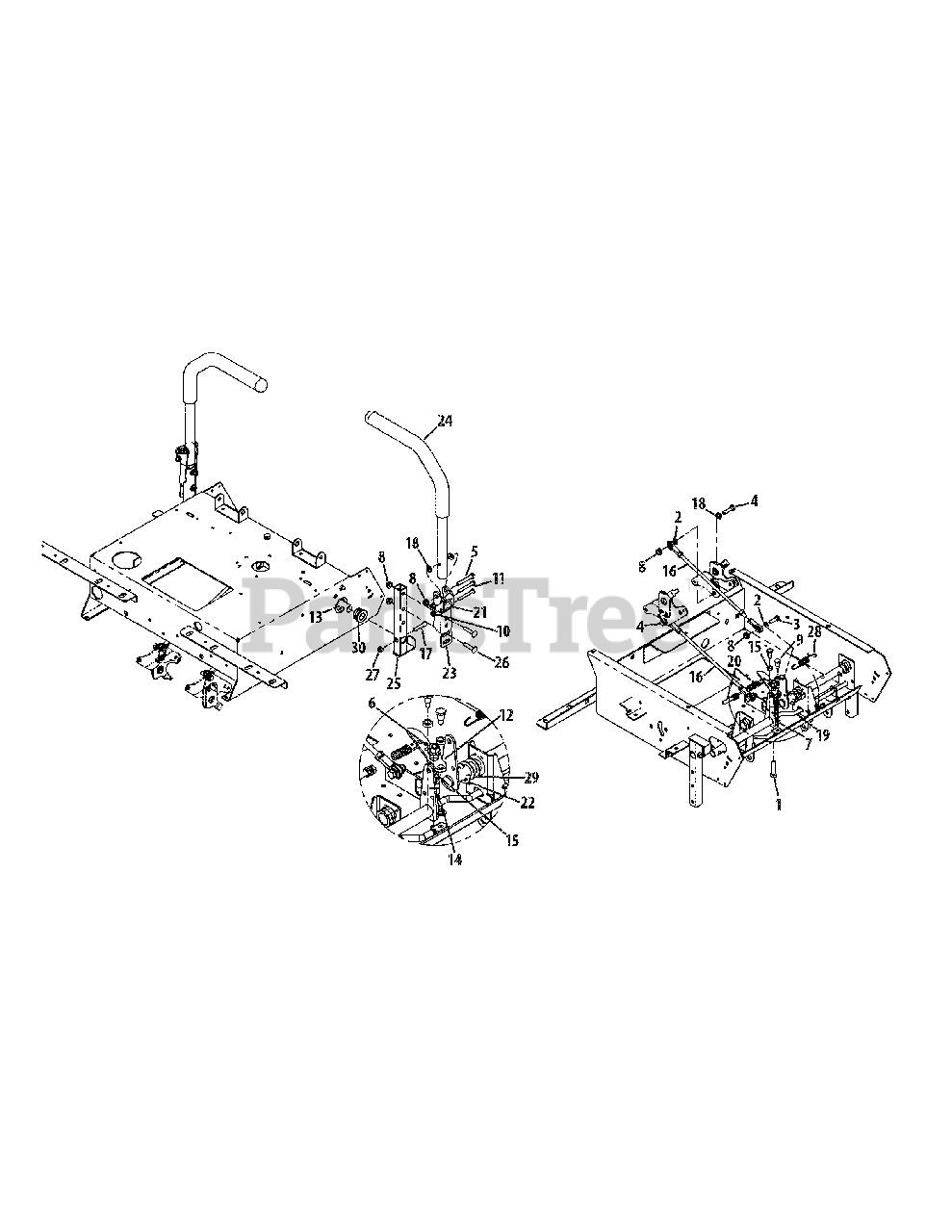

Steering Assembly Parts Diagram

  • Title

1

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, only 3 left!

0

2

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 00012180

Hex Head Cap Screw, 5/16-18 x 1.00

$

$

Not available

4

Cub Cadet 00013116

Hex Screw, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

6

Cub Cadet 00022560

Flange Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 936-0463

Flat Washer, 1.4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 712-3004A

Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01001919

Shoulder Screw, 1/4-28
(Superseded to 938-0826)

$12.99

$

In Stock, Qty 5

0

10

Cub Cadet 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01006898

Hex Cap Screw, 1/4-20 x 2.00

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 02002684

Brake Lever Plate

$

$

Not available

13

Cub Cadet 02002723

Steering Input Shaft Assembly

$67.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02002844

Spacer, .385 x .625 x .869

$

$

Not available

15

Cub Cadet 02002885

Spacer, .380 x .563 x .196

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002992

Steering Link Rod

$

$

Not available

17

Cub Cadet 02002994

Socket Head Capscrew, 5/16-18 x 1.25

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02003419

Bushing, .310 x .172 x .688 x .06

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 02003560

Control Lock Rod

$

$

Not available

20

Cub Cadet 02003568

Control Cable Lock Out

$51.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02003644

Spacer, .25 x .38 x 1.13

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 02003716

E-Clip Retainer Ring
(Superseded to 716-0136)

$8.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003853-0637

Lapbar Pivot Bracket

$32.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02003855

Lapbar Handle/Grip Assembly

$123.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 680-00050-0637

Pivot Bracket Weldment

$61.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

27

Cub Cadet 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 732-04610

Extension Spring, .544 x 3.35

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 936-0287

Flat Washer, .793 x 1.24 x .060
(Superseded to 736-0287)

$

$

Not available

30

Cub Cadet 941-0598

Hex Flange Bearing, .752

$12.99

$

In Stock, Qty 20+

0
