Z-Force Pro 48 KH (53BH3AGN050) - Cub Cadet 48" Z-Force Zero-Turn Mower, 22hp Kohler Seat Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, 22hp Kohler

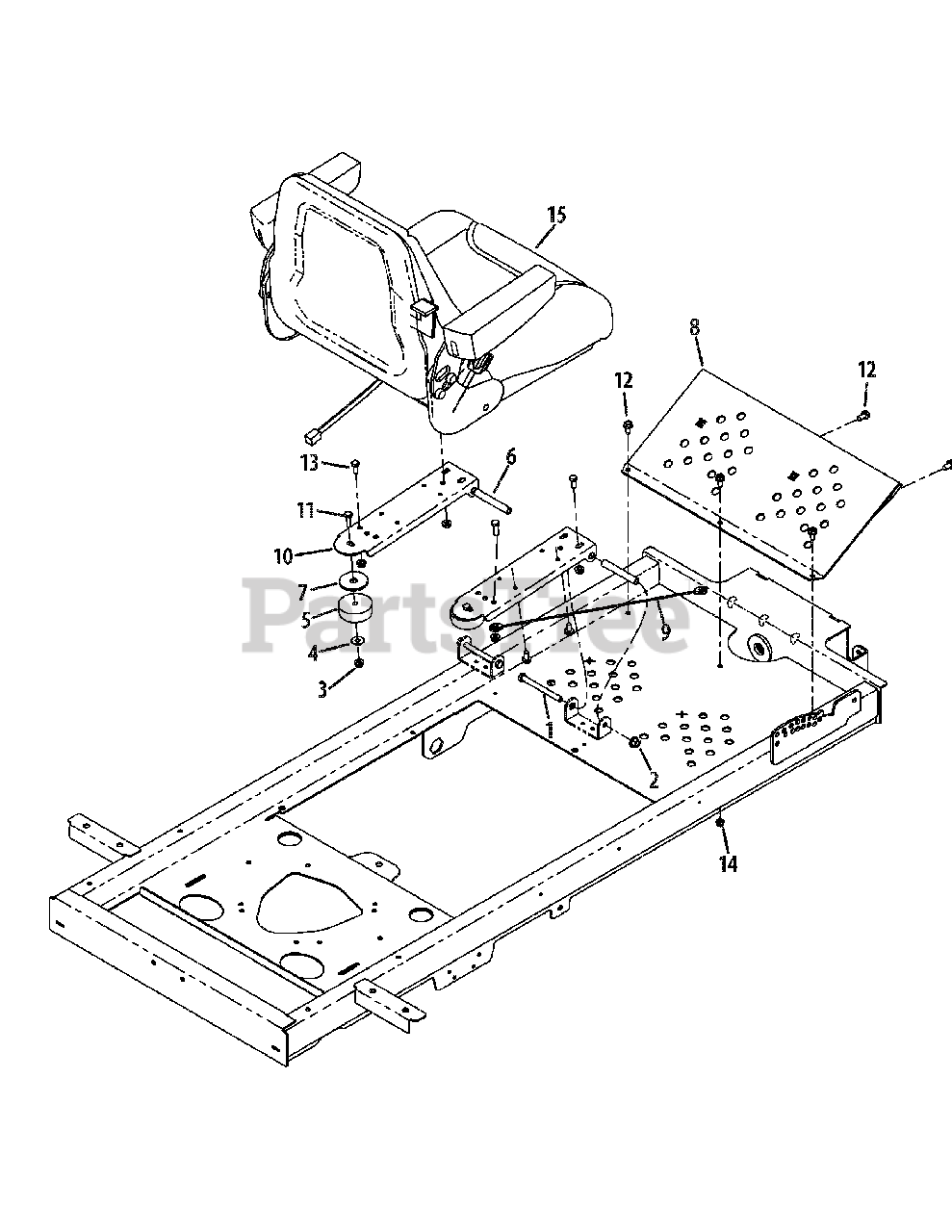

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00011925

Hex Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

2

Cub Cadet 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3004A

Flange Counterlock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 936-0425

Bell Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

5

Cub Cadet 01002753

Grommet, 2.5 x 1.0
(Superseded to 735-04286)

$8.99

$

In Stock, Qty 14

0

6

Cub Cadet 01009872

Spacer, .370 x .500 x 3.45

$17.99

$

In Stock, only 2 left!

0

7

Cub Cadet 02001098

Washer, .53 x 2.13 x .134

$

$

Not available

8

Cub Cadet 02002960-0637

Foot Rest Bracket

$

$

Not available

9

Cub Cadet 02004062P

Cable Support, 16.16

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-06691-0637

Seat Mount Bracket

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 757-04138

Suspension Seat

Note: NLA

$

$

Not available
