Z-Force LZ60 (53ANDAGD050) - Cub Cadet 60" Z-Force Zero-Turn Mower (2015) Operators Platform Parts Diagram

60" Z-Force Zero-Turn Mower

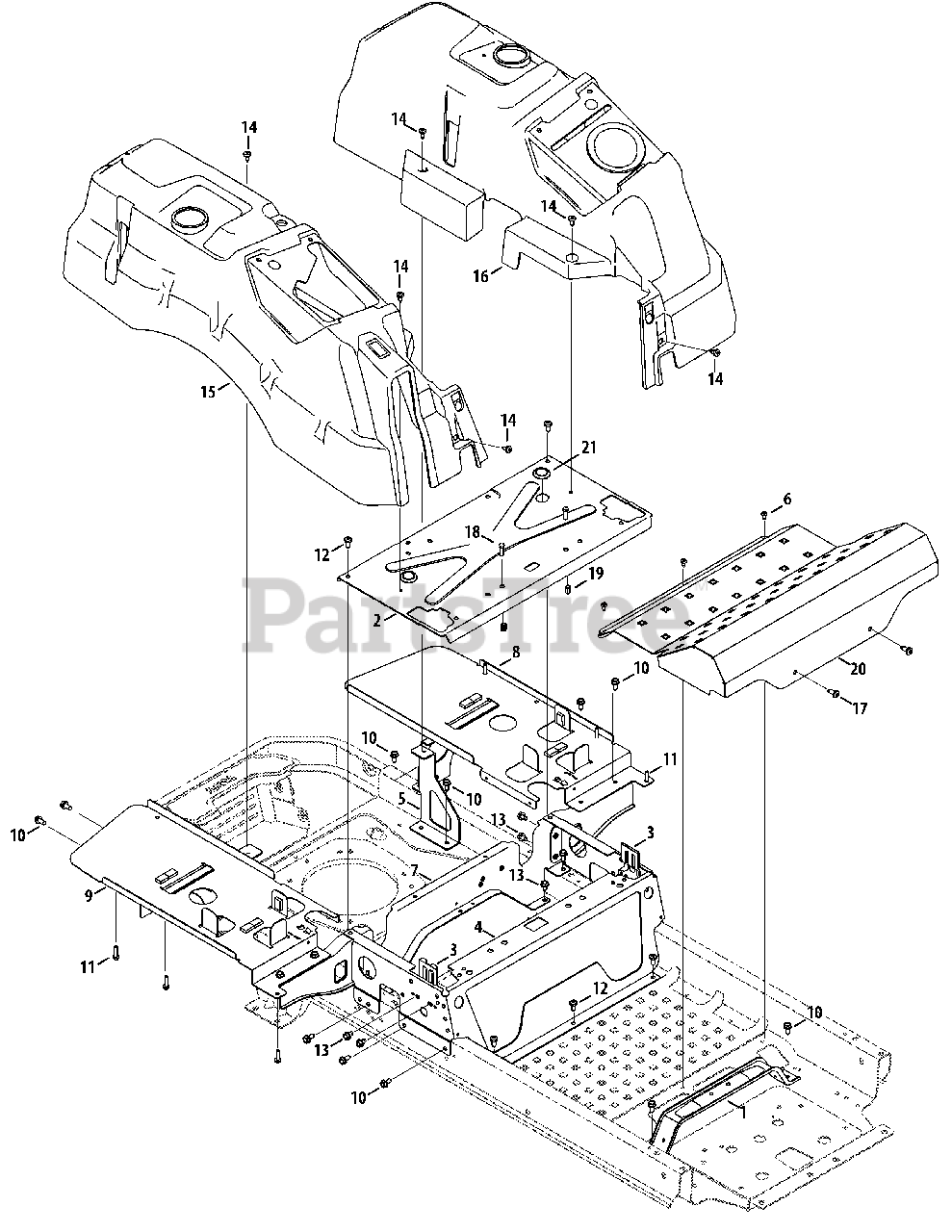

Operators Platform Parts Diagram

  • Title
1

Cub Cadet 703-08620A-0637

Steering Support Bracket

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09045D-0637

Seatbox Plate
(Superseded to 703-09045J-0637)

$45.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09211A-0637

Lapbar Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09320-0637

Seat Frame
(Superseded to 703-09320F-0637)

$94.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09326A-0637

Rear Support Bracket, LH

$32.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09330A-0637

Rear Support Bracket, RH

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04483

Screw, 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09332A-0637

Rear Seatbox Brace
(Superseded to 703-11179)

$47.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09404A-0637

Tank Support Plate, LH

$82.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09775-0637

Tank Support Plate, RH

$82.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

13

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

15

Cub Cadet 931-09529

RH Console

$116.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-09543

LH Console

$116.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-1611B

Screw, 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

19

Cub Cadet 728-04068

Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 603-05094A-4021

Floor Board, Fab
(Superseded to 603-05094B-4021)

$212.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-3045A

Button Plug

$4.99

$

In Stock, Qty 7

0
