Z-Force LZ60 (53ANDAGD050) - Cub Cadet 60" Z-Force Zero-Turn Mower (2015) Kohler CV732-3015 Oil Pan & Lubrication Parts Diagram

60" Z-Force Zero-Turn Mower

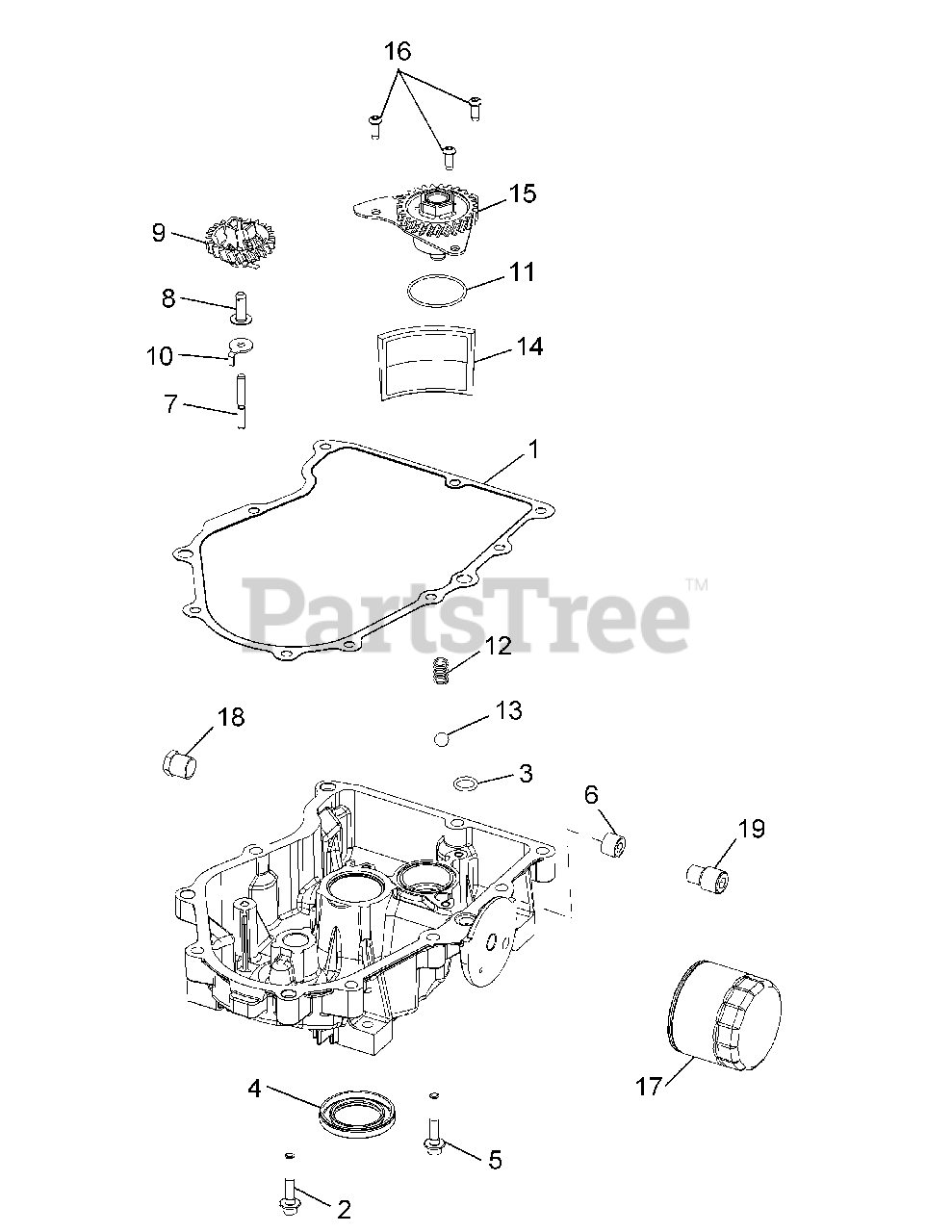

Kohler CV732-3015 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-041-66-S

Oil Pan Gasket

$25.99

$

In Stock, Qty 18

0

2

Cub Cadet KH-24-086-17-S

Flange Screw, M8 x 1.25 x .45

$2.49

$

In Stock, Qty 7

0

3

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

4

Cub Cadet KH-25-032-06-S

Oil Seal

$10.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-25-086-17-S

Screw

$

$

Not available

6

Cub Cadet KH-25-139-62-S

Pipe Plug, 3/8

$3.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

8

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

9

Cub Cadet KH-24-043-12

Governor Gear Kit w/Pin

$

$

Not available

10

Cub Cadet KH-24-448-02-S

Locking Tab

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-153-05

O-Ring (1.78" Dia.)

$

$

Not available

12

Cub Cadet KH-24-089-74-S

Compression Spring

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-25-194-03-S

Pressure Relief Ball

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-32-162-06-S

Oil Screen

$5.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-393-71-S

Oil Pump Assembly
(Superseded to KH-24-393-89-S)

$29.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-086-414-S

Button Head Screw

$

$

Not available

17

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-52-139-02

Pipe Plug, 3/8

$

$

Not available

19

Cub Cadet KH-24-136-01

Oil Filter Nipple
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet KH-24-199-35-S

Oil Pan Assembly Kit (Not Shown)
(Superseded to 24 199 35-S)

$337.99

$

In Stock, only 1 left!

0
